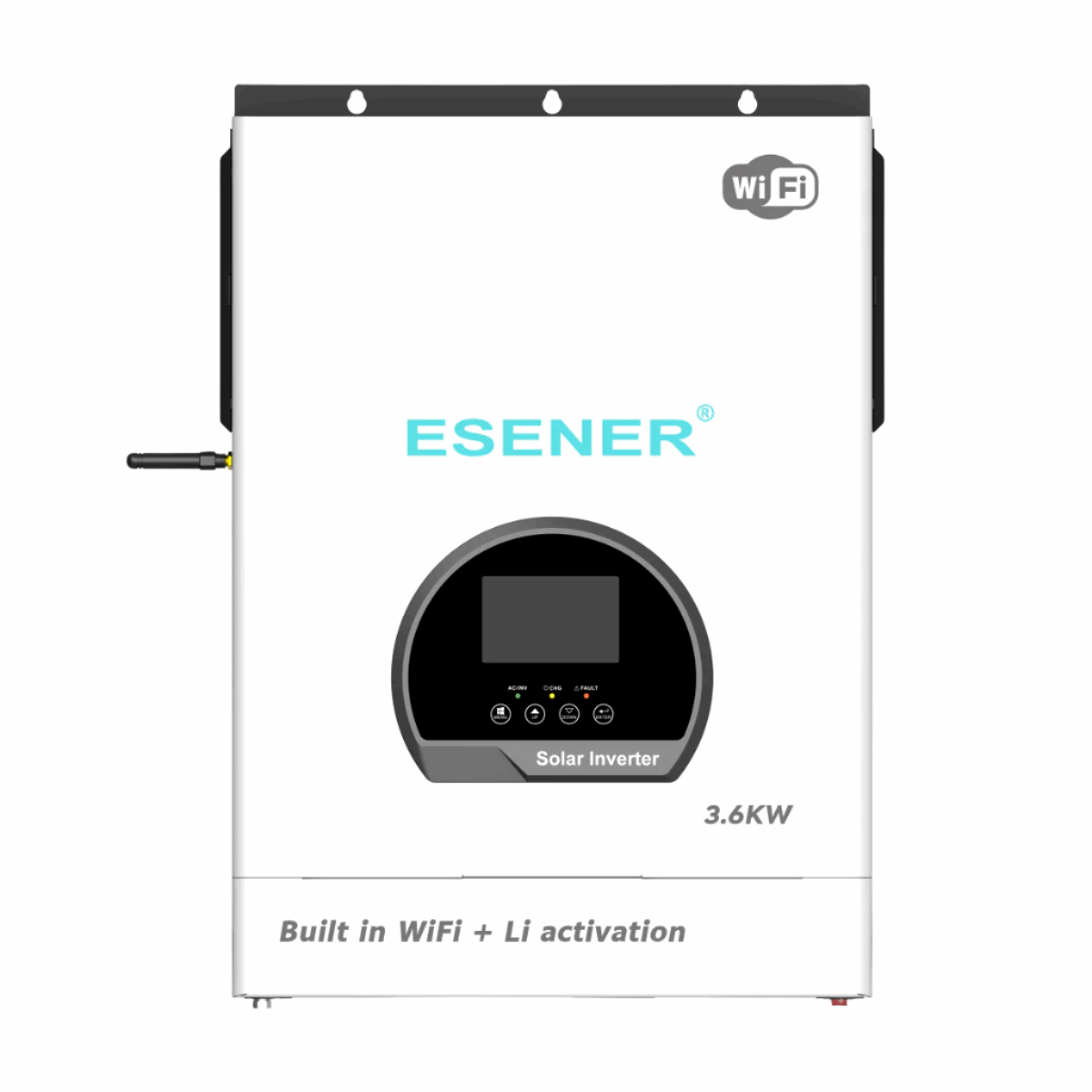

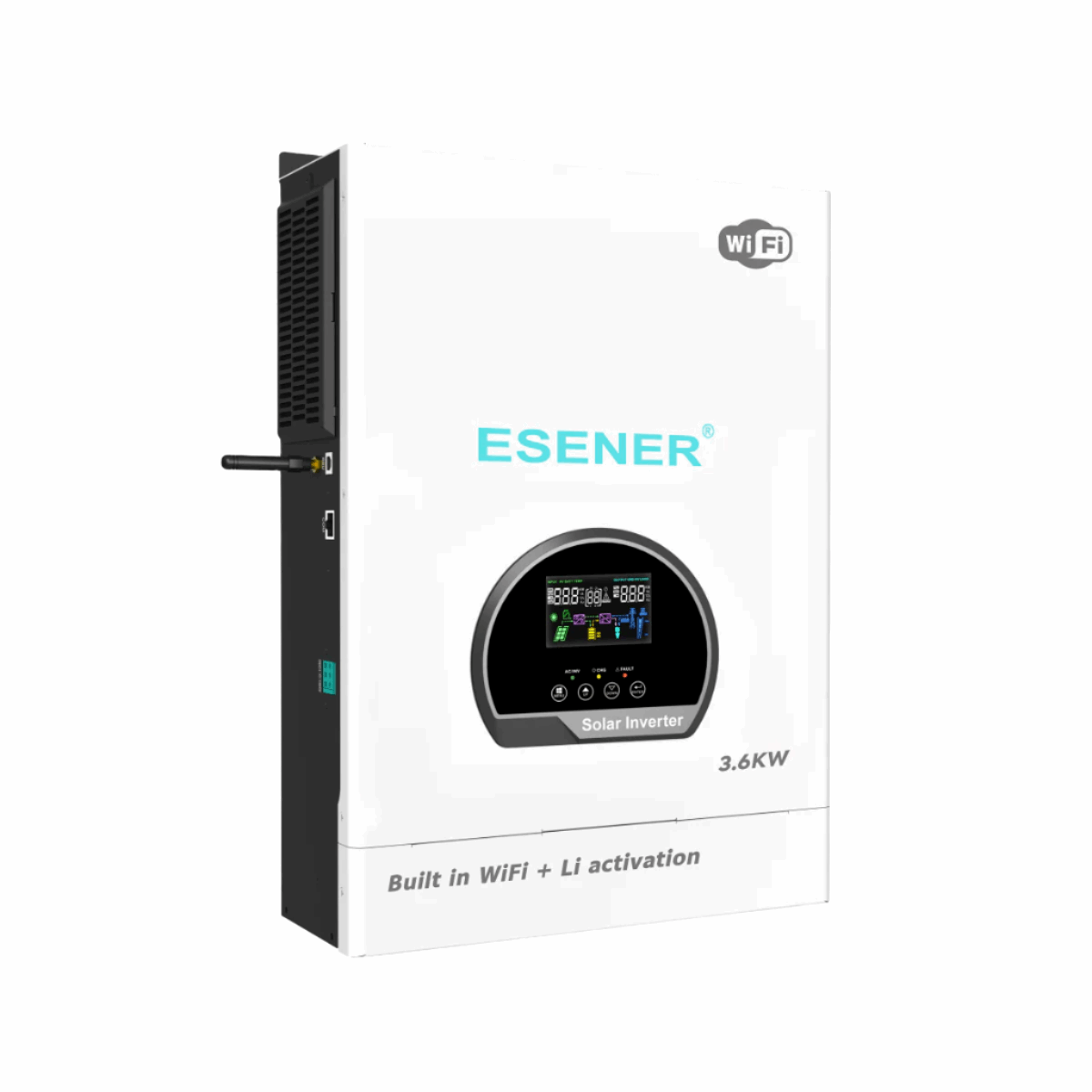

ESENER 3.6kW Pro Inverter
ESENER 3.6kW Pro Inverter
- Delivery: 4 - 7 working days
Sold out
Couldn't load pickup availability
Share
The ESENER 3.6kW Pro Inverter revolutionizes performance within its category, generating 3.6kW of pure sine wave energy with unparalleled efficiency and dependability. This cutting-edge inverter is designed for sophisticated energy solutions, boasting a 100A MPPT, expanded PV array and voltage range, and dual output capabilities for efficient load management. Its state-of-the-art design seamlessly integrates with modern solar systems, delivering exceptional results. With a sleek LCD screen, built-in WiFi, and BMS communication, the ESENER 3.6kW Pro Inverter provides effortless monitoring and control. Its lithium activation feature allows for battery recovery via PV or AC power, solidifying its position as one of the top hybrid inverters on the market.
Features
Features
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc)
Built-in MPPT solar charge controller
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485, CAN monitoring function
Wi-Fi remote monitoring (Built in Wi-Fi and Bluetooth module and antenna)
PV/AC activation function
BMS communication function (CAN Port)
Dual output for smart load management
Specifications
Specifications
Nominal Battery System Voltage: 24V DC
Output:
Rated Power (Main + Second Load): 3600VA/3600W
Battery Mode (Main+Second Load): 3000VA/3000W
Surge Power: 6000W
Waveform: Pure Sine Wave
AC Voltage Regulation (Batt.Mode): 230V AC ±5% (setting)
Peak Efficiency: 90 - 93%
Transfer Time: 10ms (UPS/VDE4105)/20ms (APL)
Input:
Voltage: 230V AC ±5%
Selectable Voltage Range: 170~280V AC (UPS)/90~280V AC (APL)/184~253V AC (VED4105)
Frequency Range: 50Hz/60Hz (auto sensing)
Battery:
Normal Voltage: 24V DC
Floating Charge Voltage: 27.4V DC
Overcharge Protection: 30V DC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 400V DC
Maximum PV Input Current: 18A
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 4000W
PV Array MPPT Voltage Range: 30~320V DC
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 60A
Maximum Charge Current: 100A
Communication: USB/WIFI/Bluetooth/RS-485/CAN
Humidity: 5% to 95% relative humidity (non-condensing)
Operating Temperature Range: 0°C to 50°C
Storage Temperature: -15°C to 60°C
Protections:
Overload protection
Short circuit protection
Deep discharge protection
Certification: CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2)
Dimensions: 318 x 454 x 122.5mm
Weight: 7.4kg
What's in the box
What's in the box
ESENER 3.6kW Pro Inverter
Warranty
Warranty
1 year
