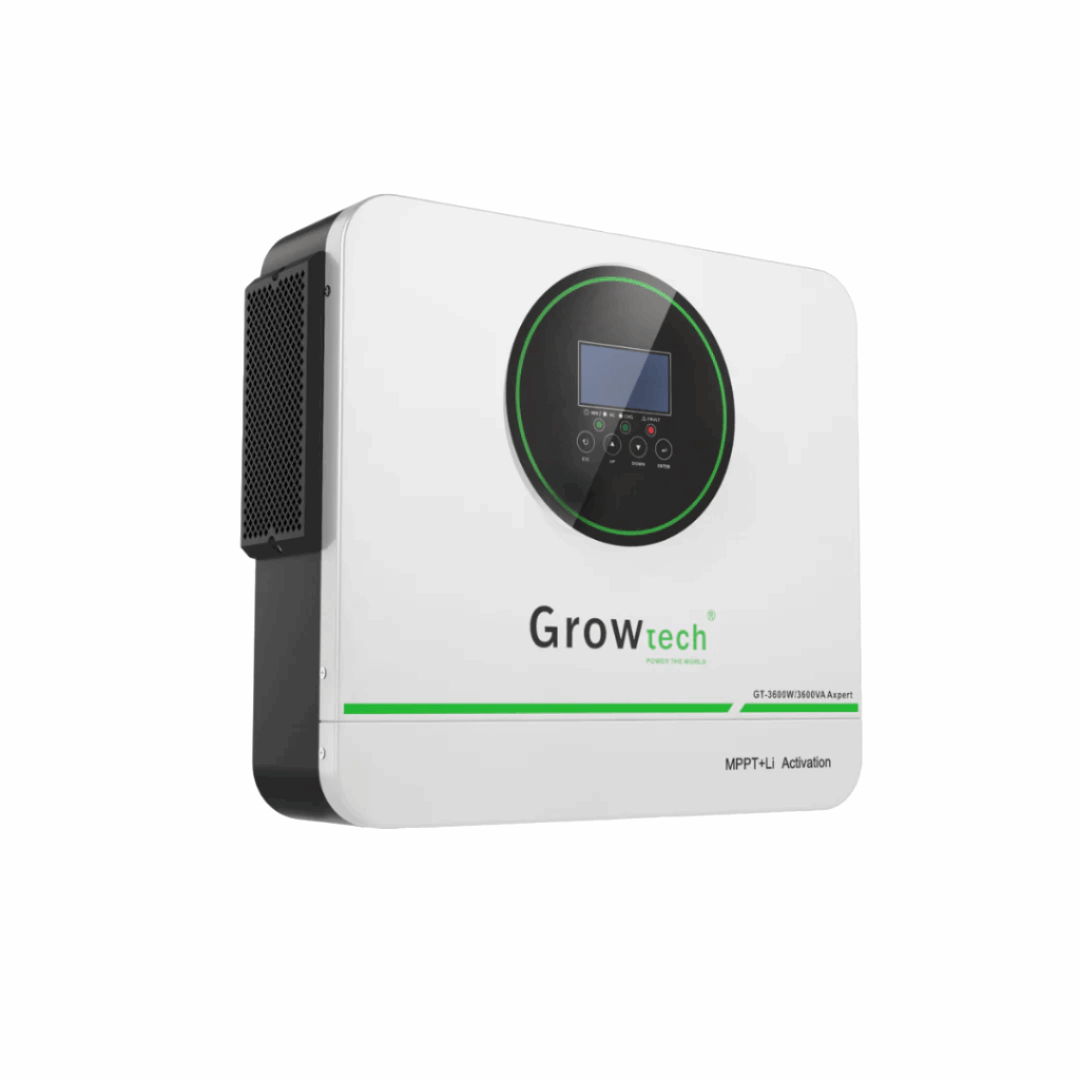

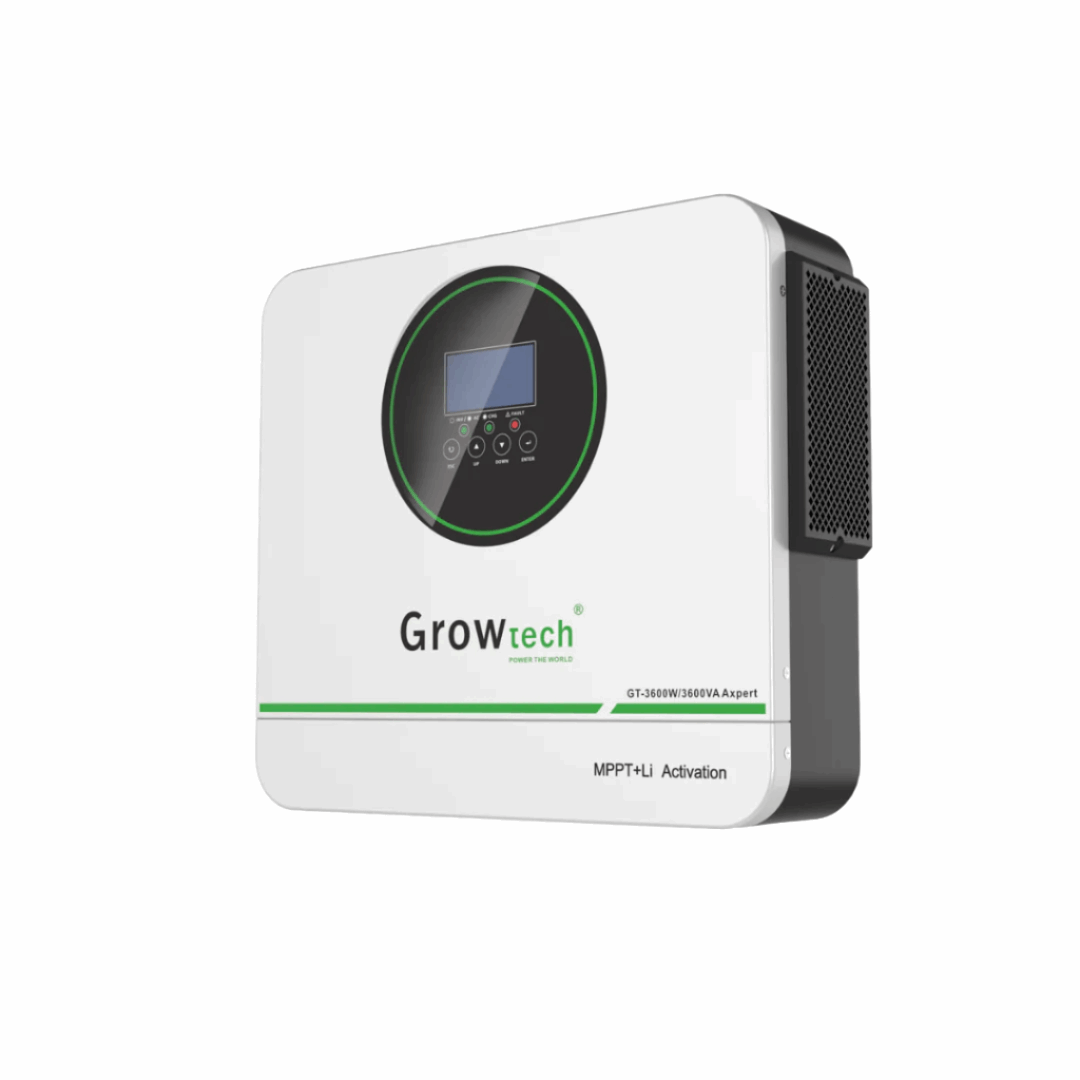

Growtech Axpert GT 3.6kW Inverter
Growtech Axpert GT 3.6kW Inverter
- Delivery: 4 - 7 working days
Sold out
Couldn't load pickup availability
Share
The Growtech Axpert GT 3.6kW Inverter offers exceptional performance at an unbeatable price, making it a top choice for budget-conscious consumers. Despite its affordability, this inverter boasts advanced features, including a Lithium activation function that can restore batteries from protection mode after over-discharge, ensuring continuous energy storage and usage. With a pure sine wave output of 3.6kW, a 100A MPPT controller supporting up to 4000W of PV array power, and a wide MPPT voltage range of 30-500VDC, this inverter provides reliable and efficient energy management for residential and small commercial installations. Optional Wi-Fi connectivity further adds convenience by allowing for remote monitoring.
Features
Features
Pure Sine Wave Output: Provides stable, clean energy for all electrical loads
Lithium Activation Function: Revives batteries from protection mode
Built-in MPPT Controller: Supports up to 4000W of PV array power for optimized solar energy conversion
Wide MPPT Voltage Range: Operates efficiently with an input range of 30-500VDC
Optional WiFi Connectivity: Enables remote monitoring and management for added convenience
Standard LCD Display: Offers clear and essential information for system monitoring and settings
Compact Design: Space-saving and easy to install, ideal for smaller setups
Protection Features: Safeguards against overload, short circuit, and deep discharge
Specifications
Specifications
Capacity: 3600VA/3600W
Parallel Capability: No
Lithium Battery Activation: Yes
Input:
Nominal Voltage: 220/230V AC ±5%
Acceptable Voltage Range: 170~280V (for PC)/90~280V AC (for home appliances)
Frequency: 50Hz/60Hz (auto sensing)
Output:
Nominal Voltage: 220/230V AC ±5%
Rated Power: 3600VA/3600W
Surge Power: 7000W
Waveform: Pure Sine Wave
Frequency: 50/60Hz
Transfer Time: 10ms(for PC)/20ms (for home appliances)
Peak Efficiency (PV to inverter): 96%
Peak Efficiency (battery to inverter): 93%
Overload Protection: 5s@ ≥140% load; 10s@100-140% load
Crest Factor: 3:1
Admissible Power Factor: 0.6~1 (inductive or capacitive)
Battery:
Battery Voltage: 24V DC
Floating Charge Voltage: 27V DC
Overcharge Protection: 32V DC
Charging Method: CC/CV
Solar Charger & AC Charger:
Solar Charger Type: MPPT
Maximum PV Array Power: 4000W
Maximum PV Array Open Circuit Voltage: 500V DC
PV Array MPPT Voltage Range: 30~500V DC
PV Max Input Current: 15A
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 60A
Maximum Charge Current: 100A
Communication Interface: RJ45 for Wi-Fi
Humidity: 5% to 95% relative humidity (non-condensing)
Operating Temperature Range: -10°C to 55°C
Storage Temperature: -15°C to 60°C
Dimensions: 338 x 310 x 100mm
Weight: 4.4kg
What's in the box
What's in the box
Growtech Axpert GT 3.6kW Inverter
Warranty
Warranty
1 year
