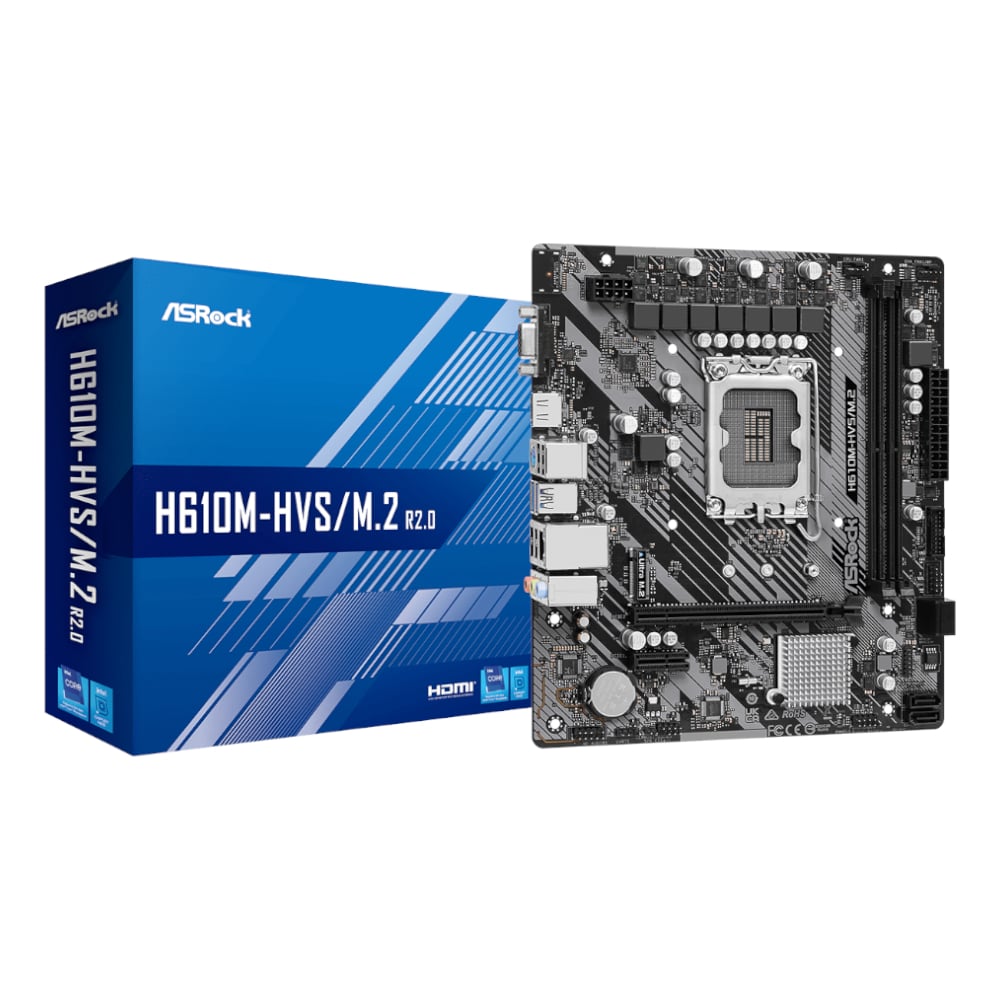

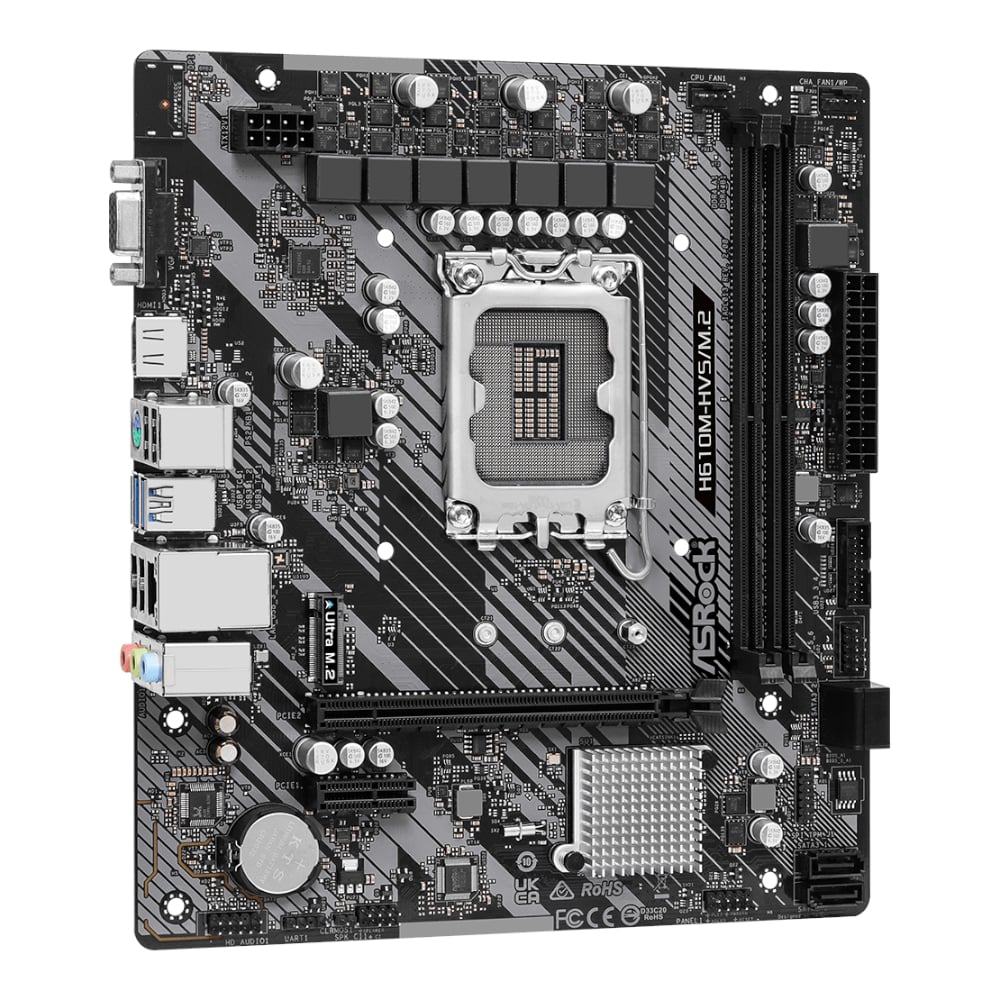

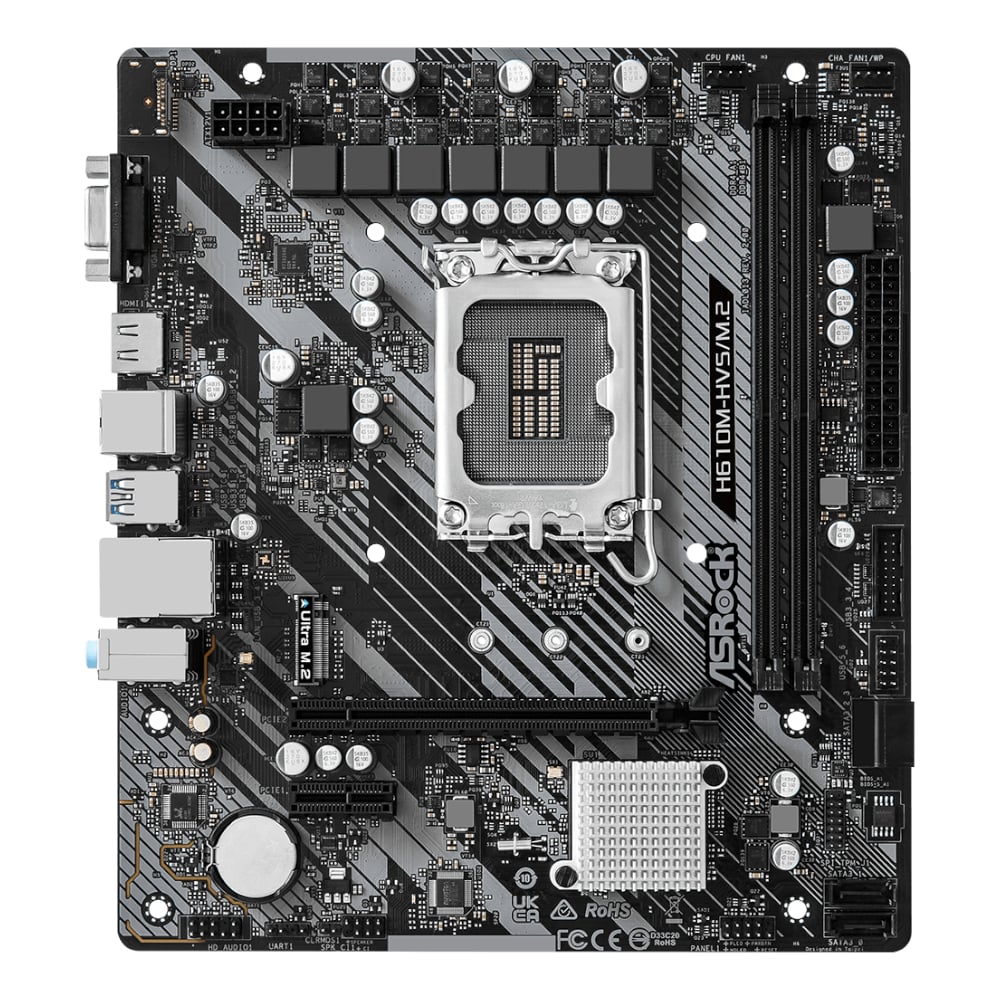

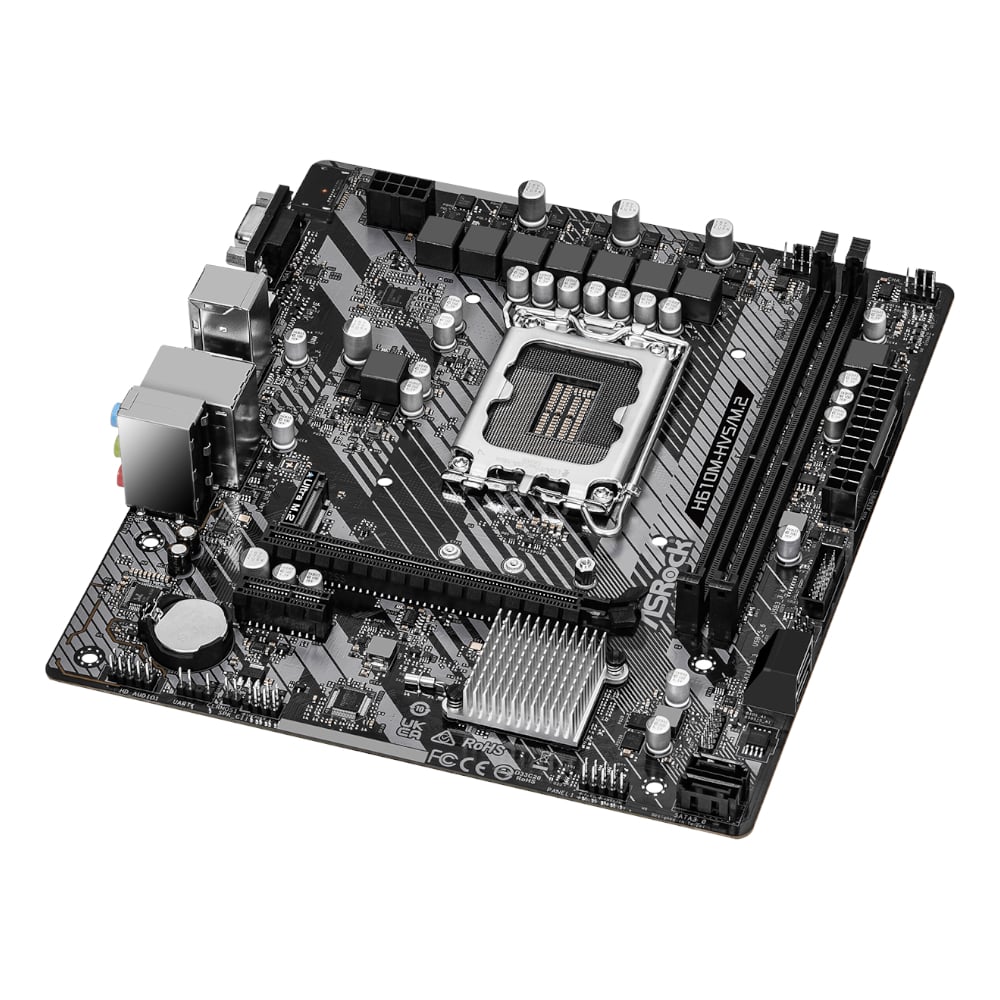

ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard
ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard
- Delivery: 4 - 7 working days
In stock
Couldn't load pickup availability
Share
The ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard is a reliable and powerful solution for building a PC. It supports 14th, 13th, and 12th Gen Intel® Core™ processors and has a 6+1+1 Phase Power Design for efficient power delivery. The H610M-HVS/M.2 R2.0 supports up to 64GB of dual-channel memory at 3200MHz, with 2 DDR4 DIMM slots and 1 PCIe 4.0 x16 slot for high-speed GPUs and other expansion cards. Storage options include 4 SATA3 ports and an Ultra M.2 slot. -The ASRock H610M-HVS/M.2 R2.0 motherboard has HDMI and D-Sub outputs for multiple displays, Realtek ALC897 audio for immersive sound, and convenient connectivity with USB 3.2 Gen1 and USB 2.0 ports, as well as Realtek Gigabit LAN for fast networking. It's a compact and versatile option for PC builds.
Features
Features
Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
6+1+1 Phase Power Design
2 x DDR4 DIMMs
Supports Dual Channel, up to 3200
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 x SATA3
1 x Ultra M.2 (PCIe Gen3 x4)
4 x USB 3.2 Gen1 (2 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN
Specifications
Specifications
Socket: Intel LGA 1700
CPU (Max Support): Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Chipset: Intel® H610
DDR4 Memory: Supports DDR4 non-ECC, un-buffered memory up to 3200 | Supports ECC UDIMM memory modules (operate in non-ECC mode) | Supports Intel® Extreme Memory Profile (XMP) 2.0
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 64
PCI-E x16: 1
PCI-E GEN: Gen3
PCI-E x1: 1
SATAIII: 4
M.2 Slot: 1
TPM (Header): 1
LAN: Realtek RTL8111H Gigabit LAN
USB 3.2 ports (Front): 2(Gen 1, Type A)
USB 3.2 ports (Rear): 2(Gen 1, Type A)
USB 2.0 ports (Front): 2(Type A)
USB 2.0 ports (Rear): 4(Type A)
Serial Ports(Front): 1

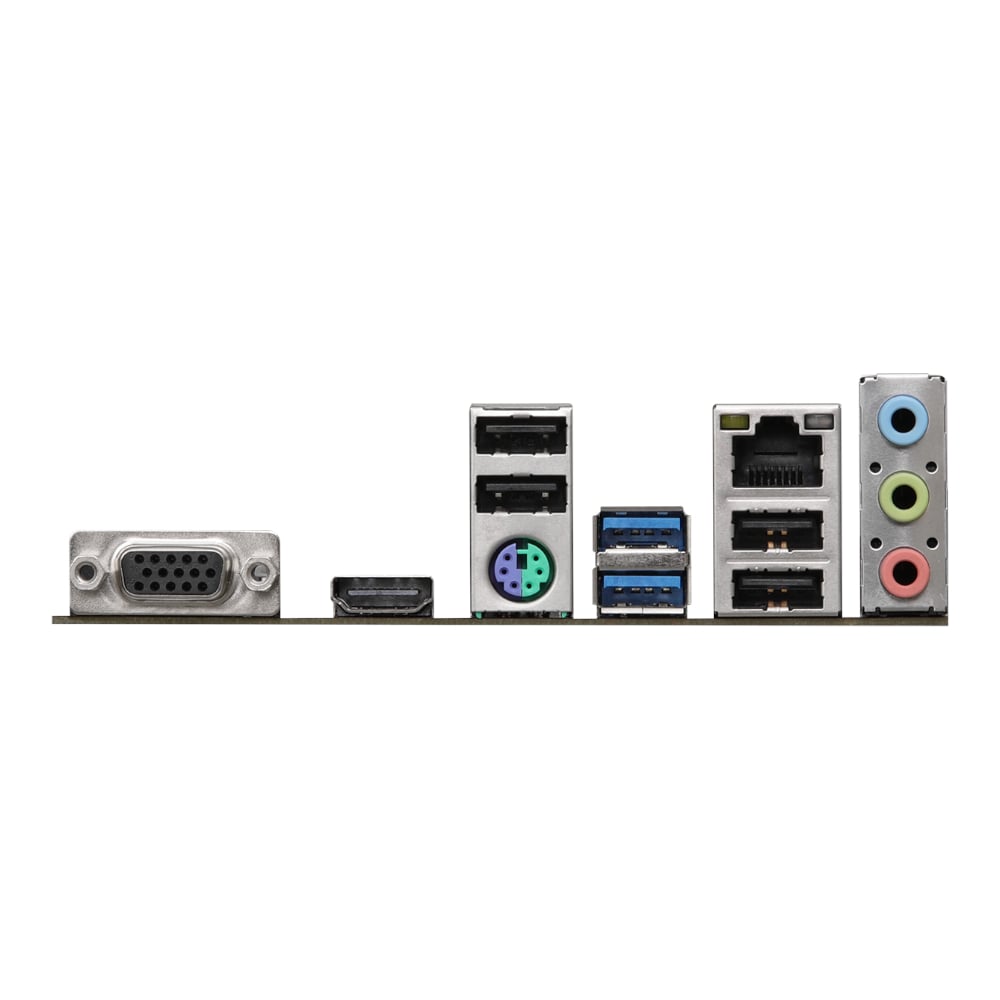

Audio ports (Rear): Realtek ALC897 Audio Codec (7.1 CH HD Audio)
D-Sub Port: 1
HDMI: 1
Form Factor: M-ATX
Operating System: Support for Windows® 10 64-bit / 11 64-bit
What's in the box
What's in the box
ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard – Black x1
Warranty
Warranty
36 Months
