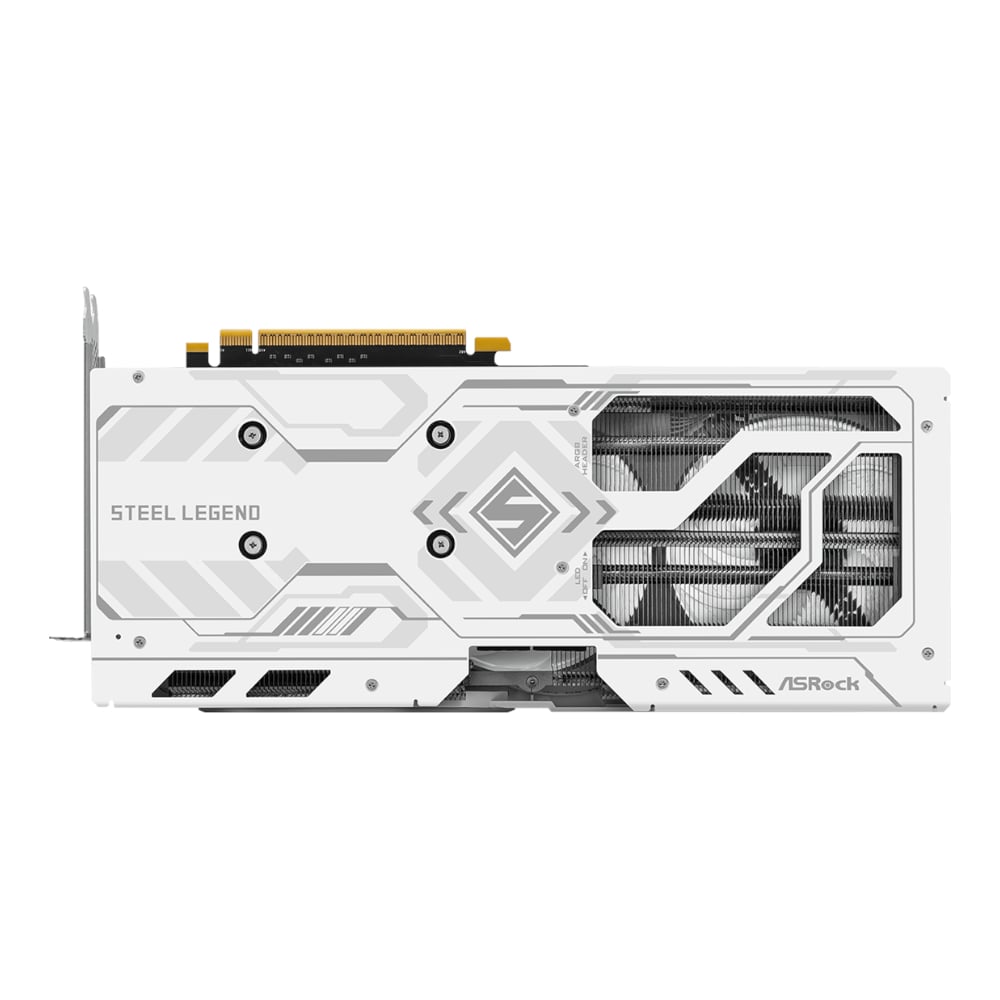

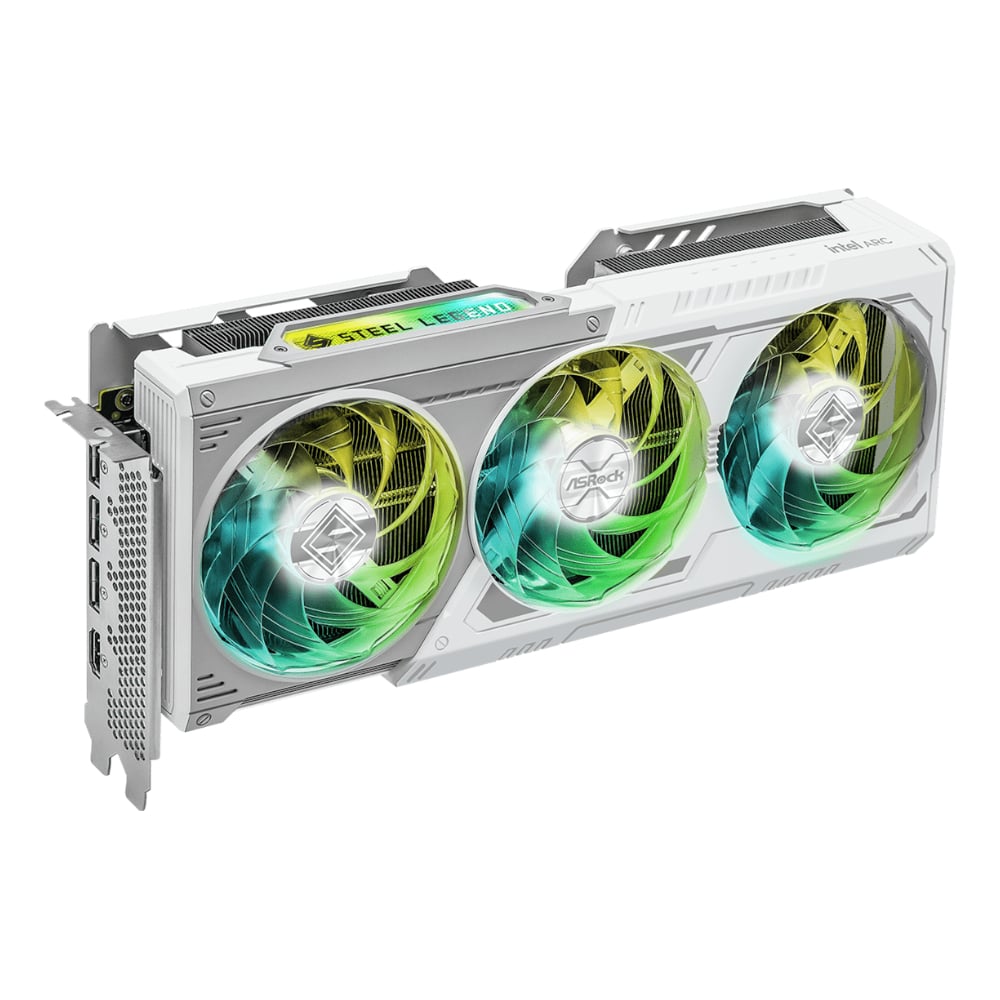

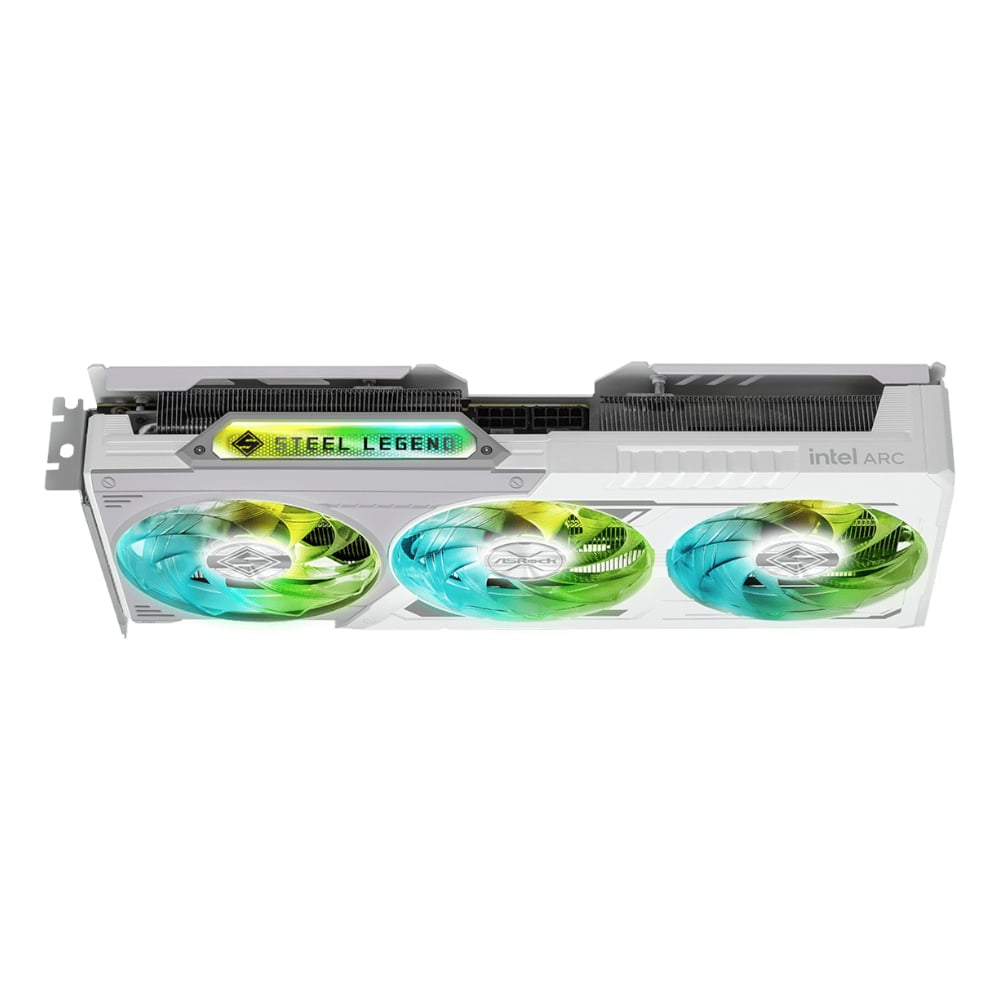

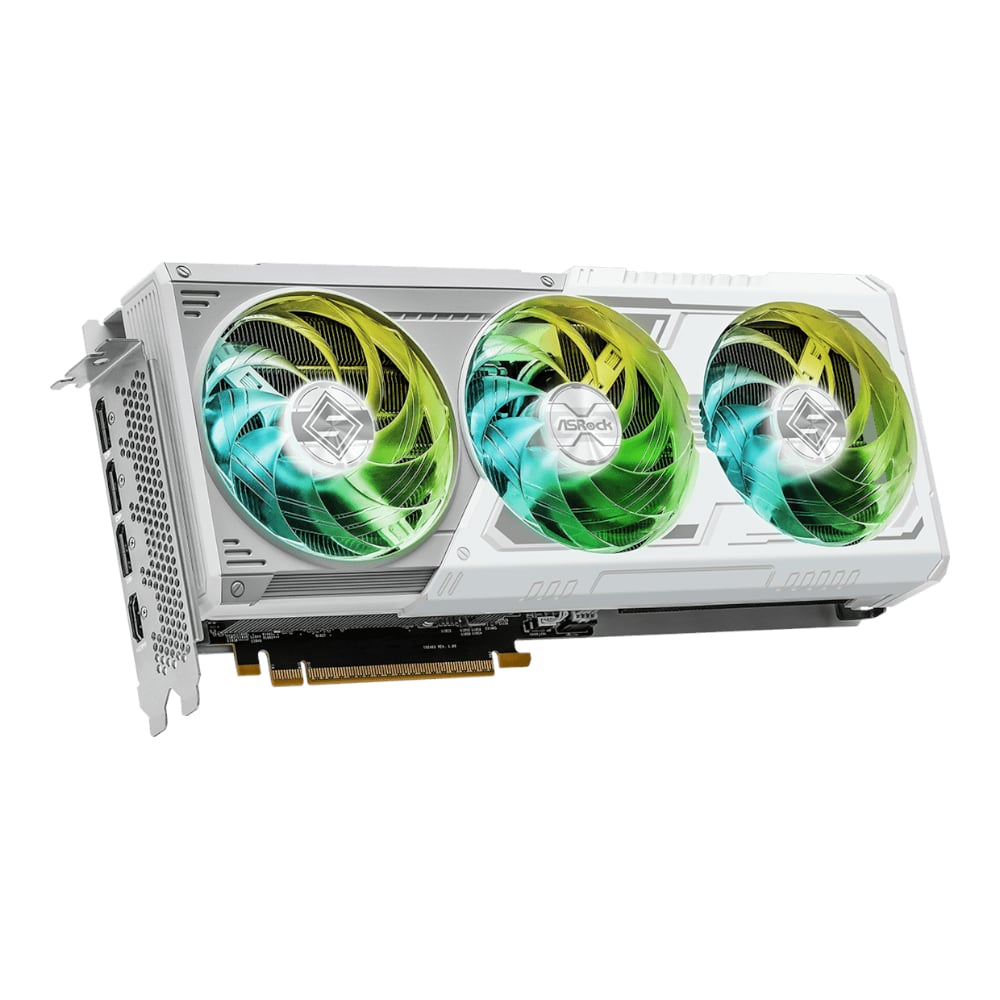

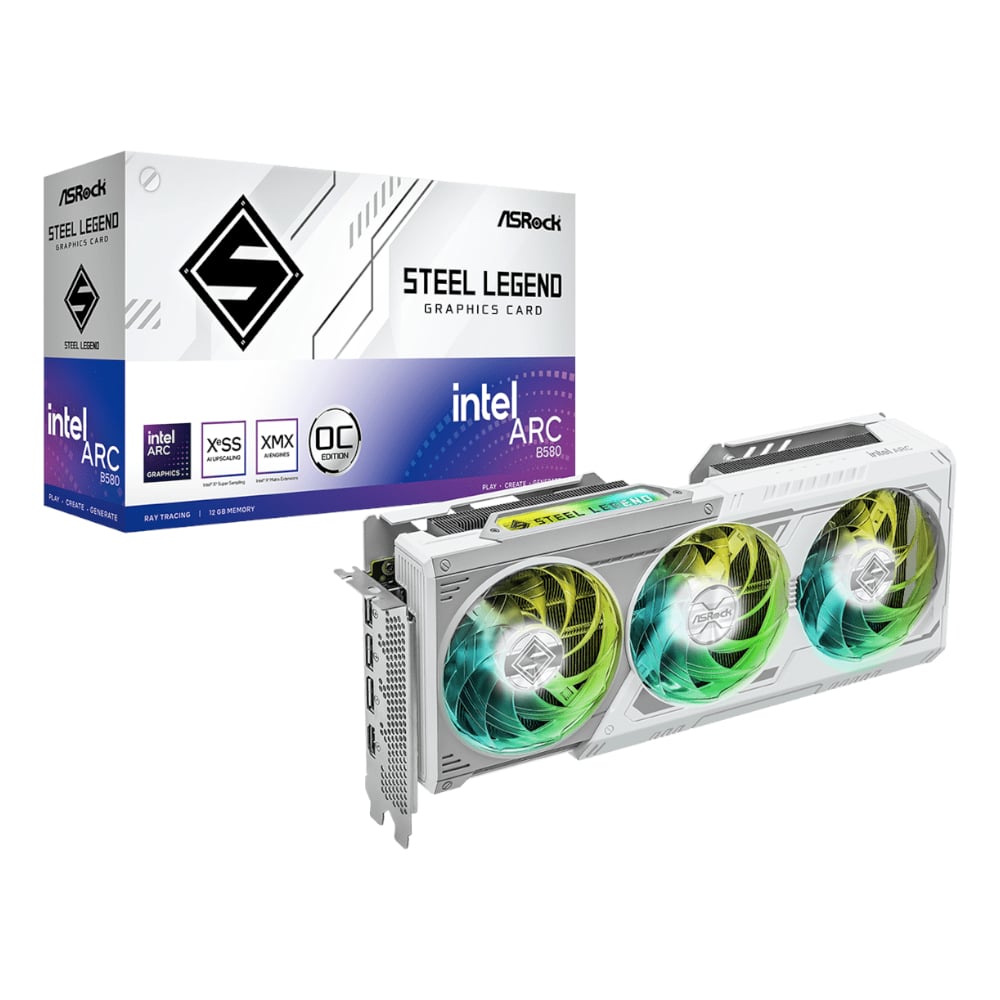

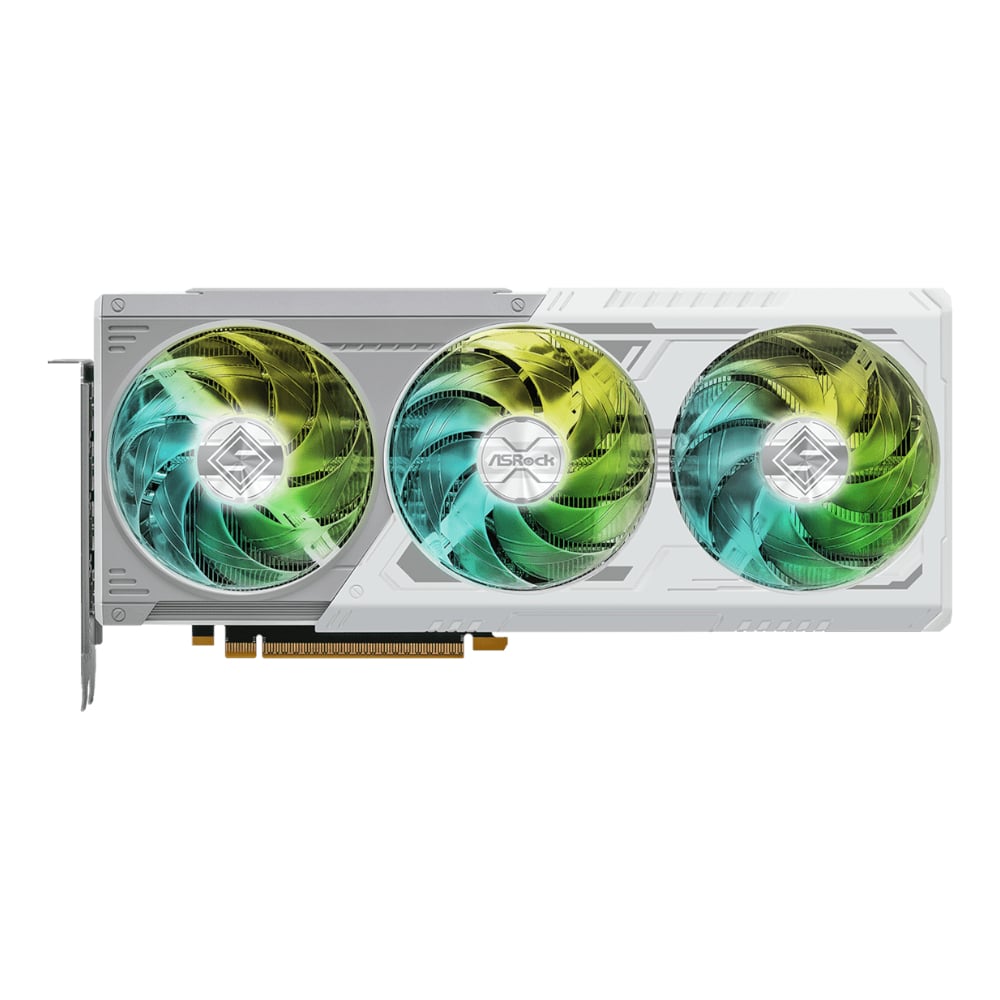

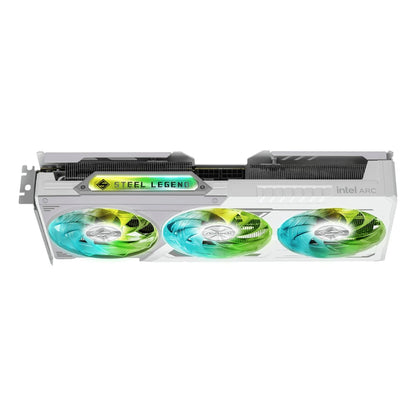

ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card

ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card

Regular price R 7 700
Regular price R 0 Sale price R 7 700
Sale Sold out
VAT included. Shipping calculated at checkout.
  • Delivery: 4 - 7 working days

In stock

The ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card offers powerful performance for both gamers and creators. Its integrated ARGB LEDs allow for customizable and vibrant lighting effects, which can be easily controlled. The card is also compatible with Polychrome SYNC, ensuring seamless synchronization with ASRock motherboards. And with an ARGB header, you can add extra ARGB strips or devices to elevate the aesthetics of your setup. Advanced cooling technology and a triple-fan system deliver optimal temperature control during intensive tasks, while a Striped Ring Fan design and V-shaped cutting fins enhance airflow and efficiency for superior cooling. Intelligent fan operation balances performance and noise, spinning under high loads and stopping during low temperatures for silent operation. Built for durability, this graphics card has a copper base heatsink and heatpipes that efficiently transfer heat and a stacked fin design to enhance heat dissipation. The metal backplate adds both stability and a sleek white look to complement modern builds. Equipped with powerful specs, the ASRock Intel Arc B580 boasts 12GB of 192-bit GDDR6 memory, a base clock up to 2800 MHz, and cutting-edge Intel® Xe2-HPG Architecture. It also supports Intel® XeSS 2 AI-driven upscaling and DirectX 12 Ultimate for advanced gaming visuals. With multi-display capabilities and various connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this graphics card delivers immersive visuals and exceptional performance for gaming and creative applications.

Features

Base Clock: Up to 2800MHz / 19Gbps
12GB 192-bit GDDR6
Intel® Arc™ B580 Graphics
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel®& XeSS 2)
Intel® Xe Matrix eXtentions (Intel® XMX)
PCI® Express 4.0 Support
Polychrome SYNC
Triple-Fan Design
Striped Ring Fan
Ultra-fit Heatpipe with air deflecting fin
Stylish Metal Backplate

Specifications

Graphics Engine: Intel® Arc B580
Bus Standard: PCI® Express 4.0 x 8
DirectX: 12 Ultimate
OpenGL: 4.6
Memory: 12GB GDDR6
Engine Clock: 2800 MHz
Intel® XMX Engines: 160
Memory Clock: 19Gbps
Memory Interface: 192-bit
Resolution: Digital Max Resolution: 7680 x 4320
Interface: 1 x HDMI™ 2.1a, 1 x DisplayPort™ 2.1 up to UHBR 13.5, 2 x DisplayPort™ 2.1 up to UHBR 10
HDCP: Yes
Multi-view: 4
Recommended PSU: 650W
Power Connector: 2 x 8-pin
Colour: White
Product Dimensions: 29.8 x 13.1 x 5.1 cm
Product Weight: 959g

What's in the box

ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card – White x1
Quick Install Guide x1

Warranty

36 Months
