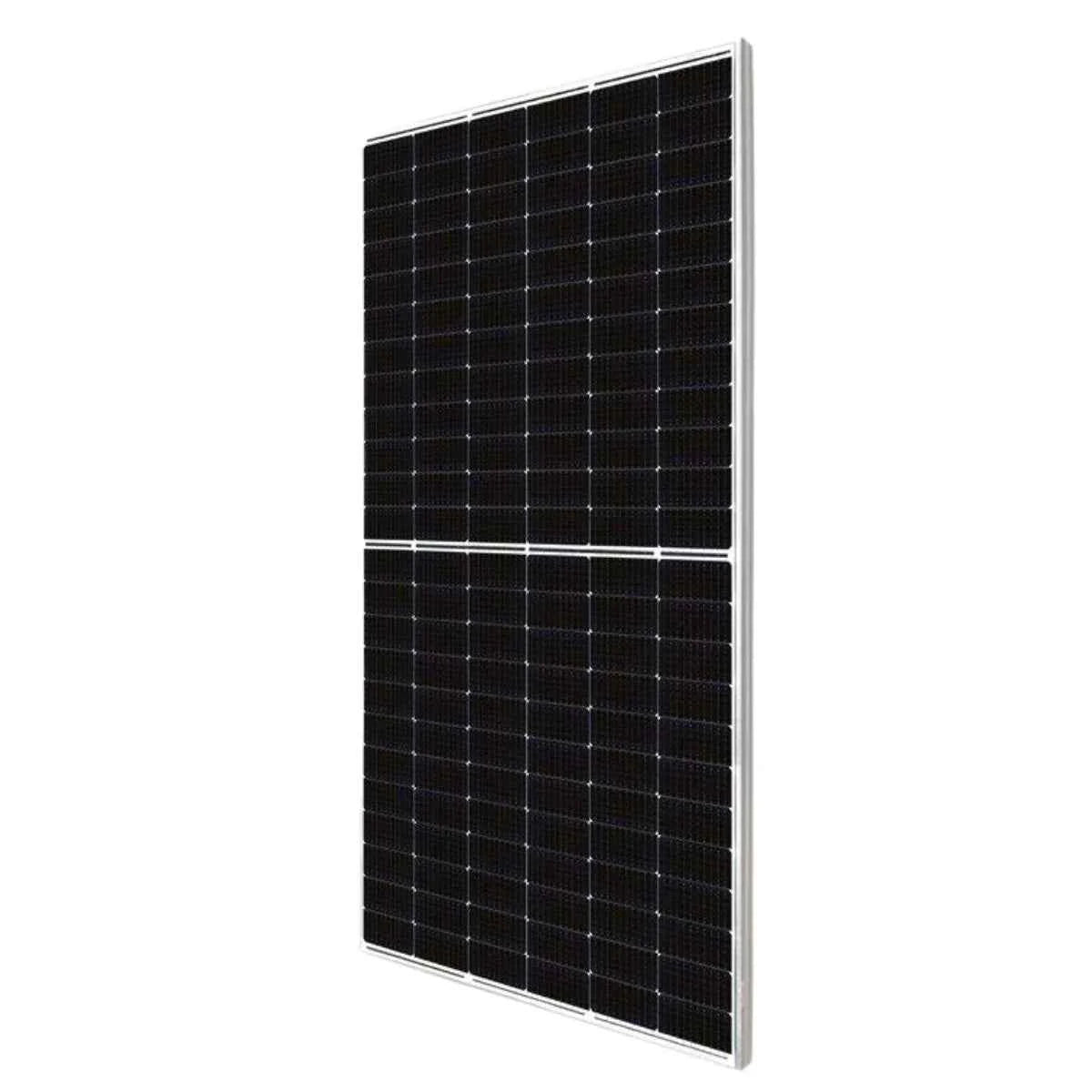

Canadian Solar HiKu6 Mono PERC Solar Panel 545W

High-Performance Solar Panel for Your Home or Business

The Canadian Solar HiKu6 Mono PERC 545W Solar Panel delivers exceptional power output and reliability for residential and commercial solar installations. Engineered with advanced monocrystalline PERC technology, this premium panel maximizes energy production even in challenging conditions.

Features

• Superior Power Output: 545W high-efficiency performance reduces the number of panels needed for your system
• Advanced PERC Technology: Monocrystalline cells with Passivated Emitter Rear Contact design capture more sunlight and convert it to usable energy
• Proven Durability: Built to withstand harsh South African weather conditions with robust construction and premium materials
• Long-Term Reliability: Backed by Canadian Solar’s industry-leading warranty and decades of manufacturing excellence
• Cost-Effective Solution: Higher wattage means fewer panels, reducing installation costs and roof space requirements

Specifications

• Electrical Data — STC (1000 W/m², 25°C):
  • Nominal Max. Power (Pmax): 545W
  • Module Efficiency: 21.1%
  • Operating Voltage (Vmp): 41.5V
  • Operating Current (Imp): 13.14A
  • Open Circuit Voltage (Voc): 49.4V
  • Short Circuit Current (Isc): 13.95A
  • Power Tolerance: 0 ~ +10W
  • Max System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
  • Max Series Fuse Rating: 25A
  • Module Fire Performance: TYPE 1 (UL 61730) or CLASS C (IEC 61730)
  • Application Classification: Class A
• Electrical Data — NMOT (800 W/m², 20°C ambient)
  • Nominal Max. Power (Pmax): 409W
  • Operating Voltage (Vmp): 38.9V
  • Operating Current (Imp): 10.52A
  • Open Circuit Voltage (Voc): 46.7V
  • Short Circuit Current (Isc): 11.25A
• Mechanical Data:
  • Cell Type: Mono-crystalline
  • Cell Arrangement: 144 (2 x (12 x 6))
  • Dimensions: 2278 x 1134 x 30mm
  • Weight: 27.8kg
  • Front Cover: 3.2mm tempered glass with anti-reflective coating
  • Frame: Anodized aluminium alloy
  • Junction Box: IP68, 3 bypass diodes
  • Cable: 4mm² (IEC), 12 AWG (UL)
  • Cable Length: 350mm (+) / 250mm (−) or custom
  • Connector: T6 or MC4-EVO2 / MC4-EVO2A
• Temperature Characteristics:
  • Temperature Coefficient (Pmax): -0.34%/°C
  • Temperature Coefficient (Voc): -0.26%/°C
  • Temperature Coefficient (Isc): 0.05%/°C
  • Nominal Module Operating Temperature: 41 ±3°C
  • Operating Temperature: -40°C to +85°C
