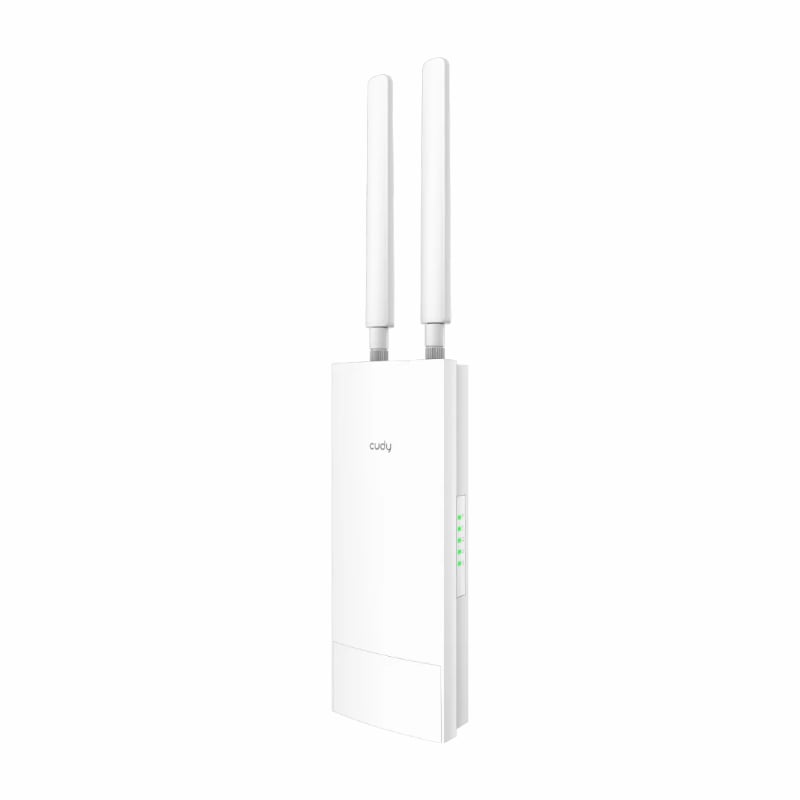

Cudy AX3000 2.5G Dual Band Ceiling Outdoor Access Point
Cudy AX3000 2.5G Dual Band Ceiling Outdoor Access Point
- Delivery: 4 - 7 working days
Sold out
Couldn't load pickup availability
Share
The Cudy AX3000 Outdoor Access Point efficiently converts LAN networks into fast, reliable wireless networks. With a sturdy IP65 casing, Power over Ethernet, and Cudy Mesh features, it is perfect for high-density outdoor environments such as parks, farms, and parking lots. It supports over 100 devices with low latency and has a maximum capacity of 512 devices. Its robust signal navigation through obstacles is aided by five power amplifiers and a 3+2 antenna structure. The 160 MHz channel width and 1024-QAM modulation provide a total throughput of up to 3 Gbps. It can operate in extreme temperatures and provides unified Wi-Fi coverage throughout the premises with Mesh technology. Adaptive Routing maximizes network performance by selecting the best paths for data transfer.
Features
Features
IP65, -40~70°C (-40~158°F), 6kV Surge
5-Stream Dual-Band Wi-Fi 6
1x Shielded GbE (PoE In)
802.3at/af, Passive PoE
Watchdog, Schedule Reboot
Max 320 m (1050 ft) Range
200 Connected Devices
Specifications
Specifications
CPU: 1.3 GHz Dual-Core CPU
Chipset: MT7981BA
Flash: 128 MB (1 Gbit) NAND
DDR: 256 MB (2 Gbit) DDR3
Wireless:
5 GHz Wi-Fi Speed: 2402Mbps
Wi-Fi Bands: EU + DFS
2.4 GHz Wi-Fi Speed: 574 Mbps
5 GHz Wi-Fi Streams: 3T3R (3x 3 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2x 2 MIMO)
Wi-Fi Antennas: 1x Internal+2x External
5 GHz Antenna Gain Max: 6 dBi
2.4 GHz Antenna Gain Max: 4 dBi
FEM or PA/LNA: 5 GHz: 3x High-Power, 2.4 GHz: 2x High-Power
Range Performance:
Max: 320 m (1050 ft)
Park: 280 m (919 ft)
Street: 70 m (230 ft)
Woods: 40 m (131 ft)
Interfaces:
2.5G RJ45 Ports: 1
Ethernet Notes: Accepts PoE powering
LED: System
Physical Buttons: Reset Button, WPS Button
Power Input: PoE via Ethernet Port
Power:
Power Methods: 802.3at PoE/Passive PoE
Passive PoE: 48 ~ 57V
Power Adapter: Input: 100 ~ 240 V, 50/60 Hz ACOutput: 48V Passive PoE
Max Power Consumption (W): 18 W
Idle Power Consumption (W): 5 W
Reliability:
System Stability: Watchdog
ESD Air Protection: 4kV
ESD Contact Protection: 8kV
Environment: Operating Temperature: -10°C~ 60°C(14°F ~140°F), Storage Temperature: -40°C~ 70°C(-40°F ~ 158°F)
Installation: Wall-Mounting, Ceiling-Mounting
What's in the box
What's in the box
Cudy AX3000 2.5G Dual Band Ceiling Access Point Outdoor - White x1
Warranty
Warranty
12 Months
