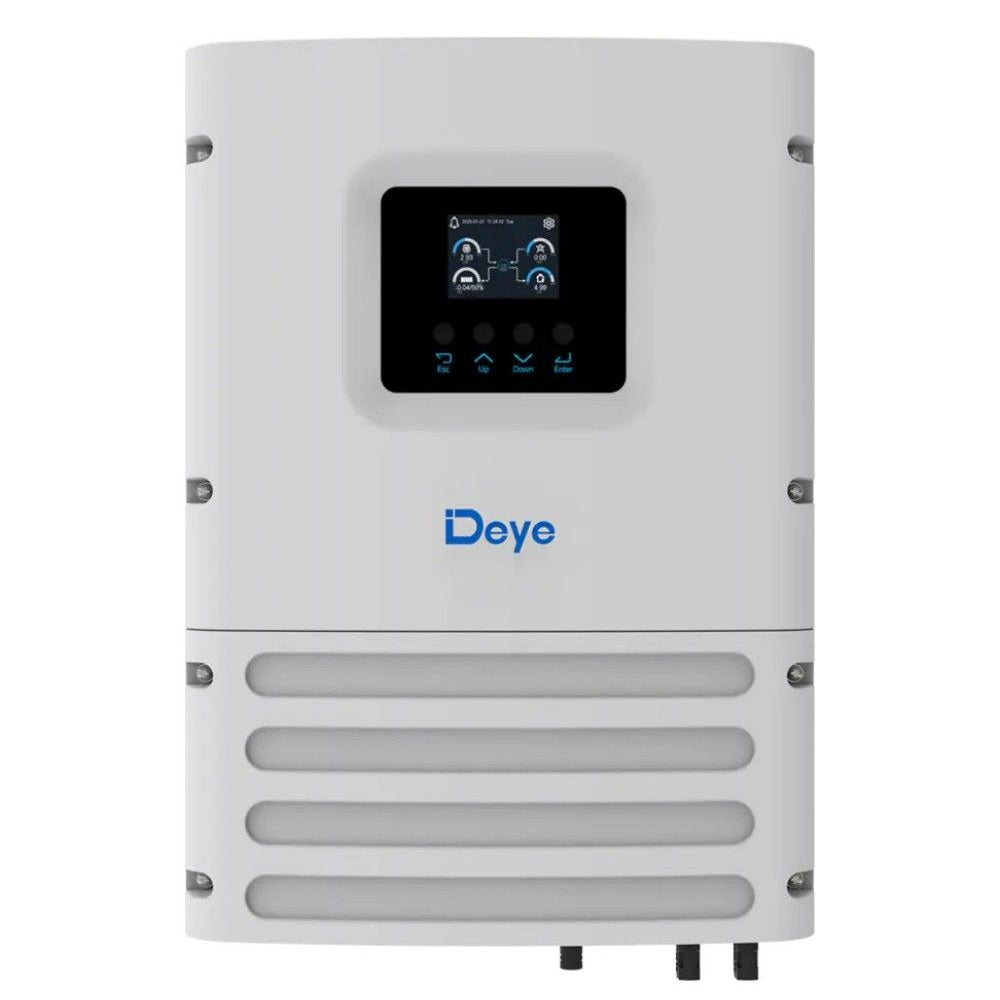

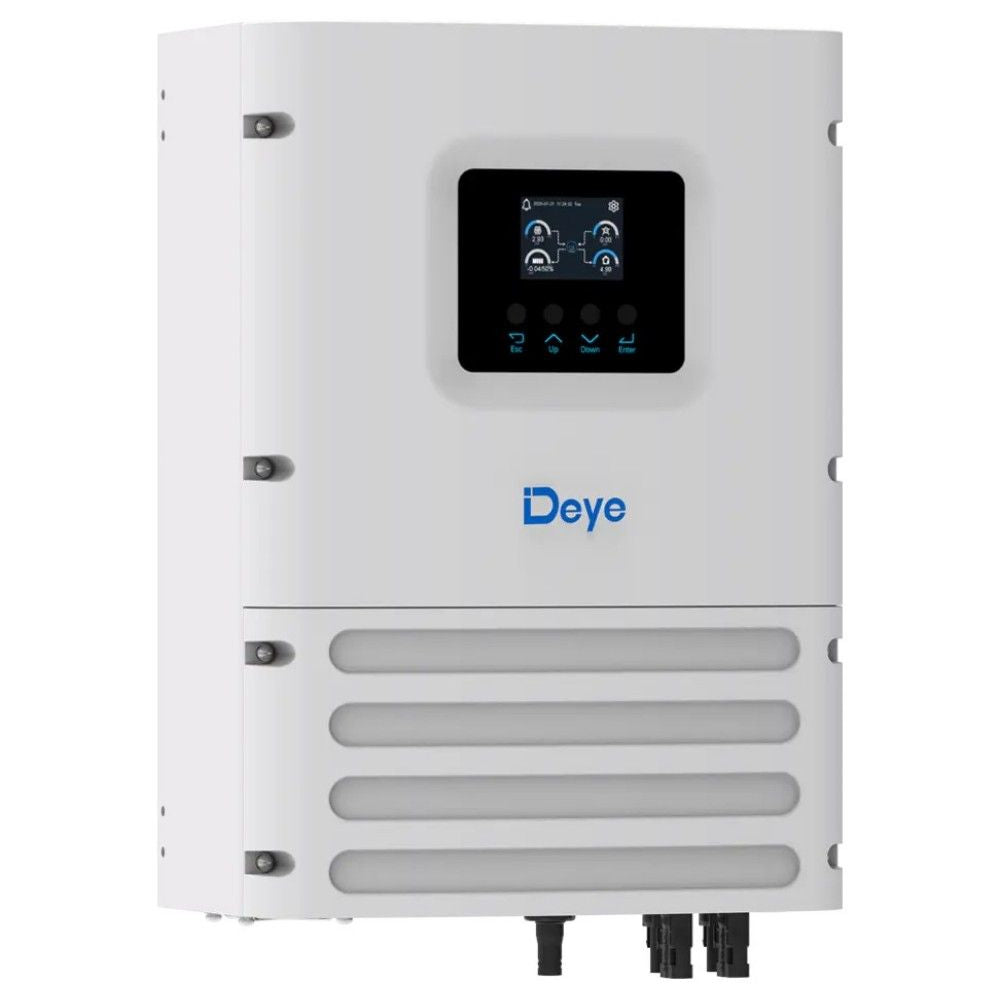

Deye Off-Grid 6kW Hybrid Inverter

6kW Hybrid Inverter with 100A MPPT & Battery Communication

The Deye Off-Grid 6kW Hybrid Inverter is a high-performance hybrid inverter designed for residential and small commercial solar installations. With 6kW output power and advanced battery management capabilities, this inverter seamlessly integrates solar generation, battery storage, and grid connection. Featuring dual MPPT inputs supporting up to 10kW total PV power, TYPE II SPD protection on both DC and AC sides, and comprehensive battery communication protocols, this inverter delivers reliable, efficient energy management for modern solar systems.

Features

• Dual MPPT Inputs: Two independent MPPT trackers with 100A total charging current for optimized solar energy harvesting
• High PV Capacity: Supports up to 10kW total PV input power (5kW per MPPT)
• Advanced Battery Support: Compatible with lead-acid and lithium batteries via CAN/RS485 communication
• Comprehensive Protection: TYPE II SPD on DC and AC sides, plus integrated surge protection
• Flexible Operation: Multiple operating modes including self-consumption, backup, and time-of-use optimization
• Smart Monitoring: GPRS/WiFi connectivity with mobile app support for remote monitoring
• High Efficiency: Up to 97.6% maximum efficiency for optimal energy conversion
• Generator Compatible: Supports generator input for backup power scenarios

Specifications

• Battery Input Data:
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 40-60V
  • Max. Charging Current (A): 135
  • Max. Discharging Current (A): 135
  • Charging Strategy for Li-ion Battery: Self-adaption to BMS

  • Number of Battery Input: 1
• PV String Input Data:
  • Max. PV Access Power (W): 12000 (6000 per MPPT)
  • Max. PV Input Power (W): 9600
  • Max. PV Input Voltage (V): 500
  • Start-up Voltage (V): 125
  • MPPT Voltage Range (V): 150-425
  • Rated PV Input Voltage (V): 370
  • Max. Operating PV Input Current (A): 18+18
  • Max. Short-Circuit Current (A): 27+27
  • Number of MPPT: 2
  • Number of Strings per MPPT: 1/1
• AC Input/Output Data:
  • Rated Output Power (W): 6000
  • Max. AC Input/Output Apparent Power (VA): 6000
  • Max. AC Output Current (A): 27.3/26.1
  • Max. Continuous AC Passthrough Current (A): 27.3/26.1
  • Max. Continuous AC Passthrough (grid to load) (A): 35
  • Max. Overload/Passthrough Current (A): 2 times of rated current, 10s
  • Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
  • Rated Output Voltage (V): 220/230/240VAC
  • Rated Input/Output Voltage/Range (V): 220/230 0.85Un-1.1Un
  • Rated Grid Frequency Range (Hz): 45-55 / 55-65
  • Grid Connection Form: L+N+PE
  • Total Harmonic Distortion (THD): <3% (nominal power)
  • DC Injection Current: <0.5% In
• Efficiency:
  • Max. Efficiency: 97.6%
  • Euro Efficiency: 96.5%
  • MPPT Efficiency: >99.9%
• Protection:
  • DC Reverse Connection Protection: Yes
  • AC Short-Circuit Protection: Yes
  • Leakage Current Protection: Yes
  • Surge Protection: TYPE II (DC), TYPE II (AC)
  • Anti-Islanding Protection: Yes
  • Overload/Over-Temperature Protection: Yes
  • Ground Fault Monitoring: Yes
  • Grid Monitoring: Yes
  • AFCI Protection: Optional
• Dimensions: D x W x H (mm): 440 x 370 x 147
• Weight (kg): 17
• Topology: High-frequency transformer
• Degree of Protection: IP65
• Operating Temperature Range: -40 to +60°C
• Relative Humidity: 0-100%
• Cooling Method: Natural cooling
• Max. Operating Altitude (m): 4000
• Display: LED + LCD
• Communication: CAN/RS485/WiFi/GPRS (4G optional)
• DC Switch: Integrated
• Certifications: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, VDE-AR-N 4105, CEI 0-21, G98, G99, VDE 0126-1-1, NRS 097-2-1, EN 50549-1, C10/11, RD 1699, UTE C 15-712-1, AS/NZS 4777.2
