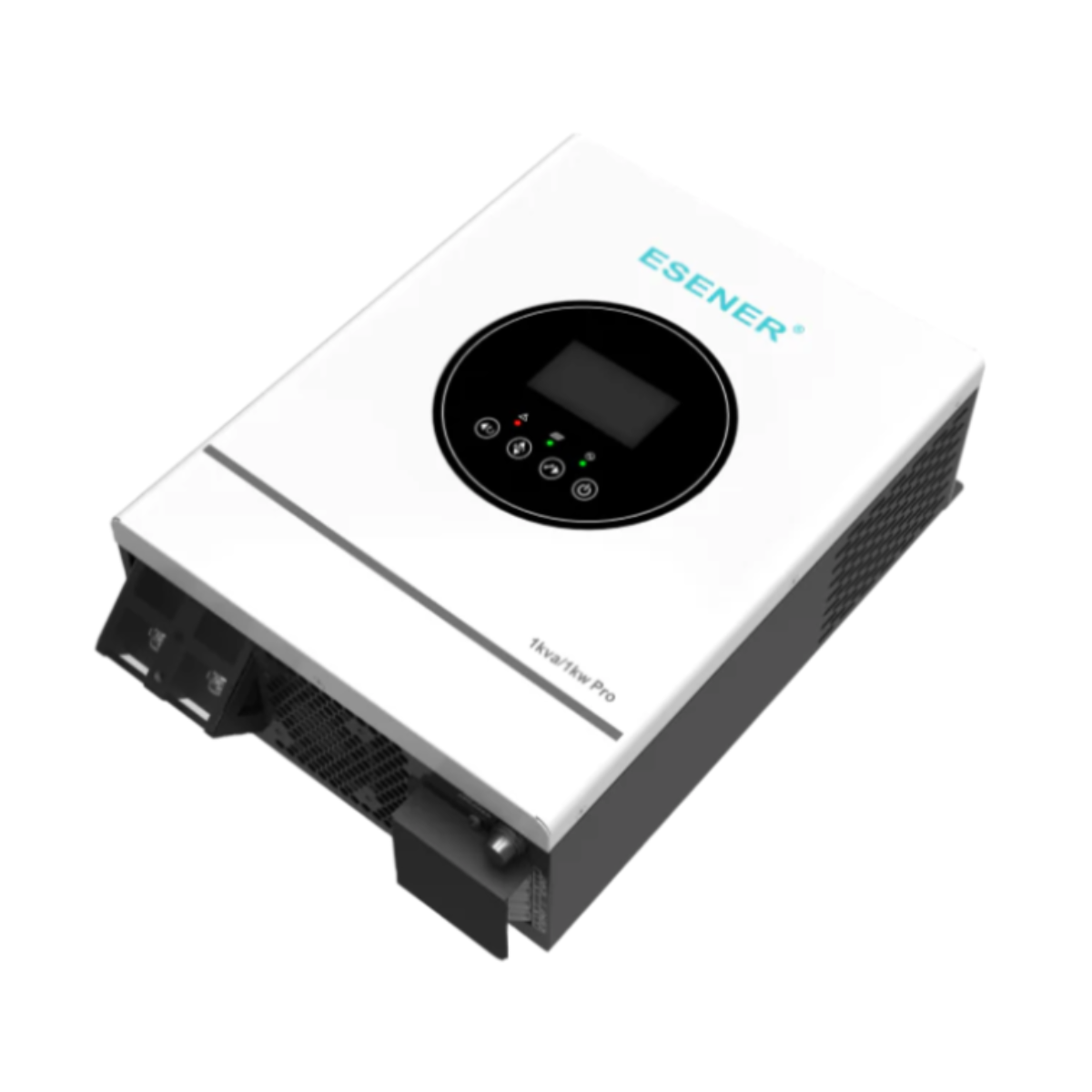

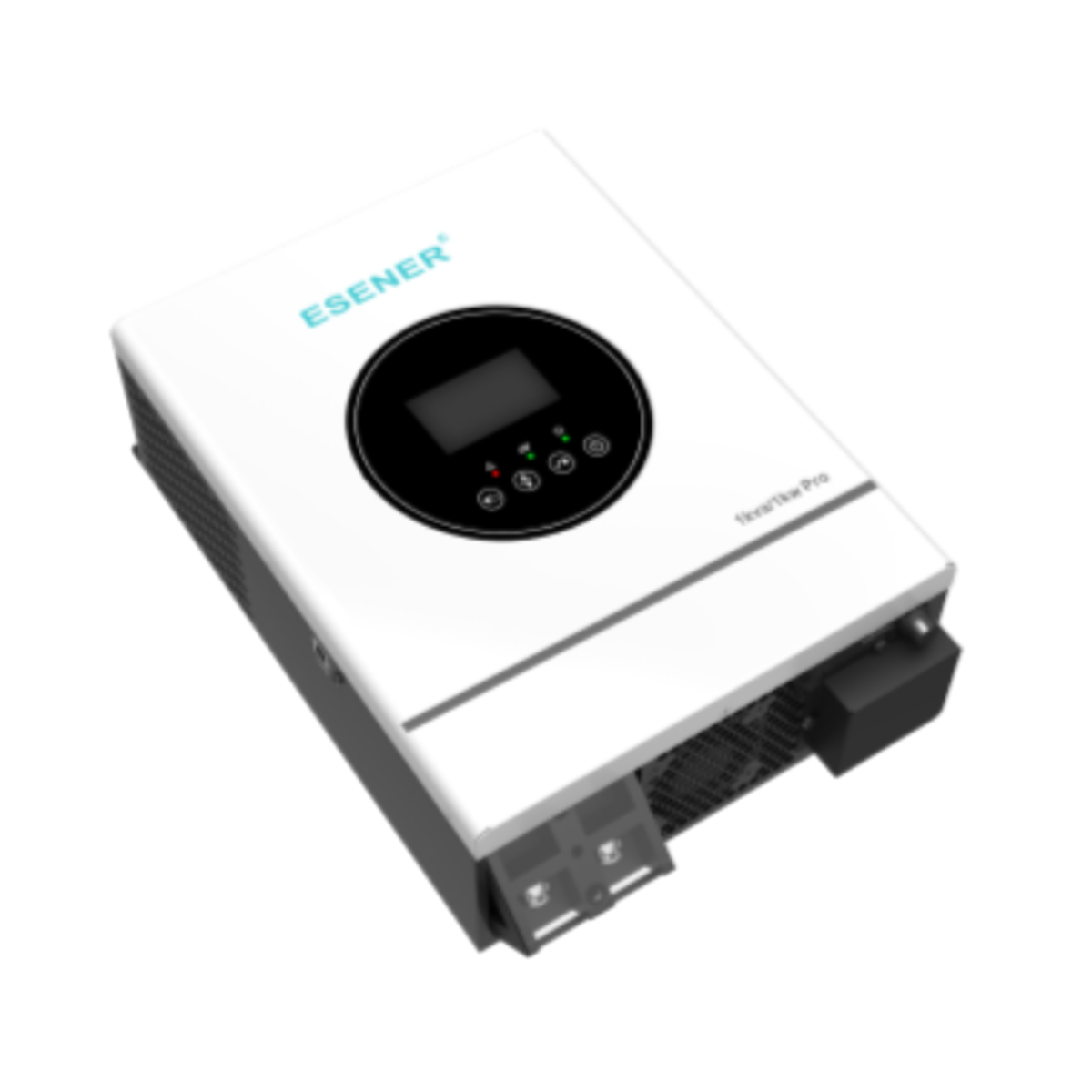

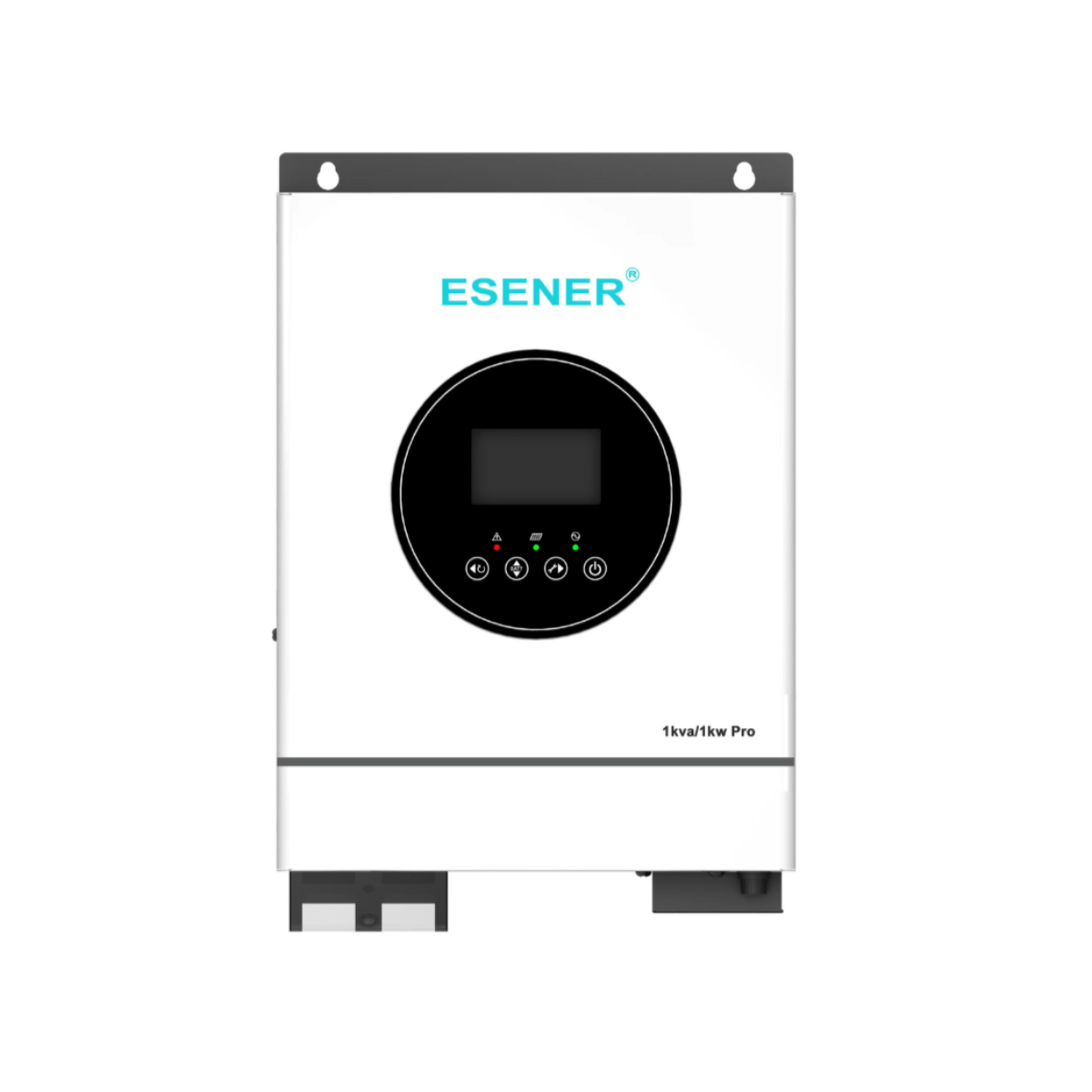

Esener 1kW Pro Inverter 12V

The Esener 1kW Compact Hybrid Inverter 12V delivers reliable, high-efficiency power in a compact form factor – ideal for small households, backup systems, and load-shedding solutions. Designed with a built-in 45A MPPT charge controller and pure sine wave output, it ensures stable performance for sensitive electronics and daily energy needs.

Features:

• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
• Bult in MPPT 40A/60A solar charge controller
• Combining solar system, AC utility, and battery power source to HIGH FREQUENCY SOLAR INVER supply continuous power
• Overload, short circuit and Deep discharge protection
• Cold start function
• Support USB, RS485, CAN monitoring function
• WIFI remote monitoring (optional)
• Compatible to generator
• PV/AC activation function
• PC communication function

Specifications:

• Default Battery System Voltage: 12V DC
• Output:
  • Rated Power: 1000VA/1000W
  • Surge Power: 2000VA
  • Waveform: Pure Sine Wave
  • AC Voltage Regulation (Batt. Mode): 230V AC (setting)
  • Peak Efficiency: 90 - 93%
  • Transfer Time: 10ms (UPS/VDE4105)/20ms (APL)
• Input:
  • Voltage: 230V AC
  • Selectable Voltage Range: 170~280V AC (UPS)/90~280V AC (APL)/184~253V AC (VDE)
  • Frequency Range: 50Hz/60Hz (auto sensing)
• Battery:
  • Normal Voltage: 12V DC
  • Floating Charge Voltage: 13.8V DC
  • Overcharge Protection: 15V DC
• Solar Charger & AC Charger:
  • Maximum PV Array Open Circuit Voltage: 105V DC
  • PV Array MPPT Voltage Range: 15~75V DC
  • Maximum PV Array Power: 600W
  • Maximum Solar Charge Current: 45A
  • Maximum AC Charge Current: 20A
  • Maximum Charge Current: 65A
• Communication: USB, RS-485/CAN, Wi-Fi (optional)
• Humidity: 5% to 95% relative humidity (non-condensing)
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature: -15°C to 60°C
• Certification & Standards: CE-EMC+LVD(EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2)
• Dimensions: 224 x 337 x 98mm
• Weight: 3.6kg
