Esener 2.56kWh Multifunctional Lithium Battery 25.6V

2.56kWh lithium battery with USB, DC and AC outputs

The Esener 2.56kWh lithium battery combines 100Ah of storage at a nominal 25.6V with USB, 12V DC and 220V AC outputs. This multifunctional unit provides connections for suitable small devices, with the AC output rated at 300W.

Wall or shelf mounting gives you a choice of installation positions, while side handles assist with handling and wall mounting. An integrated battery management system provides voltage protection and current limiting, together with protection against overcharging, over-discharging and excessive temperature. Low self-discharge helps retain stored energy between uses.

Series and parallel expansion supports a maximum 2S2P configuration. External charging options include a suitable 24V inverter, lithium battery charger or solar charge controller. Select charging equipment and settings that meet the battery's voltage and current requirements; do not assume compatibility from nominal voltage alone.

Features

• 2.56kWh storage: Provides a rated capacity of 100Ah at a nominal 25.6V.
• Multiple output connections: Includes USB, 12V DC and 220V AC outputs, with AC output rated at 300W.
• 1C performance: Supports continuous charging and discharging at up to 100A.
• Integrated battery management: Provides voltage protection, current limiting and overcharge, over-discharge and over-temperature protection.
• Series and parallel expansion: Supports configurations up to 2S2P.

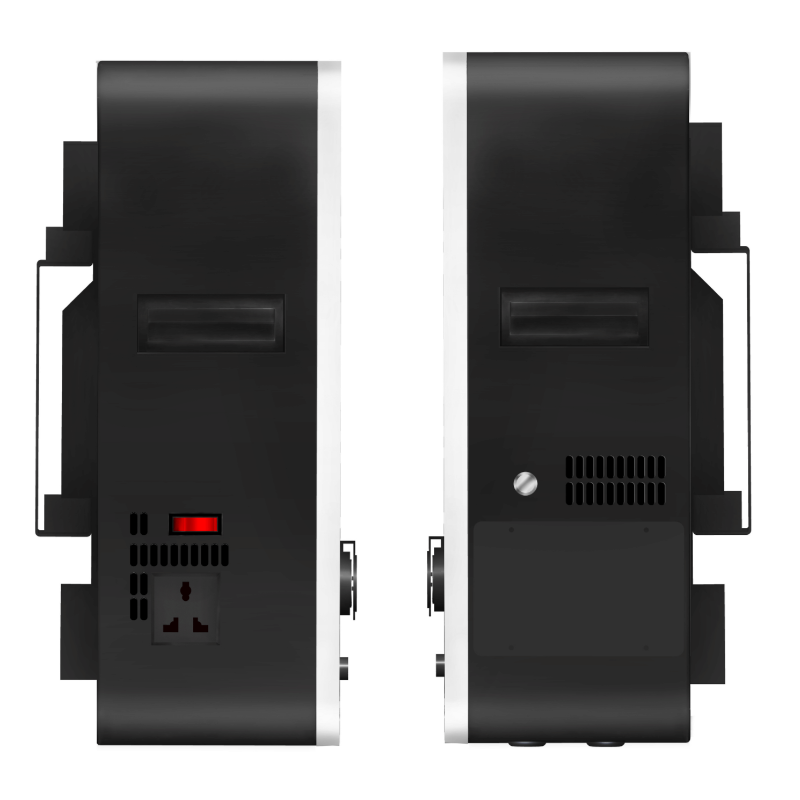

• Flexible mounting: Supports wall or shelf installation, with heavy-duty side handles for handling and mounting.
• Low self-discharge: Helps retain stored energy between uses.

Specifications

• Nominal energy storage: 2.56kWh
• Rated capacity (5HR): 100Ah
• Nominal voltage: 25.6V
• Discharge cut-off voltage: 23V
• Equalised charge voltage: 29.2V
• Maximum continuous charging current: 100A
• Maximum continuous discharging current: 100A
• C rating: 1C
• Display: LED
• Series and parallel connection: Maximum 2S2P
• Ports: 2 x parallel instruction ports
• Cells: New lithium-ion cylindrical cells
• Design life: Approximately 15 years
• Cycle life at 1C: Approximately 5000 cycles at 80% depth of discharge
• External charging equipment: Suitable 24V inverter, 24V lithium battery charger or 24V solar charge controller
• Outputs:
  • USB: 5V/1A and 5V/2.1A
  • Cigarette-lighter output: 12V/2–8A
  • Light output: 12V/120W/10A
  • AC output: 220V/300W
• Operating temperatures:
  • Charging: 0°C to 50°C
  • Discharging: -10°C to 50°C
  • Storage: -10°C to 50°C
• Protection:
  • Electronic circuit breaker
  • Battery management voltage protection
  • Current limiting
  • Overcharge, over-discharge and over-temperature protection
• Case material: White lacquered steel
• Warranty: 3 years
• Dimensions (W x D x H): 442 x 400 x 143mm
• Weight: 24.5kg
• Data sheet: Download data sheet (PDF)
