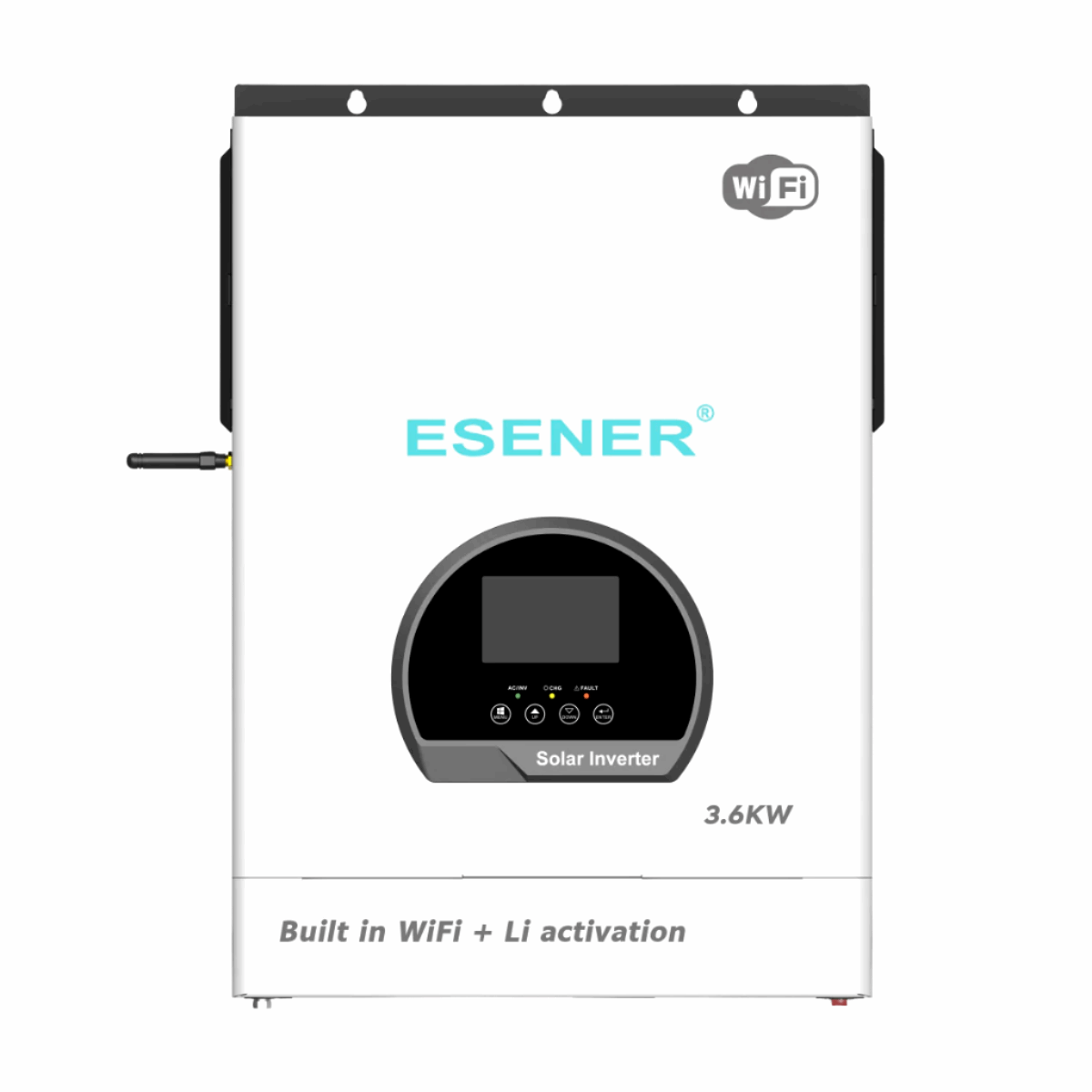

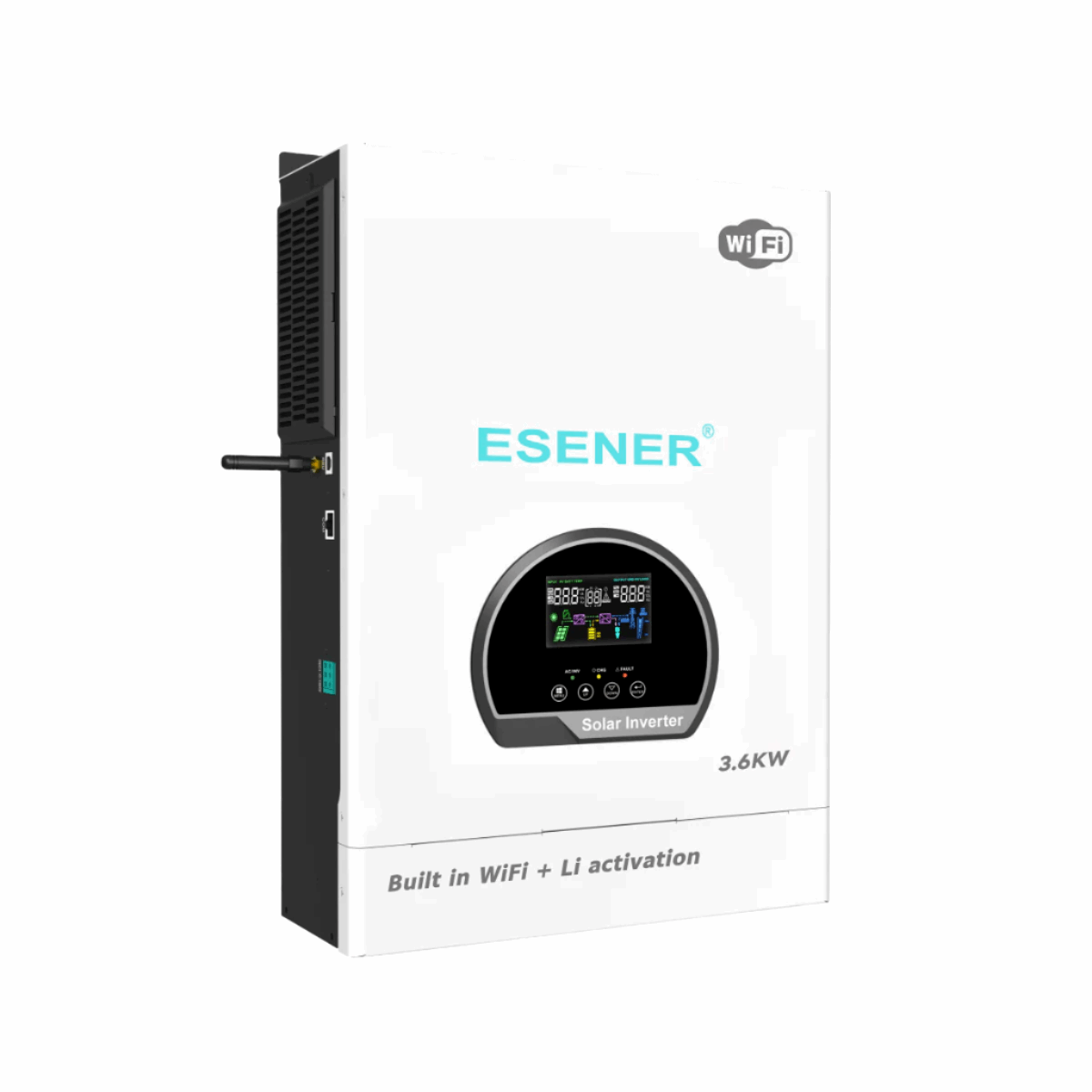

Esener 3.6kW Pro Inverter 24V

The Esener 3.6kW Pro Inverter 24V revolutionizes performance within its category, generating 3.6kW of pure sine wave energy with unparalleled efficiency and dependability. This cutting-edge inverter is designed for sophisticated energy solutions, boasting a 100A MPPT, expanded PV array and voltage range, and dual output capabilities for efficient load management. Its state-of-the-art design seamlessly integrates with modern solar systems, delivering exceptional results. With a sleek LCD screen, built-in WiFi, and BMS communication, the Esener 3.6kW Pro Inverter provides effortless monitoring and control. Its lithium activation feature allows for battery recovery via PV or AC power, solidifying its position as one of the top hybrid inverters on the market.

Features

• Pure sine wave output
• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc)
• Built-in MPPT solar charge controller
• Combining solar system, AC utility, and battery power source to supply continuous power
• Overload, short circuit and Deep discharge protection
• Cold start function
• Support USB, RS485, CAN monitoring function
• Wi-Fi remote monitoring (Built in Wi-Fi and Bluetooth module and antenna)
• PV/AC activation function
• BMS communication function (CAN Port)
• Dual output for smart load management

Specifications

• Nominal Battery System Voltage: 24V DC
• Output:
  • Rated Power (Main + Second Load): 3600VA/3600W
  • Battery Mode (Main+Second Load): 3000VA/3000W
  • Surge Power: 6000W
  • Waveform: Pure Sine Wave
  • AC Voltage Regulation (Batt.Mode): 230V AC ±5% (setting)
  • Peak Efficiency: 90 - 93%
  • Transfer Time: 10ms (UPS/VDE4105)/20ms (APL)
• Input:
  • Voltage: 230V AC ±5%
  • Selectable Voltage Range: 170~280V AC (UPS)/90~280V AC (APL)/184~253V AC (VED4105)
  • Frequency Range: 50Hz/60Hz (auto sensing)
• Battery:
  • Normal Voltage: 24V DC
  • Floating Charge Voltage: 27.4V DC
  • Overcharge Protection: 30V DC
• Solar Charger & AC Charger:
  • Maximum PV Array Open Circuit Voltage: 400V DC
  • Maximum PV Input Current: 18A
  • Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
  • Maximum PV Array Power: 4000W
  • PV Array MPPT Voltage Range: 30~320V DC
  • Maximum Solar Charge Current: 100A
  • Maximum AC Charge Current: 60A
  • Maximum Charge Current: 100A
• Communication: USB/WIFI/Bluetooth/RS-485/CAN
• Humidity: 5% to 95% relative humidity (non-condensing)
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature: -15°C to 60°C
• Protections:
  • Overload protection
  • Short circuit protection
  • Deep discharge protection
• Certification: CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2)
• Dimensions: 318 x 454 x 122.5mm
• Weight: 7.4kg
