5.12kWh wall mount lithium battery for solar storage
The Esener 5.12kWh wall mount lithium battery provides 100Ah of storage at a nominal 51.2V for solar and backup power systems. Its lithium iron phosphate cells and integrated battery management system combine energy storage with voltage protection and current limiting.
Wall-mount installation keeps the battery off the floor, while an LCD display provides access to battery information and selectable inverter communication protocols. CAN-bus and RS-485 battery-link connections support communication with suitable system equipment. Parallel connection supports up to 15 packs with full communication, allowing storage capacity to grow as your energy requirements change.
Features
- 5.12kWh storage: Provides a rated capacity of 100Ah at 51.2V.
- 100A continuous current: Supports continuous charging and discharging at up to 100A.
- Integrated battery management: Includes voltage protection and current limiting.
- Selectable inverter protocols: Allows supported communication protocols to be selected on the LCD screen.
- Parallel expansion: Supports up to 15 battery packs with full communication.
- Wall-mount installation: Keeps the battery mounted off the floor.
- Low self-discharge: Helps retain stored energy between uses.
- Built-in circuit breaker: Provides an integrated charging and discharging circuit breaker.
Specifications
- Nominal energy storage: 5.12kWh
- Rated capacity (5HR): 100Ah
- Nominal voltage: 51.2V
- Discharge cut-off voltage: 45.0V
- Equalised charge voltage: 57.6V
- Maximum continuous charging current: 100A
- Maximum continuous discharging current: 100A
- C rating: 1C
- Display: LCD
- Parallel connection: Up to 15 packs with full communication

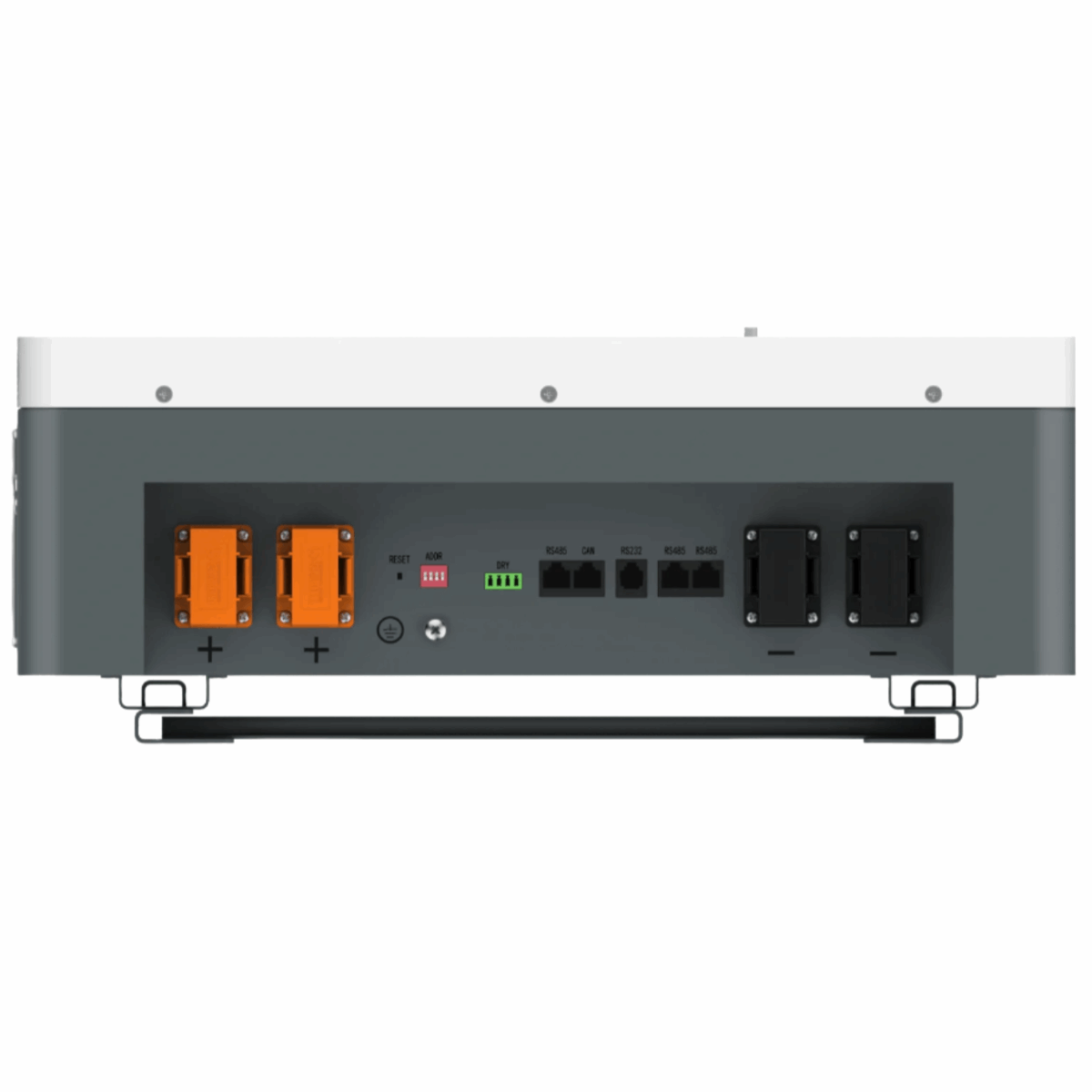

- Communication ports:
- 1 x CAN-bus port
- 1 x RS-485 battery-link port
- 2 x parallel instruction ports
- Cells: New lithium-ion prismatic cells
- Battery chemistry: Lithium iron phosphate (LiFePO4)
- Design life: Approximately 15 years
- Cycle life: More than 6000 cycles at 25°C, 0.5C and 80% depth of discharge
- Operating temperatures:
- Charging: 0°C to 55°C
- Discharging: -20°C to 55°C
- Storage: -10°C to 50°C
- Protection:
- Electronic circuit breaker
- Battery management voltage protection
- Current limiting
- Case material: White lacquered steel
- Dimensions (W x D x H): 470 x 580 x 180mm
- Weight: 45kg
- Warranty: 5 years
- Data sheet: Download data sheet (PDF)
What's in the box
What's in the box
Warranty
Warranty
5 Years
FAQ
FAQ
What is 5.12kWh Wall Mount Lithium Battery 51.2V and what does it do?
The 5.12kWh Wall Mount Lithium Battery 51.2V is a lithium iron phosphate battery that provides 5.12kWh of energy storage with a rated capacity of 100Ah at 51.2V, designed for solar and backup power systems, and supports continuous charging and discharging at up to 100A. It features wall-mount installation, an LCD display for monitoring, and can be connected in parallel with up to 15 packs for expanded capacity.
What are the key features of 5.12kWh Wall Mount Lithium Battery 51.2V?
The 5.12kWh Wall Mount Lithium Battery 51.2V offers 100Ah of storage at a nominal voltage of 51.2V, supports continuous charging and discharging at up to 100A, and can be connected in parallel with up to 15 packs for expanded capacity. It features an LCD display for monitoring, built-in protection for over-charge and over-discharge, and a design life of approximately 15 years.
How do I use 5.12kWh Wall Mount Lithium Battery 51.2V?
To use the 5.12kWh Wall Mount Lithium Battery 51.2V, install it on a wall using the provided heavy-duty side handles, connect it to your solar or backup power system via the CAN-bus or RS-485 ports, and monitor its performance through the LCD display. Ensure that the battery is charged within the specified temperature range and follow the manufacturer's guidelines for parallel connections if expanding your setup.
What sizes or variants are available for 5.12kWh Wall Mount Lithium Battery 51.2V?
The 5.12kWh Wall Mount Lithium Battery 51.2V is available in a single size with dimensions of 470 x 580 x 180mm and weighs 45kg.
What is included in the box with 5.12kWh Wall Mount Lithium Battery 51.2V?
The box includes one 5.12kWh Wall Mount Lithium Battery 51.2V.
