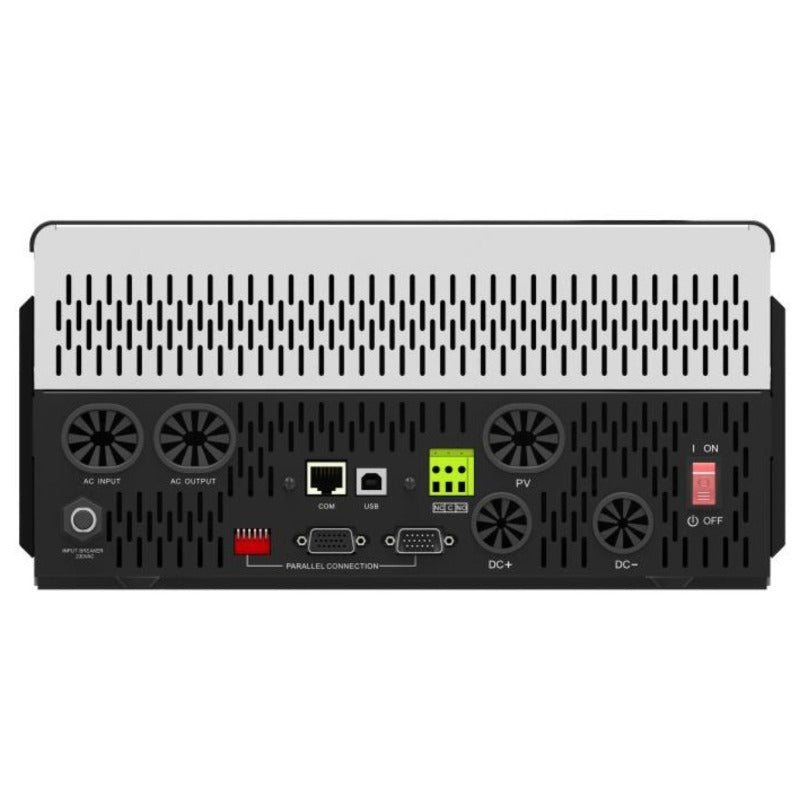

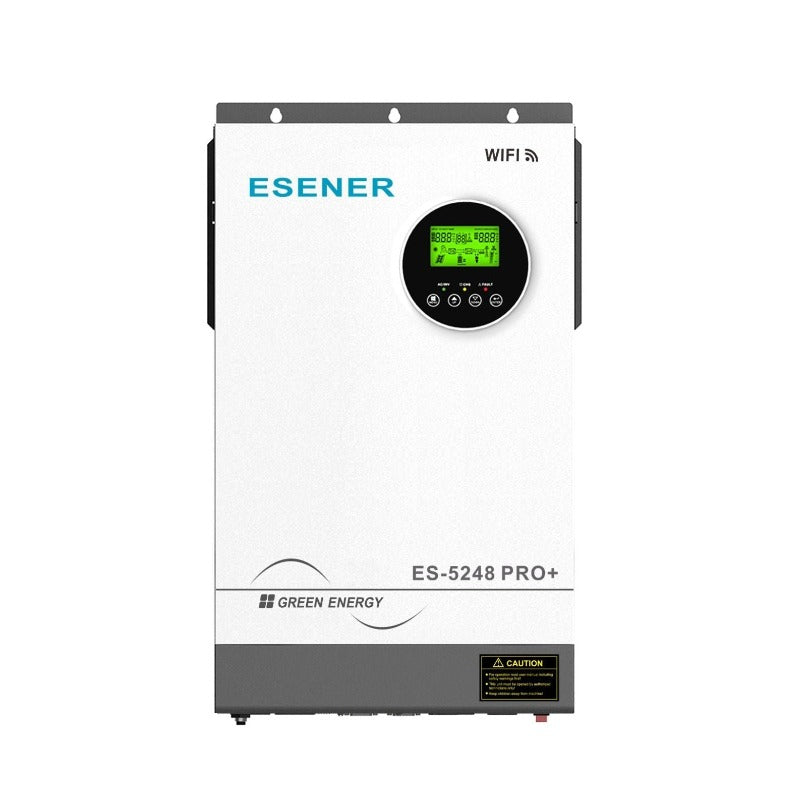

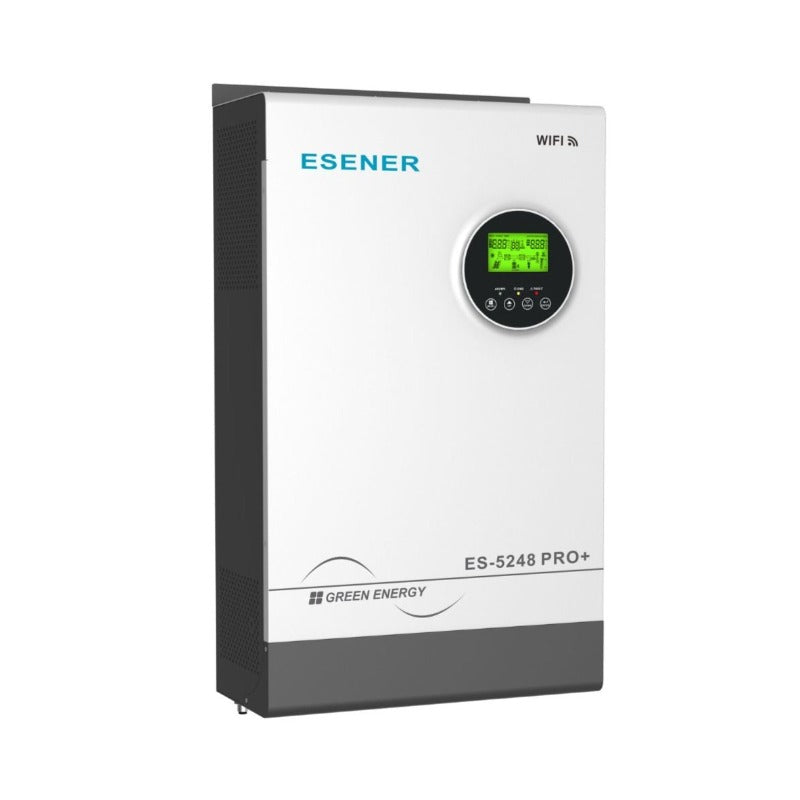

Esener 5.2kW Hybrid Inverter 48V

The Esener 5.2kW Hybrid Inverter 48V is a multi-function device, combining an inverter, a MPPT solar charger, and a battery charger in one convenient unit. This system is capable of functioning without the need for a battery, relying on solar, AC utility, and battery power sources to deliver constant energy.

Features

• Pure sine wave output
• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)
• Built-in MPPT solar charge controller
• Max PV Array Open Circuit Voltage: 450V
• Can provide the power to the load without battery
• Combining solar system, AC utility, and battery power source to supply continuous power
• Overload, short circuit and deep discharge protection
• Cold start function
• Supports USB, RS485 monitoring function
• Parallel operation with up to 3 units
• Wi-Fi remote monitoring (optional)

Specifications

• Nominal Battery System Voltage: 48V DC
• Output:
  • Rated Power: 5200VA/5200W
  • Surge Power: 10400W
  • Waveform: Pure Sine Wave
  • Output Voltage Regulation (Batt. Mode): 230V AC ±5% (setting)
  • Peak Efficiency: 90%
  • Transfer Time: 10ms (UPS/VDE4105)/20ms (APL)
• Input:
  • Voltage: 230V AC ±5%
  • Selectable Voltage Range: 170~280V AC (UPS)/90~280V AC (APL)/184~253V AC (VED4105)
  • Frequency Range: 50Hz/60Hz (auto sensing)
• Battery:
  • Normal Voltage: 48V DC
  • Floating Charge Voltage: 54.8V DC
  • Overcharge Protection: 60V DC
• Solar Charger & AC Charger:
  • Charging Algorithm: 3-Step (Flooded Battery, AGM/GEL/LEAD Battery), 4-Step (Li)
  • Maximum PV Array Open Circuit Voltage: 450V DC
  • Maximum PV Array Power: 5000W/6000W
  • PV Array MPPT Voltage Range: 150~430V DC
  • PV Max Input Current: 27A
  • Maximum Solar Charge Current: 80A/100A
  • Maximum AC Charge Current: 60A/80A
  • Maximum Charge Current: 80A/100A
• Communication: USB Wi-Fi, RS-485/CAN
• Humidity: 5% to 95% relative humidity (non-condensing)
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature: -15°C to 60°C
• Protections:
  • Overload protection
  • Short circuit protection
  • Deep discharge protection
• Dimensions: 309 x 505 x 147mm
• Weight: 14kg
