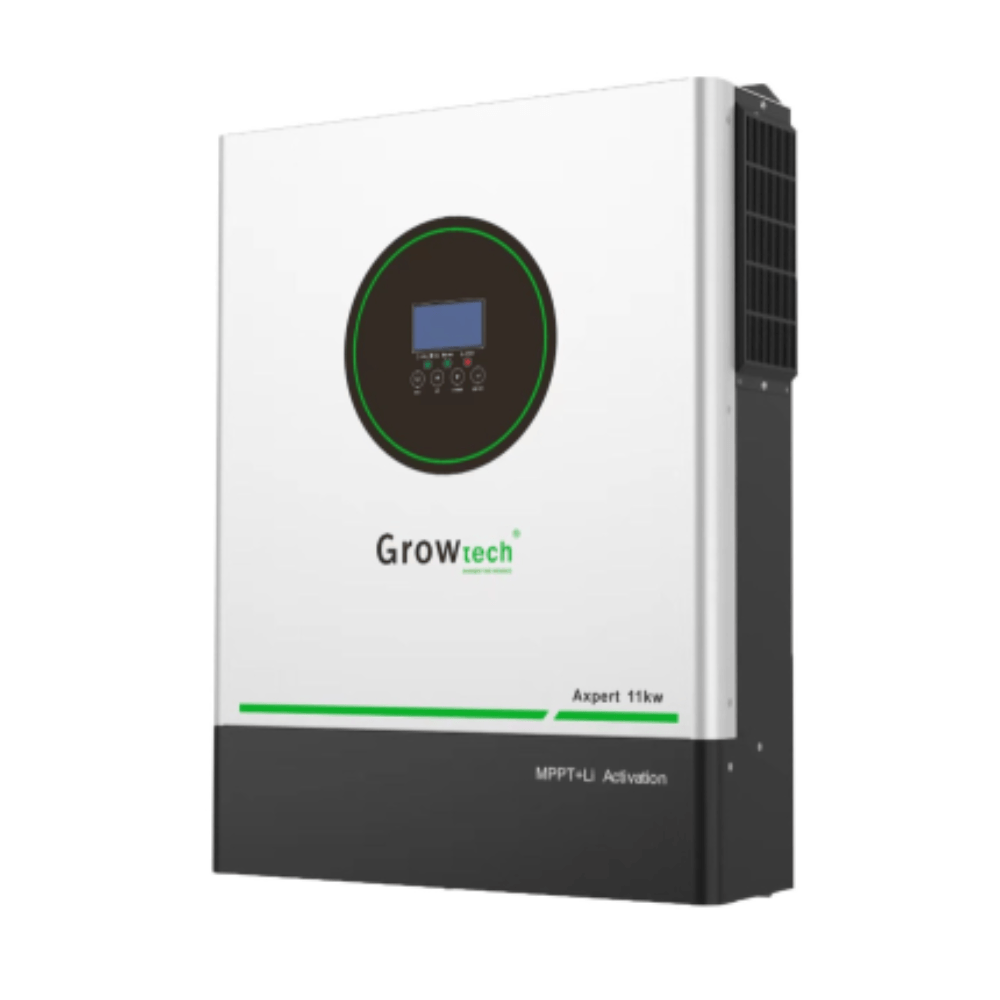

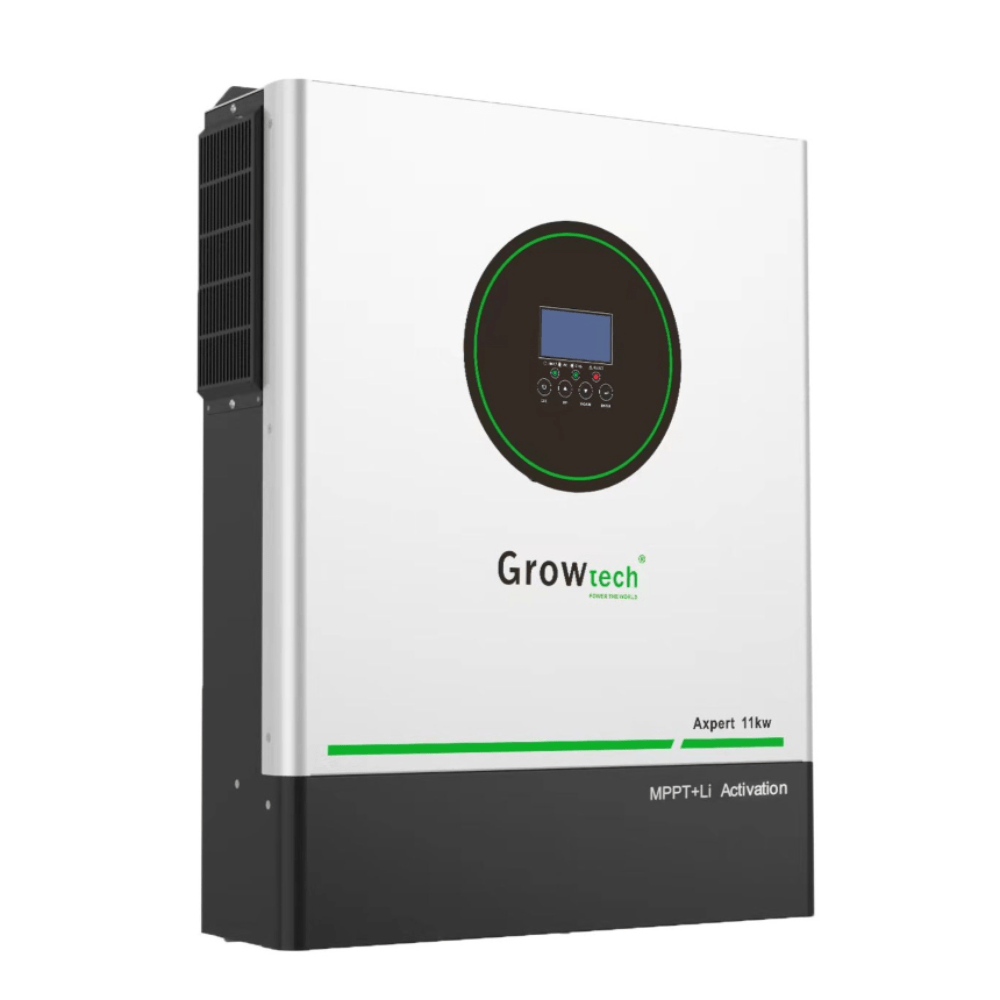

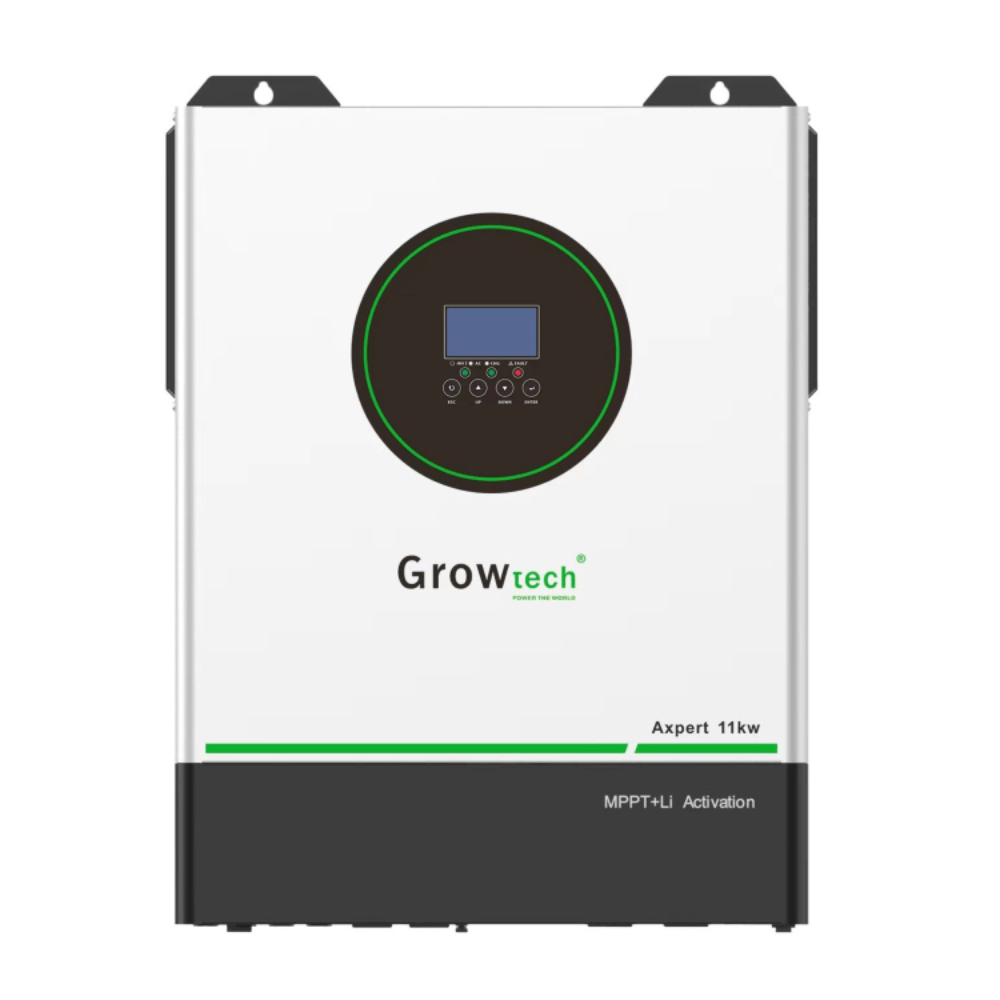

Growtech Axpert GT 11kW Inverter 48V

11kW Pure Sine Wave Inverter with 160A MPPT Controller & Lithium Activation

The Growtech Axpert 11kW Inverter 48V delivers exceptional power and performance for demanding residential and commercial applications. With 11kW of pure sine wave output, this advanced inverter features a robust 160A MPPT controller supporting up to 5600W of PV array power, ensuring optimal solar energy conversion. The lithium activation function can restore batteries from protection mode, while optional built-in WiFi enables convenient remote monitoring and management.

Features

• Pure Sine Wave Output: Provides stable, clean 11kW energy for all electrical loads
• Lithium Activation Function: Revives batteries from protection mode (via PV or Utility)
• Built-in Dual MPPT Controllers: 2 MPPT support up to 11000W of max PV input power
• High Solar Input Current 36A: Enabling the connection of more solar panels for increased energy generation
• Wide MPPT Voltage Range: Operates efficiently with an input range of 60-500VDC
• Optional WiFi Connectivity: Enables remote monitoring and management for added convenience
• High Charge/Discharge Capability: Charge current up to 160A and battery discharge current up to 220A
• Standard LCD Display: Offers clear and essential information for system monitoring and settings
• Protection Features: Safeguards against overload, short circuit, and deep discharge

Specifications

• Capacity: 11kVA/11kW
• Maximum PV Input Power: 11kW
• Parallel Capability: No
• Lithium Battery Activation: YES (via PV or Utility)
• Lithium Battery Communication: YES (RS485)
• Built-in WiFi: Optional
• Input:
  • Nominal Voltage: 230VAC
  • Acceptable Voltage Range: 170~280VAC (for personal Computer)/90~280VAC (for Home Appliances)
  • Frequency: 50/60 Hz (Auto sensing)
• Output:
  • Nominal Voltage: 230/230/240VAC
  • Surge Power: 22000VA
  • Frequency: 50/60 Hz
  • Waveform: Pure Sine Wave
  • Transfer Time: 10ms (for personal Computer)/20ms (for Home Appliances)
  • Peak Efficiency: 98%
  • Overload Protection: 5s@ ≥140% load; 10s@100~140% load
  • Admissible Power Factor: 0.6~1 (inductive or capacitive)
• Battery:
  • Battery Voltage: 48VDC
  • Maximum Discharge Current: 220A
  • Floating Charge Voltage: 54VDC
  • OverCharge Protection: 64VDC
  • Charging Method: CC/CV
• Solar Charger & AC Charger:
  • Solar Charger Type: MPPT
  • Max PV Array Power: 5500W*2
  • Max. PV Array Open Circuit Voltage: 500VDC
  • PV Array MPPT Voltage Range: 60VDC~500VDC
  • Max. Solar Input Current: 18A*2
  • Max. Solar Charge Current: 160A
  • Max. AC Charge Current: 120A
  • Max. Charge Current: 160A
• Physical:
  • Dimensions: 540 x 403 x 122mm
  • Weight: 14.8kg
  • Communication Interface: RS232/RS485/DRY CONTACT
• LCD: YES
• Environment:
  • Operating Temperature Range: -10°C to 55°C
  • Storage Temperature: -15°C ~ 60°C
  • Humidity: 5% to 95% Relative Humidity (Non-condensing)
  • Ingress Protection: IP21
