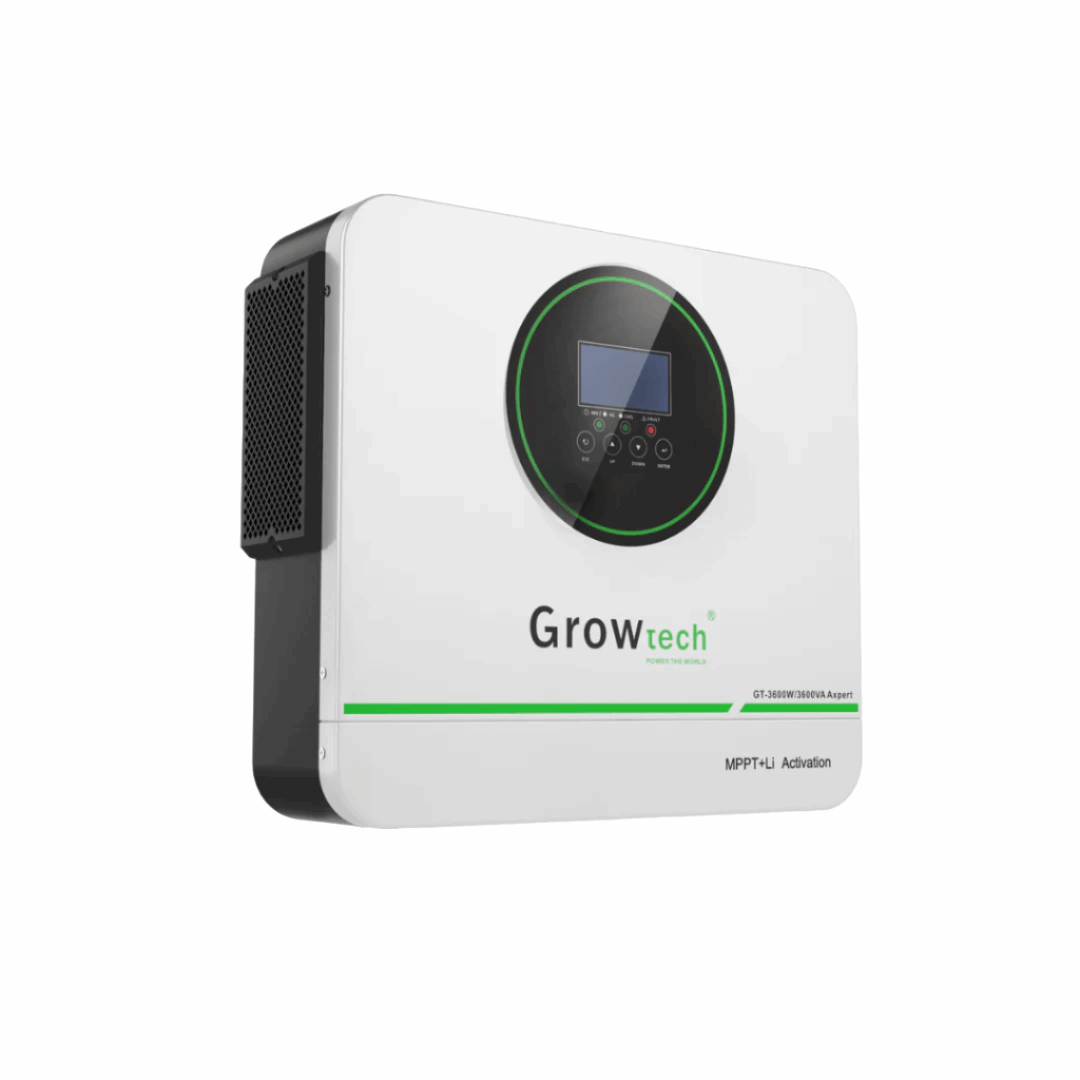

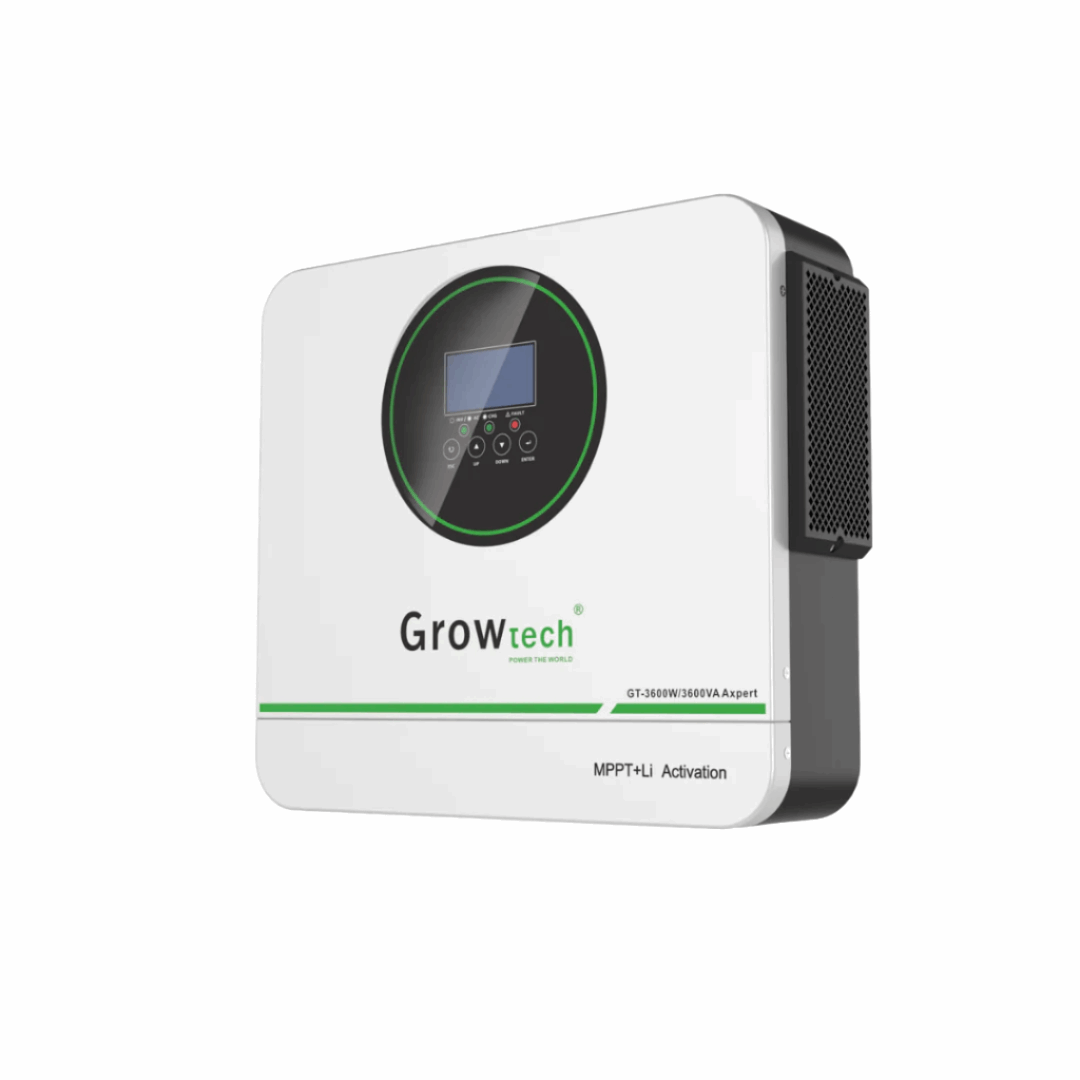

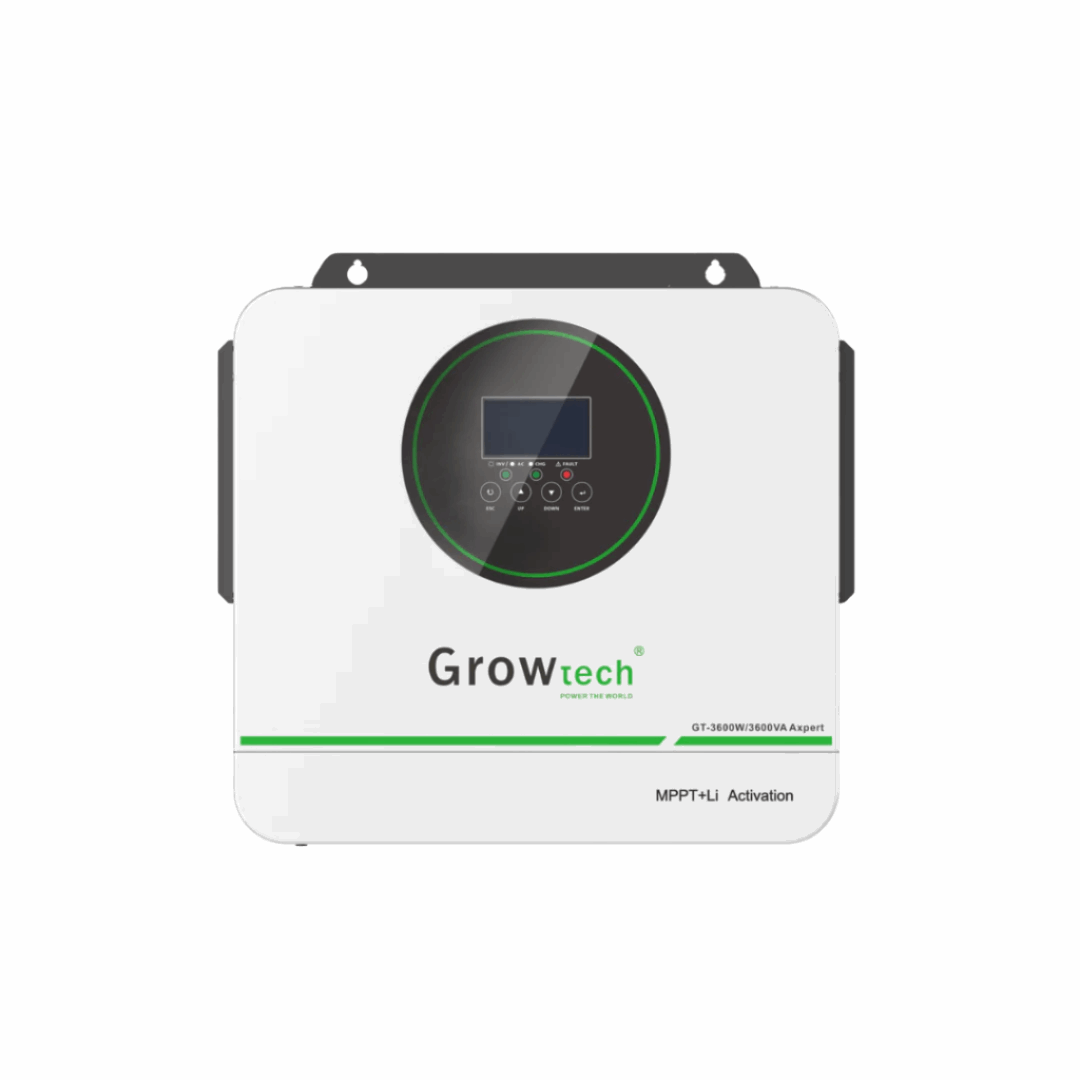

Growtech Axpert GT 3.6kW Inverter 24V

3.6kW inverter with solar charging and lithium activation

The Growtech Axpert GT 3.6kW inverter combines pure sine wave AC output with a built-in 100A MPPT solar charge controller for residential and small commercial power systems. Its 24V battery system supports solar and AC charging, with a maximum PV array power of 4000W.

Lithium battery activation can help recover a battery that has entered protection mode after over-discharge. An LCD display puts system information and settings on the inverter, while optional Wi-Fi monitoring is available through a separate dongle. With no parallel capability, this model is intended for single-inverter installations.

Features

• Pure sine wave output: Supplies 3.6kW of rated power with a pure sine wave AC output.
• 100A MPPT controller: Supports a PV array of up to 4000W for solar charging.
• Lithium battery activation: Can reactivate lithium batteries that have entered protection mode after over-discharge.
• 24V battery system: Designed for a 24V DC battery system, with solar and AC charging options.
• Optional Wi-Fi monitoring: Supports remote monitoring with a separately purchased Wi-Fi dongle.
• LCD display: Provides access to system information and inverter settings.
• Built-in protection: Includes overload, short-circuit and deep-discharge protection.
• Single-unit operation: Does not support parallel inverter operation.

Specifications

• Capacity: 3600VA/3600W
• Parallel capability: No
• Lithium battery activation: Yes
• Input:
  • Nominal voltage: 220/230V AC ±5%
  • Acceptable voltage range: 170–280V AC (PC) / 90–280V AC (home appliances)
  • Frequency: 50Hz/60Hz, auto sensing
• Output:
  • Nominal voltage: 220/230V AC ±5%
  • Rated power: 3600VA/3600W
  • Surge power: 7000W
  • Waveform: Pure sine wave
  • Frequency: 50/60Hz
  • Transfer time: 10ms (PC) / 20ms (home appliances)
  • Peak efficiency, PV to inverter: 96%
  • Peak efficiency, battery to inverter: 93%
  • Overload protection: 5s at ≥140% load; 10s at 100–140% load
  • Crest factor: 3:1
  • Admissible power factor: 0.6–1, inductive or capacitive
• Battery:
  • Battery voltage: 24V DC
  • Floating charge voltage: 27V DC
  • Overcharge protection: 32V DC
  • Charging method: CC/CV
• Solar and AC charging:
  • Solar charger type: MPPT
  • Maximum PV array power: 4000W
  • Maximum PV array open-circuit voltage: 500V DC
  • PV array MPPT voltage range: 30–500V DC
  • Maximum PV input current: 15A
  • Maximum solar charge current: 100A
  • Maximum AC charge current: 60A
  • Maximum charge current: 100A
• Communication interface: RJ45 for Wi-Fi
• Humidity: 5–95% relative humidity, non-condensing
• Operating temperature: -10°C to 55°C
• Storage temperature: -15°C to 60°C
• Dimensions: 338 x 310 x 100mm
• Weight: 4.4kg
• Warranty: 1 year
• Data sheet: Download data sheet (PDF)
