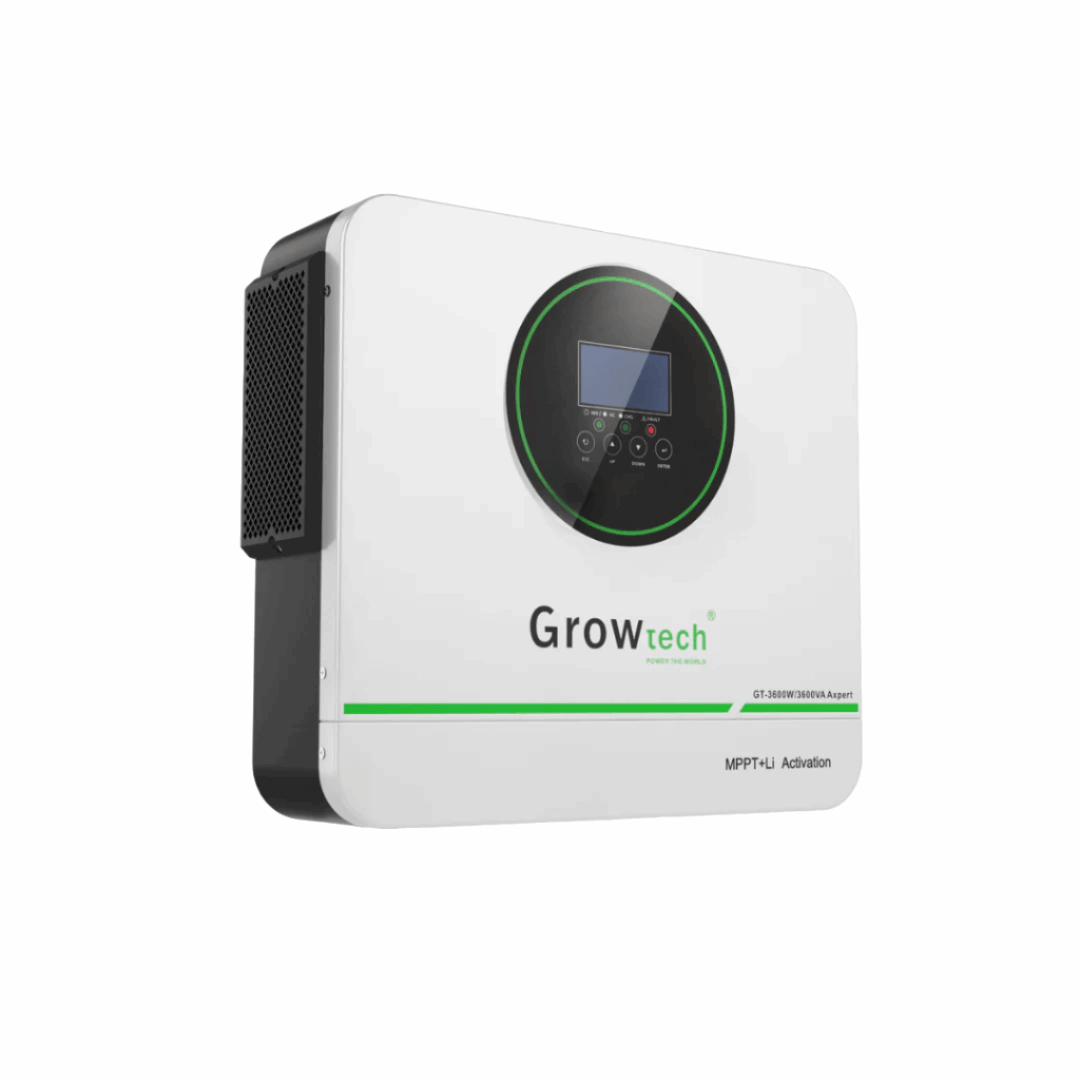

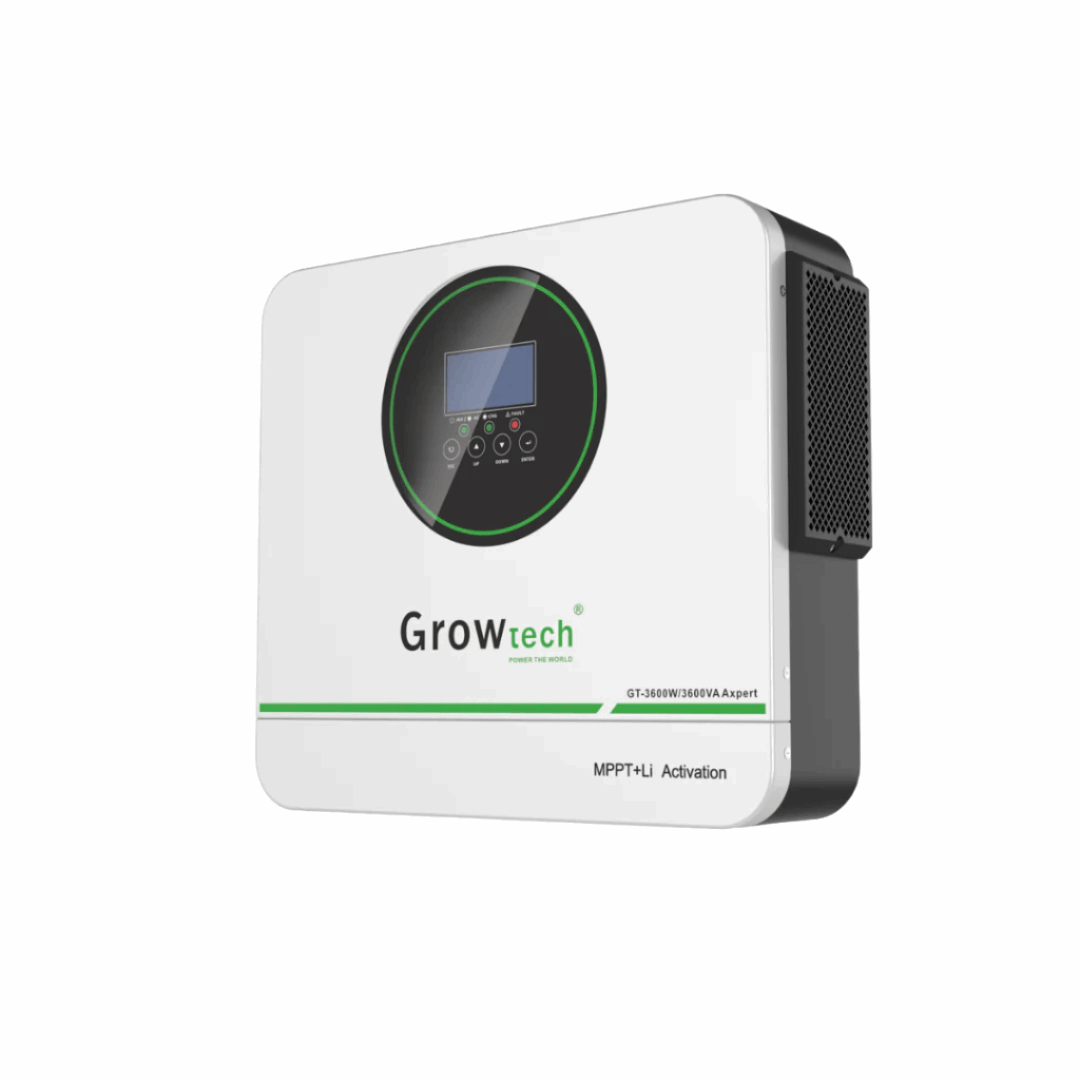

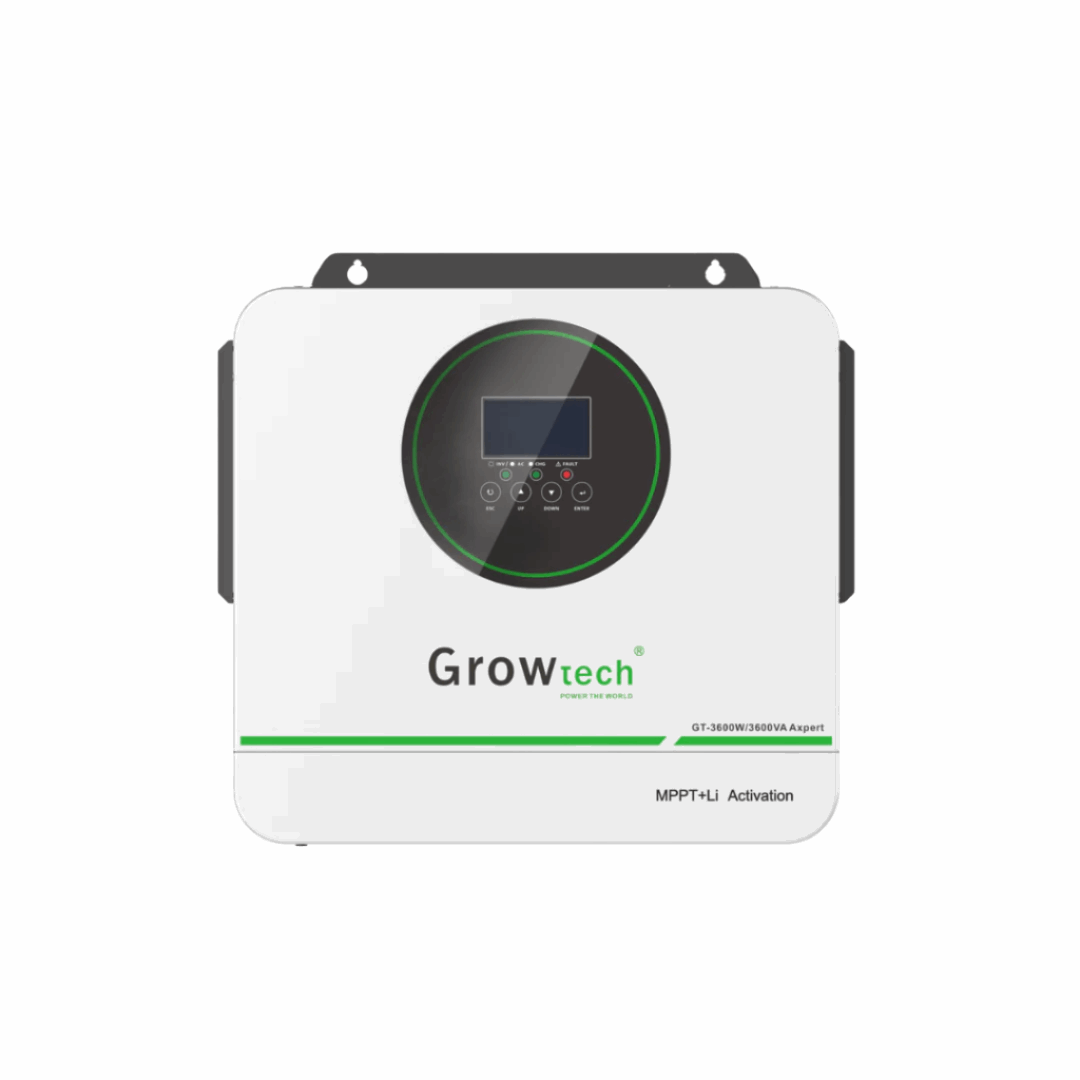

Growtech Axpert GT 3.6kW Inverter 24V

The Growtech Axpert GT 3.6kW Inverter 24V offers exceptional performance at an unbeatable price, making it a top choice for budget-conscious consumers. Despite its affordability, this inverter boasts advanced features, including a Lithium activation function that can restore batteries from protection mode after over-discharge, ensuring continuous energy storage and usage. With a pure sine wave output of 3.6kW, a 100A MPPT controller supporting up to 4000W of PV array power, and a wide MPPT voltage range of 30-500VDC, this inverter provides reliable and efficient energy management for residential and small commercial installations. Optional Wi-Fi connectivity further adds convenience by allowing for remote monitoring.

Features

• Pure Sine Wave Output: Provides stable, clean energy for all electrical loads
• Lithium Activation Function: Revives batteries from protection mode
• Built-in MPPT Controller: Supports up to 4000W of PV array power for optimized solar energy conversion
• Wide MPPT Voltage Range: Operates efficiently with an input range of 30-500VDC
• Optional WiFi Connectivity: Enables remote monitoring and management for added convenience
• Standard LCD Display: Offers clear and essential information for system monitoring and settings
• Compact Design: Space-saving and easy to install, ideal for smaller setups
• Protection Features: Safeguards against overload, short circuit, and deep discharge

Specifications

• Capacity: 3600VA/3600W
• Parallel Capability: No
• Lithium Battery Activation: Yes
• Input:
  • Nominal Voltage: 220/230V AC ±5%
  • Acceptable Voltage Range: 170~280V (for PC)/90~280V AC (for home appliances)
  • Frequency: 50Hz/60Hz (auto sensing)
• Output:
  • Nominal Voltage: 220/230V AC ±5%
  • Rated Power: 3600VA/3600W
  • Surge Power: 7000W
  • Waveform: Pure Sine Wave
  • Frequency: 50/60Hz
  • Transfer Time: 10ms(for PC)/20ms (for home appliances)
  • Peak Efficiency (PV to inverter): 96%
  • Peak Efficiency (battery to inverter): 93%
  • Overload Protection: 5s@ ≥140% load; 10s@100-140% load
  • Crest Factor: 3:1
  • Admissible Power Factor: 0.6~1 (inductive or capacitive)
• Battery:
  • Battery Voltage: 24V DC
  • Floating Charge Voltage: 27V DC
  • Overcharge Protection: 32V DC
  • Charging Method: CC/CV
• Solar Charger & AC Charger:
  • Solar Charger Type: MPPT
  • Maximum PV Array Power: 4000W
  • Maximum PV Array Open Circuit Voltage: 500V DC
  • PV Array MPPT Voltage Range: 30~500V DC
  • PV Max Input Current: 15A
  • Maximum Solar Charge Current: 100A
  • Maximum AC Charge Current: 60A
  • Maximum Charge Current: 100A
• Communication Interface: RJ45 for Wi-Fi
• Humidity: 5% to 95% relative humidity (non-condensing)
• Operating Temperature Range: -10°C to 55°C
• Storage Temperature: -15°C to 60°C
• Dimensions: 338 x 310 x 100mm
• Weight: 4.4kg
