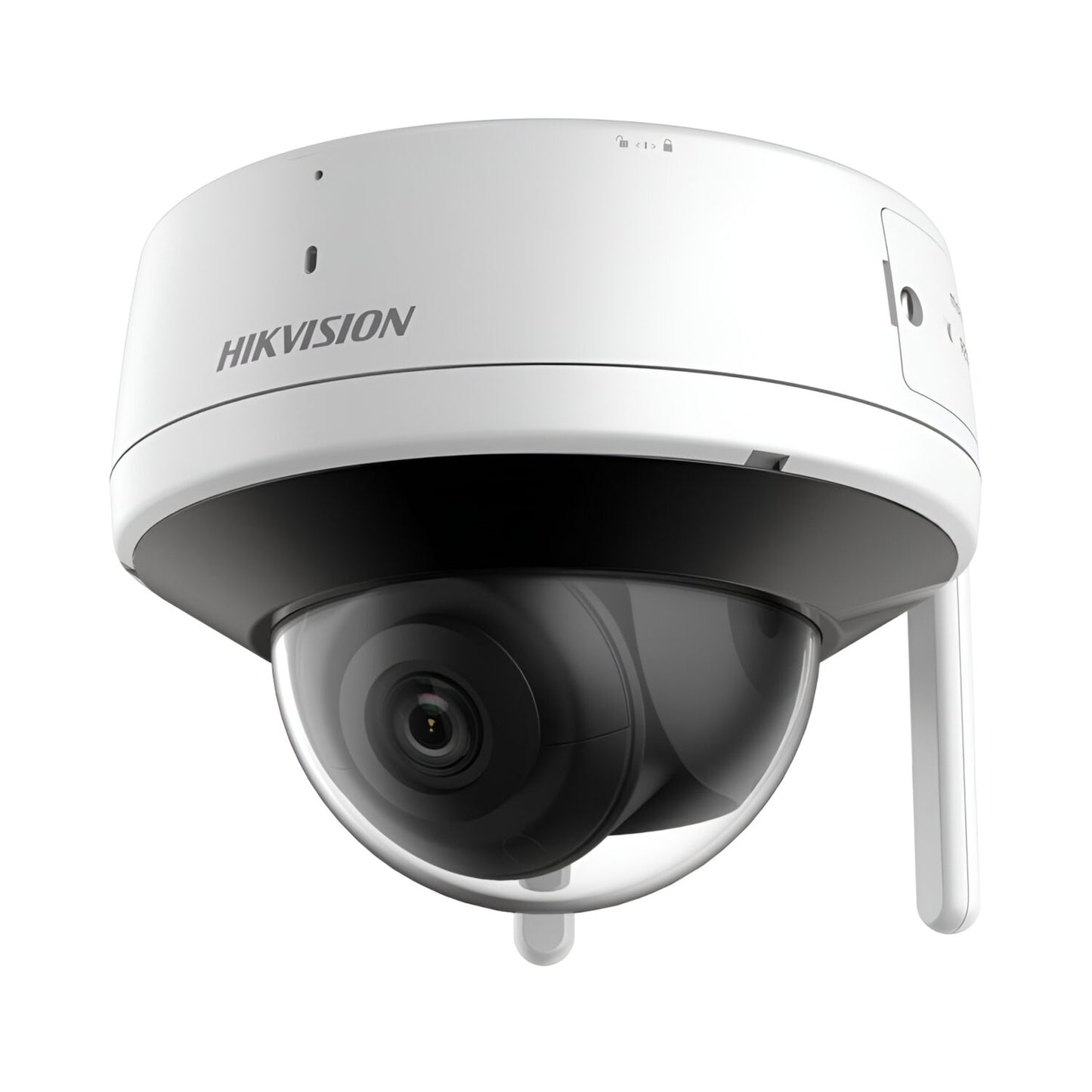

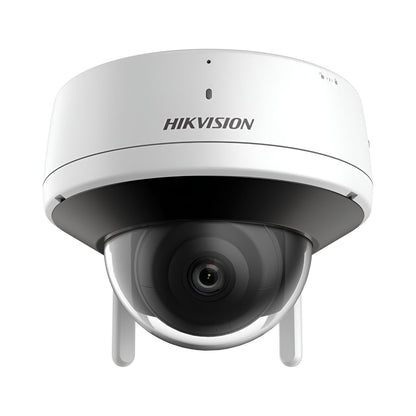

Hikvision Fixed Dome Outdoor Security Camera 4mm Lens 4MP

High-quality imaging with 4 MP resolution
Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
Efficient H.265 compression technology
EXIR 2.0, advanced infrared technology with long IR distance
Water and dust resistant (IP66)
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB

Camera:
Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2560 × 1440 (4MP)
Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/10,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Lens:
Lens Type: Fixed focal lens (4mm)
Focal Length & Field of View (FOV): Horizontal FOV 79°, Vertical FOV 40°, Diagonal FOV 94°
Aperture: F1.6
Iris Type: Fixed
Lens Mount: M12
Depth of Field: 4mm: 1.5m to ∞
DORI:
4mm: Detection (D): 78m, Observation (O): 31m, Recognition: 15m, Identification: 7m
Illuminator:
Supplement Light Type: IR
IR Wavelength: 850nm
Supplement Light Range: Up to 30m
Smart Supplement Light: Yes
Video:
Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720
Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360), 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Video Compression: Main Stream: H.264 Sub-Stream: H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
Audio:
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate:64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8kHz / 16kHz
Environment Noise Filtering: Yes
Network:
Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Client: Hik-Connect (Wired), iVMS-4200 (Wireless)
Security Features: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
Wi-Fi:
Transfer Rate: 11n: up to 300 Mbps
Wi-Fi Protocols: IEEE 802.11b/g/n
Frequency Range: 2.412 GHz to 2.472 GHz
Channel Bandwidth: 20 MHz
Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
Wireless Range: Up to 120m (varies based on environment)
Antenna: 2 antennas
Image:
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness
Day/Night Switch: Auto, Schedule, Day, Night
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, 3D DNR
Interface:
Built-in Microphone: Yes
Built-in Speaker: Yes
On-Board Storage: Supports microSD/microSDHC/microSDXC cards (up to 512GB)
Reset Key: Yes
Ethernet Interface: 1 × RJ45 10M/100M self-adaptive Ethernet port
Event:
Basic Events: Motion detection (human and vehicle classification), exception alerts
Linkage Methods: Upload to memory card, notify surveillance centre, trigger capture, audible warning, auto-tracking lite
General:
Power Supply: 12V DC ±10%, 0.5A, max. 6W, Ø 5.5mm coaxial power plug, reverse polarity protection
Operating Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
Storage Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
Material: Base: Metal, Front Cover: Polycarbonate, Back Cover: Polycarbonate
Dimensions: Ø 12.6 × 9.61 cm
Weight: Approx. 590g
Certifications & Compliance:
EMC Compliance: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014);
IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
RF Compliance: FCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328
V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); MIC (JPN)
Safety Compliance: UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1: 2014/A11:2017)
Environmental Compliance: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 WEEE (2012/19/EU)
Protection Rating: IP66 (IEC 60529-2013)

Hikvision Fixed Dome Outdoor Security Camera, 4mm Lens, 4MP x1
User Manual x1

12 Months
