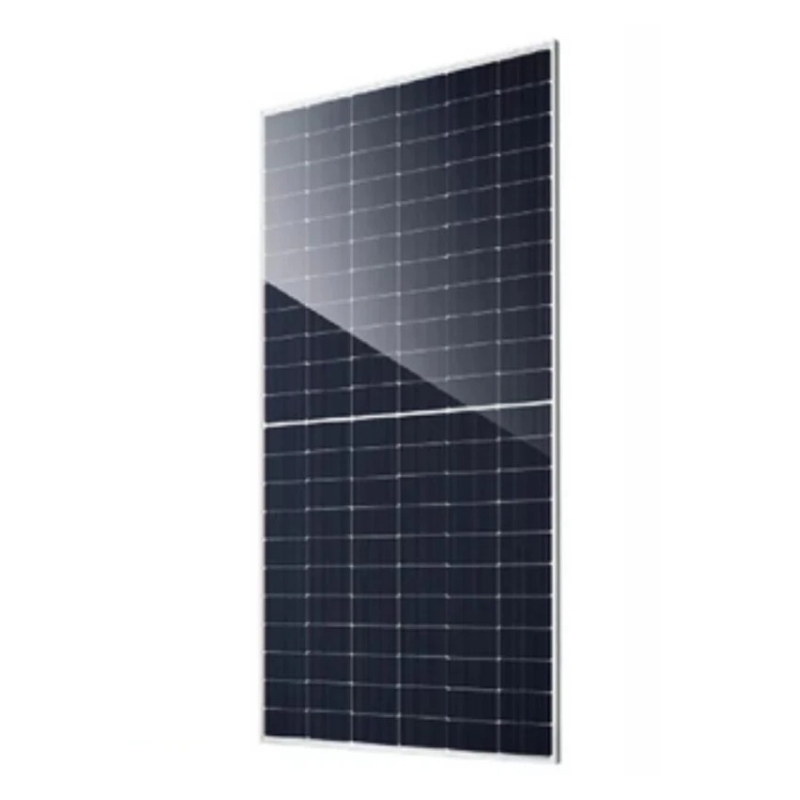

JA Solar Deep Blue 4.0 Pro N-Type Bifacial Solar Panel 610W

High-Performance Bifacial Solar Panel for South African Homes & Businesses

Imagine slashing your electricity bill while staying powered through load-shedding — the JA Solar Deep Blue 4.0 Pro makes it a reality. Engineered with next-generation n-type bifacial double-glass technology, the JA Solar Deep Blue 4.0 Pro N-Type Bifacial Solar Panel 610W delivers up to 610W of clean, reliable power from both sides of the panel, maximising every ray of South Africa's abundant sunshine.

Features

• Up to 26% Cell Conversion Efficiency: n-Bycium+ 16BB MBB Half-Cell technology squeezes more energy from every square metre — fewer panels, lower installation cost.

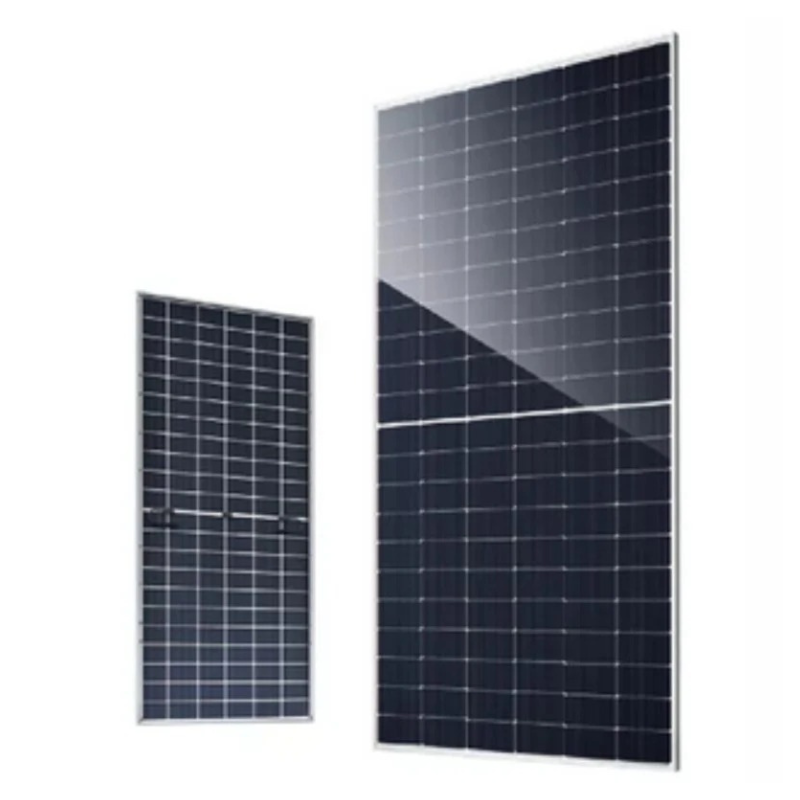

• n-Type Bifacial Double Glass: Captures reflected light from the rear surface, boosting real-world yield by up to 30% compared to standard monofacial panels.
• Very Low LID (Light-Induced Degradation): n-type cells resist initial power loss, so you generate more energy from day one.
• Better Temperature Coefficient (-0.290%/°C): Performs exceptionally well in South Africa's high-temperature conditions — less power loss on hot summer days.
• Better Low-Irradiance Response: Continues generating power on overcast Highveld or Cape winter days when standard panels underperform.
• Only 0.4% Annual Degradation Over 30 Years: Industry-leading linear performance warranty ensures long-term returns on your investment.
• 12-Year Product Warranty + 30-Year Linear Power Output Warranty: Comprehensive coverage for lasting peace of mind.
• Comprehensive Certifications: IEC 61215, IEC 61730, UL 61215, UL 61730 — fully compliant for South African grid-tied and off-grid installations.

Specifications

• Rated Maximum Power (Pmax): 610W
• Open Circuit Voltage (Voc): 52.8V
• Maximum Power Voltage (Vmp): 44.11V
• Short Circuit Current (Isc): 14.57A
• Maximum Power Current (Imp): 13.83A
• Module Efficiency: 23.1%
• Power Tolerance: 0 ~ +3%
• Temperature Coefficient (Pmax): -0.290%/°C
• Temperature Coefficient (Voc): -0.250%/°C
• Temperature Coefficient (Isc): +0.045%/°C
• STC: Irradiance 1000W/m², Cell Temperature 25°C, AM1.5G
• Cell Type: Mono (n-type)
• No. of Cells: 132 (6×22)
• Dimensions: 2382 × 1134 × 30 (±2mm)
• Weight: 32.5 kg
• Front / Back Glass: 2.0mm / 2.0mm
• Junction Box: IP68, 3 bypass diodes
• Connector: QC 4.10+351 / MC4-EVO2A
• Cable Cross Section: 4mm² (IEC), 12 AWG (UL)
• Cable Length: Portrait 300mm(+)/400mm(−) | Landscape 1500mm(+)/1500mm(−)

• Maximum System Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C
• Maximum Series Fuse Rating: 30A
• Maximum Static Load, Front: 5400Pa (112 lb/ft²)
• Maximum Static Load, Back: 2400Pa (50 lb/ft²)
• NOCT: 45 ± 2°C
• Bifaciality: 80% ± 5%
• Safety Class: Class II
• Fire Performance: UL Type 29 / Class C
• Certifications:
  • IEC 61215, IEC 61730, UL 61215, UL 61730
  • ISO 9001:2015 Quality Management Systems
  • ISO 14001:2015 Environmental Management Systems
  • ISO 45001:2018 Occupational Health & Safety Management Systems
  • IEC 62941:2019 Terrestrial Photovoltaic (PV) Modules — Quality System for PV Module Manufacturing
