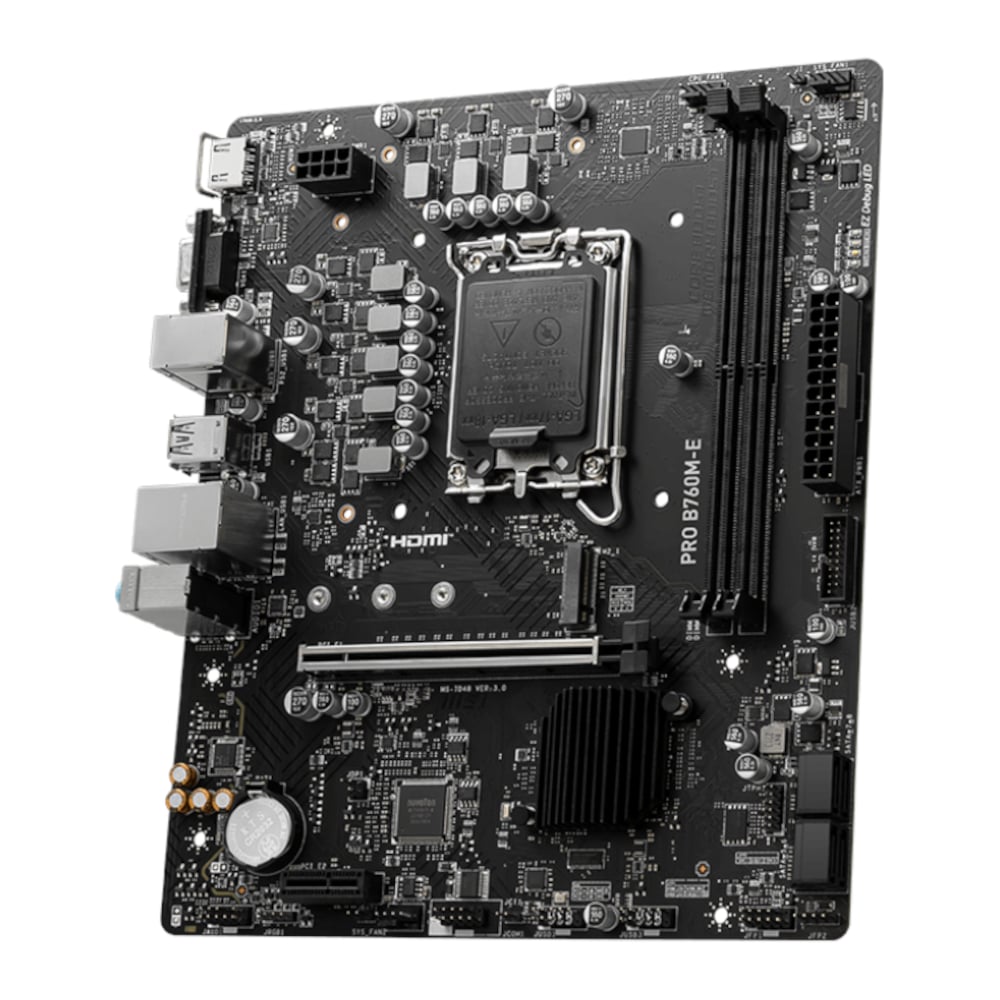

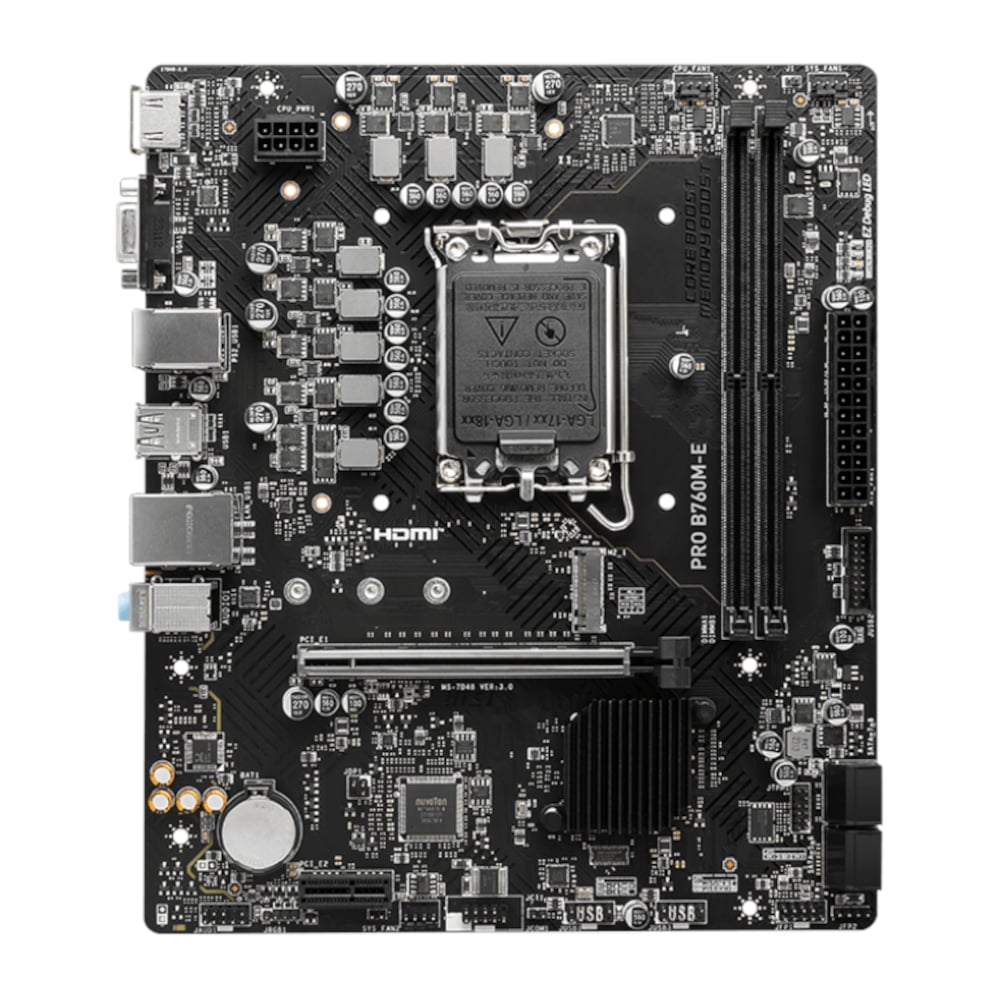

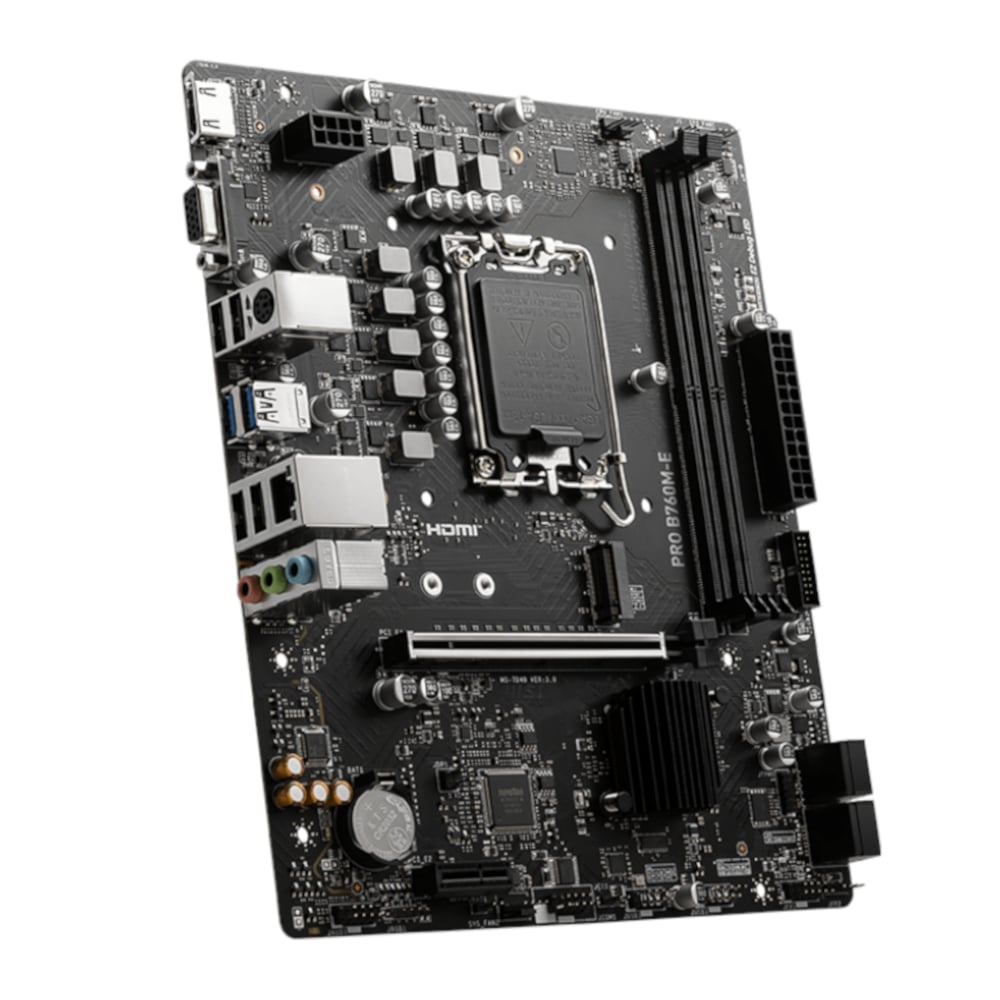

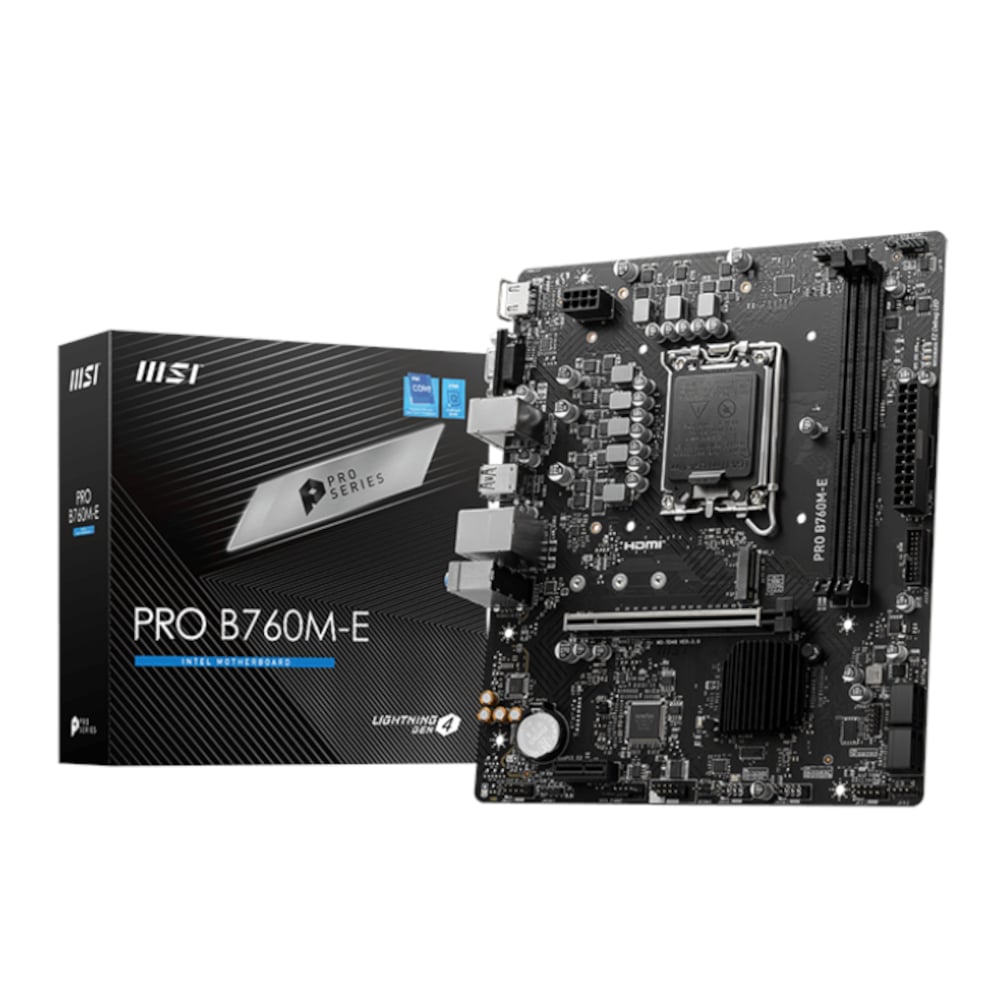

MSI B760M-E PRO DDR5 LGA1700 mATX Motherboard
MSI B760M-E PRO DDR5 LGA1700 mATX Motherboard
- Delivery: 4 - 7 working days
In stock
Couldn't load pickup availability
Share
MSI B760M-E PRO DDR5 LGA1700 mATX Motherboard is designed for professionals across all fields with impressive performance and high quality. Expect an incredible multitasking and efficiency experience with the MSI PRO Series. Manage fan speeds and temperatures for all CPU fans with ease thanks to the simplified graphical interface in both BIOS and software. Additionally, Core Boost technology ensures precise and swift current delivery to the CPU, supporting multi-core CPUs and making it perfect for overclocking. Protect your motherboard with Double ESD protection, and enjoy the latest storage standards for ultra-fast connections. With DDR5 memory and MSI Memory Boost technology, you'll have a clear advantage in terms of performance and speed.
Features
Features
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCI-E 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications
Specifications
Socket: LGA 1700
CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Chipset: Intel B760
DDR5 Memory: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 128GB
PCI-E 4.0 x16: 1
PCI-E 3.0: 1
M.2 Slot: 1
SATA 6G: 4
RAID: 0/1/5/10
LAN: Realtek® RTL8111H Gigabit LAN

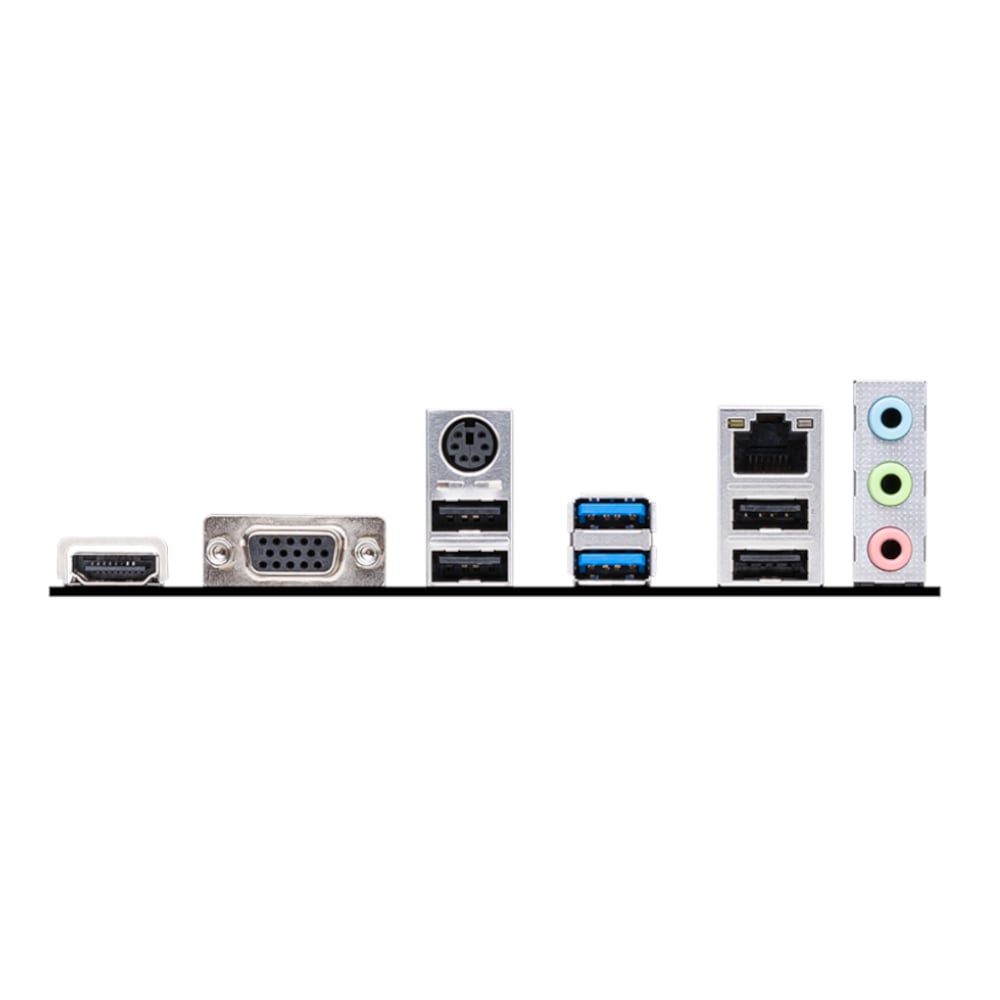

USB 3.2 ports (Front): 2(Gen 1, Type A)
USB 3.2 ports (Rear): 2(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 4
Audio ports (Rear): Realtek® ALC897 Codec
HDMI: 1
VGA: 1
DirectX: 12
Form Factor: mATX
Operating System: Support for Windows® 10 64-bit/11 64-bit
What's in the box
What's in the box
MSI B760M-E PRO DDR5 LGA1700 M-ATX Motherboard - Black x1
I/O Shield x1
M.2 Standoff Set x1
SATA Cable x1
Quick Start Guide x1
Warranty
Warranty
36 Months
