Orbit 3.7m Mist Cooling Kit

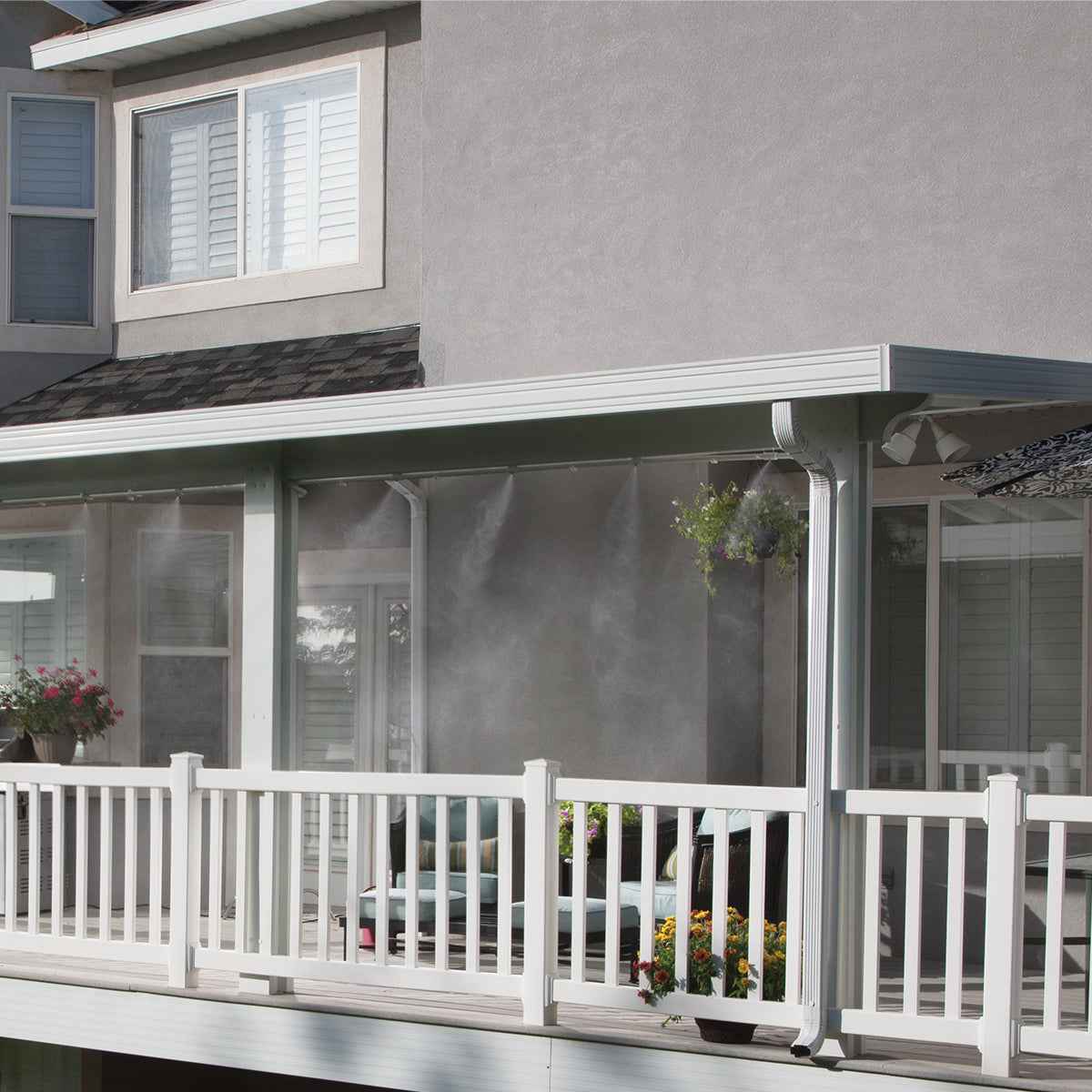

Set up your outdoor cooling system in under 60 minutes with this hose-compatible misting kit. The 3.7m line delivers temperature drops of up to 11°C, making it ideal for patios, decks, and garden spaces. Mount directly to umbrellas or existing structures for flexible placement. No complex installation required—simply connect to your standard garden hose and activate cooling on demand.

Features:

• When connected, the preassembled flexible tubing creates 3.7m (12ft) of linear mist cooling = 7.3m² (24ft²) of mist area.
• Expandable up to another 25 nozzles with appropriate pressure (3.1 bar) when using a Mist Cooling Expansion Kit. That’s another 15m (49ft) of mist cooling!
• Connects to a standard outdoor hose tap
• Reduces temperatures up to 11°C / 20°F
• UV resistant tubing
• Quick connect included
• Installs in less than an hour

• Can be attached to an umbrella


Specifications:

• Total Tube Length: 3.7m / 12ft
• Tube Diameter: 9.5mm / 3⁄8"
• Outlet Thread: NHT
• Working Water Pressure: Min 3.1-8.5 bar / 310-850 kPa / 44-123 PSI

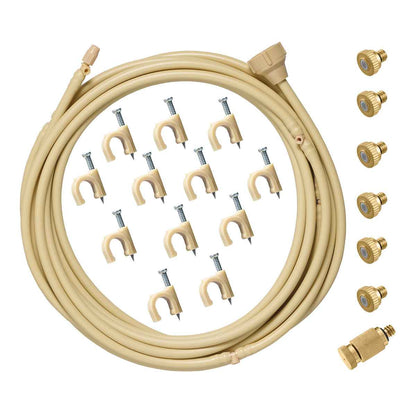

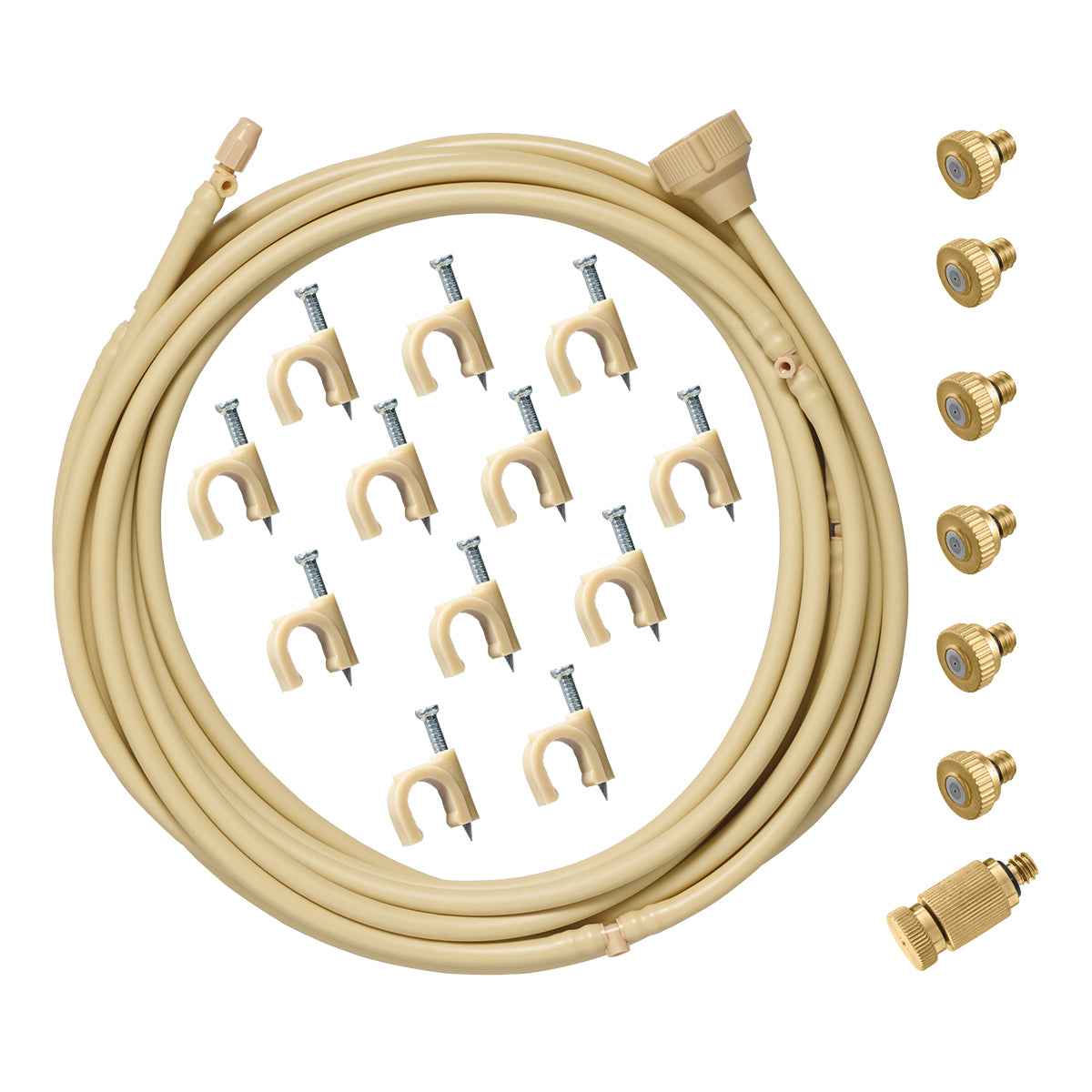

• Includes:
  • Preassembled 9.5 mm (3⁄8 in) Flexible Tubing:
  • 2.4 m (8 ft) of feed line connected to 3.7 m (12 ft) of mist line = 6m (20 ft) total
  • 6 x Brass & stainless-steel mist nozzles
  • 12 x Mounting clips
  • 1 x Automatic Drain Valve
  • 1 x Hose washer
  • 1 x Quick Connect
  • 1 x Filter (optional)
  • 1 x Preinstalled Quick Connect
