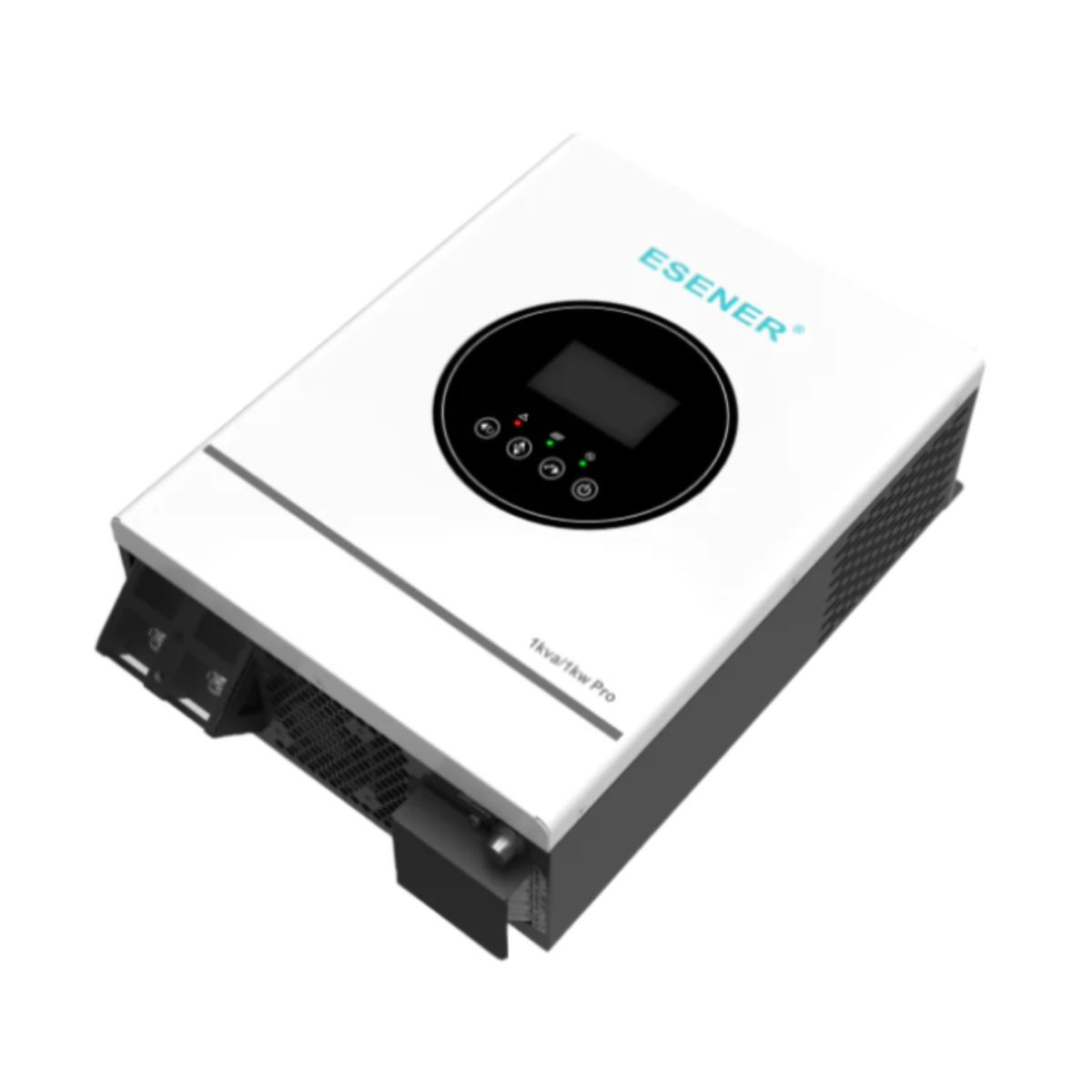

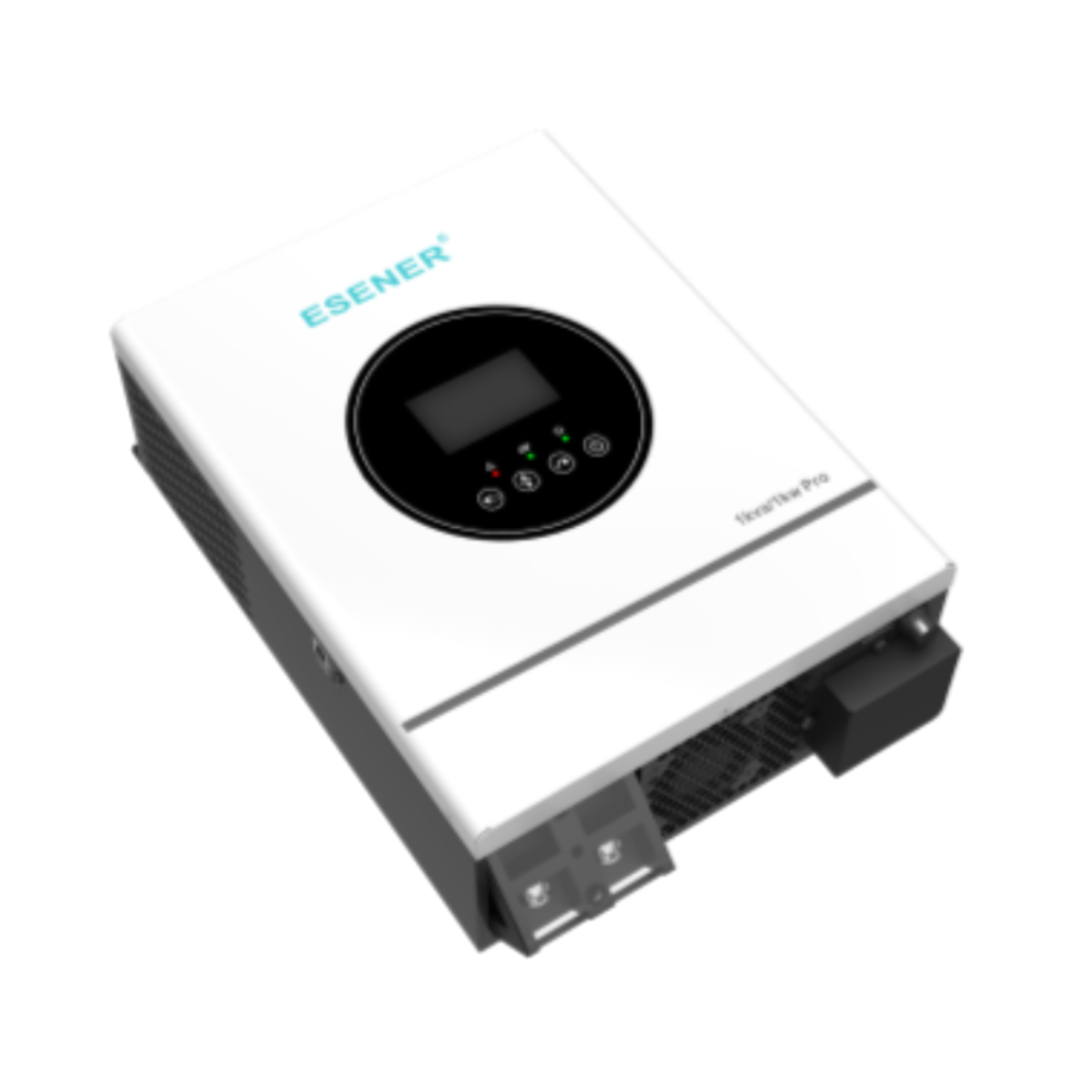

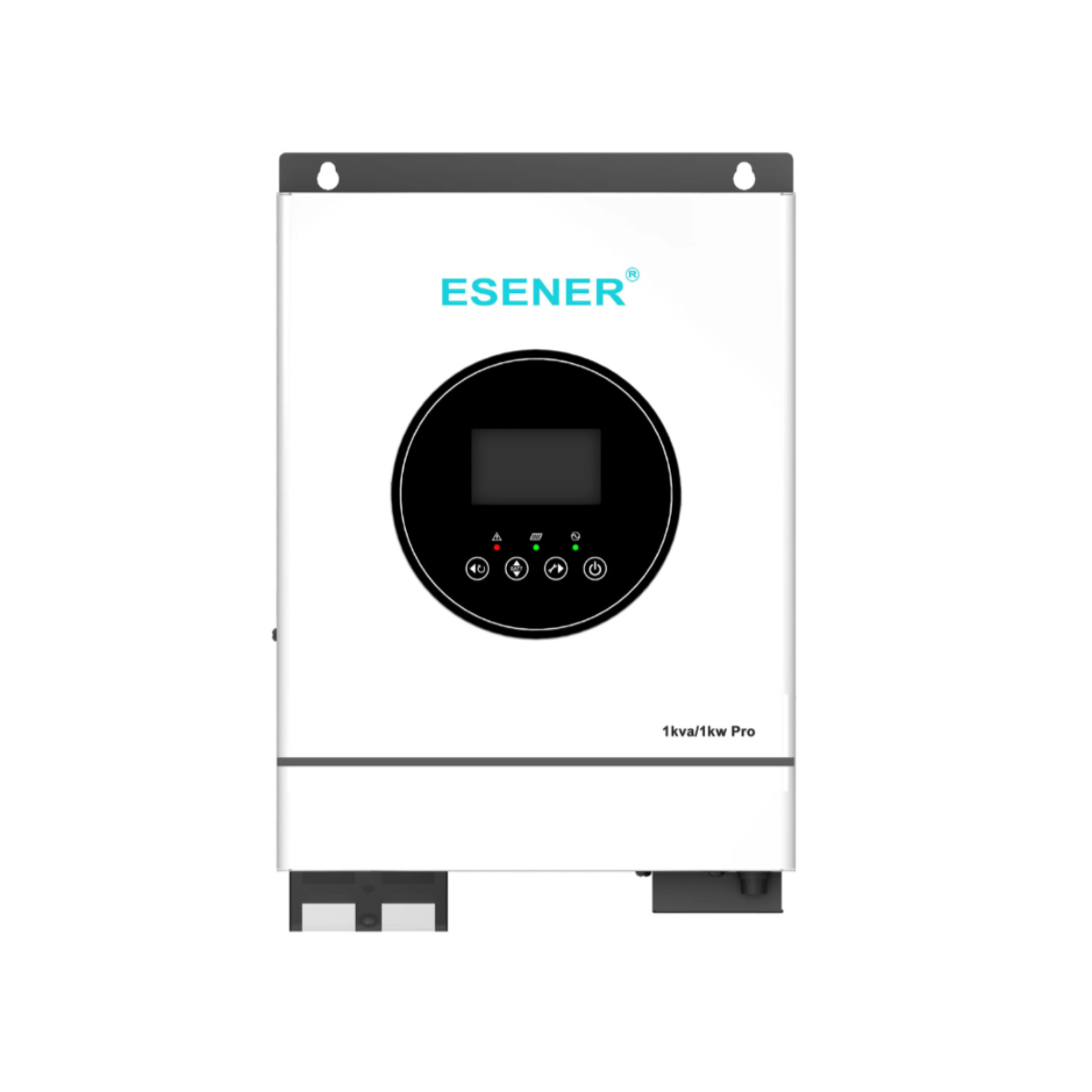

Esener 1kW Pro Inverter

Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Bult in MPPT 40A/60A solar charge controller
Combining solar system, AC utility, and battery power source to HIGH FREQUENCY SOLAR INVER supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485, CAN monitoring function
WIFI remote monitoring (optional)
Compatible to generator
PV/AC activation function
PC communication function

Default Battery System Voltage: 12V DC
Output:
Rated Power: 1000VA/1000W
Surge Power: 2000VA
Waveform: Pure Sine Wave
AC Voltage Regulation (Batt. Mode): 230V AC (setting)
Peak Efficiency: 90 - 93%
Transfer Time: 10ms (UPS/VDE4105)/20ms (APL)
Input:
Voltage: 230V AC
Selectable Voltage Range: 170~280V AC (UPS)/90~280V AC (APL)/184~253V AC (VDE)
Frequency Range: 50Hz/60Hz (auto sensing)
Battery:
Normal Voltage: 12V DC
Floating Charge Voltage: 13.8V DC
Overcharge Protection: 15V DC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 105V DC
PV Array MPPT Voltage Range: 15~75V DC
Maximum PV Array Power: 600W
Maximum Solar Charge Current: 45A
Maximum AC Charge Current: 20A
Maximum Charge Current: 65A
Communication: USB, RS-485/CAN, Wi-Fi (optional)
Humidity: 5% to 95% relative humidity (non-condensing)
Operating Temperature Range: 0°C to 50°C
Storage Temperature: -15°C to 60°C
Certification & Standards: CE-EMC+LVD(EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2)
Dimensions: 224 x 3337 x 98mm
Weight: 3.6kg

Esener 1kW Compact Hybrid Inverter

Please note: Wi-Fi Dongle sold separately.

1 year
